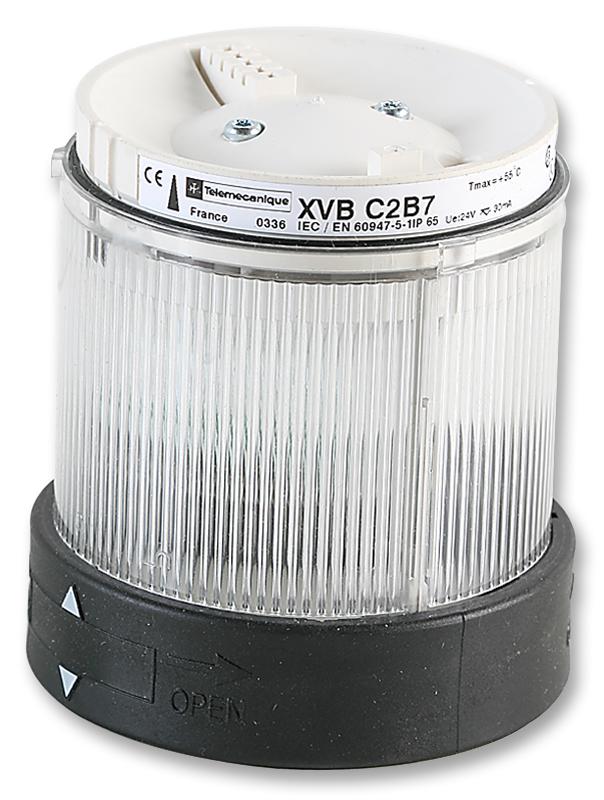

Schneider Electric XVBC2B7 Industrial Indicator Bank
The XVBC2B7 is a 70 mm diameter illuminated indicator bank designed for industrial signaling applications. Made from durable polycarbonate, it features a clear integral LED light source that provides steady illumination. The device operates on 24V AC/DC with screw clamp terminals for secure wiring. It conforms to safety and quality standards including IEC 60947-5-1, UL 508, and CSA C22-2 No 14, and offers an IP65/IP66 protection rating for robust outdoor or indoor use. Compact and easy to install, it is suitable for assemblies up to five units with high environmental resistance.
Schneider Electric XVBC2B7 Industrial Indicator Bank Specifications:
- Diameter: 70mm
- Material: Polycarbonate
- Light source: Clear integral LED, protected bulb type
- Rated supply voltage: 24V AC/DC
- Current consumption: < 47 mA
- Insulation voltage: 250 V conforming to IEC 60947-1
- Rated impulse withstand voltage: 4 kV
- Protection degree: IP65 on fixing base, IP66 on base unit
- NEMA protection: 4X
- Ambient temperature for operation: -25°C to +50°C
- Temperature for storage: -40°C to +70°C
- Environmental pollution degree: 2
- Certifications: GOST, UL 508, CSA, IEC 60947-5-1
- Assembly style: Customer assembly, up to 5 units
- Dimensions: Width and height 70mm, depth 70mm
- Weight: 0.15 kg
- Electrical safety: Class II protection
- Warranty period: 18 months
Buy the Buy Harmony XVB Indicator Bank Part Number XVBC2B7 Online
Order the Harmony XVBC2B7 indicator bank online today for robust industrial signaling. It features a durable polycarbonate housing, steady LED illumination, and conforms to major safety standards. Perfect for easy installation in control panels, it offers IP65/IP66 protection for outdoor and indoor environments. With a compact 70mm diameter, the indicator bank supports up to five units, making it ideal for complex signaling setups. Ensure your system’s safety and efficiency by purchasing this reliable indicator device through our secure online platform.
Buy Harmony XVBC2B7 indicator bank now and ensure reliable signaling with durable polycarbonate construction and simple installation features.
Frequently Asked Questions
Where can I buy Schneider Electric XVBC2B7?
You can click on the BUY or RFQ button to purchase XVBC2B7 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XVBC2B7?
You can download the XVBC2B7 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XVBC2B7?
Schneider Electric
