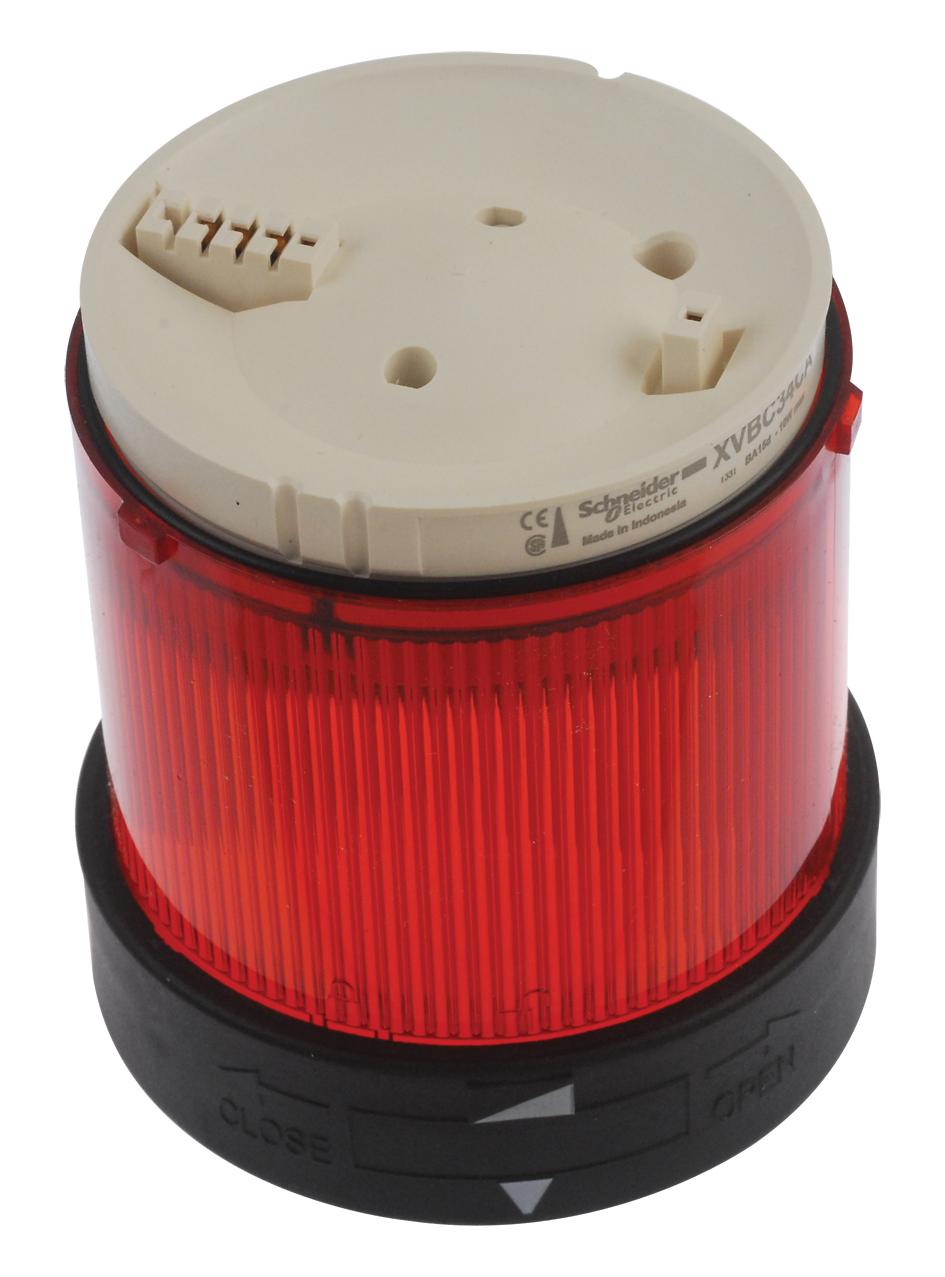

Schneider Electric XVBC34 Industrial Signaling Indicator
This signal indicator bank is a versatile, durable visual alert system designed for industrial environments. With IP65 protection, it withstands harsh conditions. The unit features a red incandescent bulb (not included) with a steady light signaling that offers 360° visibility. It has screw clamp terminals, operates up to 250V AC/DC, and is constructed with polycarbonate for impact resistance. Suitable for control panels and machinery, it mounts easily with a 70mm diameter, making it ideal for signaling operational status, faults, or alerts in various industrial applications. The product complies with relevant standards including IEC 60947-5-1 and UL certifications.
Schneider Electric XVBC34 Industrial Signaling Indicator Specifications:
- Diameter: 70mm (2.76 inches)
- Height: 63mm (2.48 inches)
- Material: Polycarbonate
- Light source: Incandescent bulb not included, red
- Bulb type: BA 15d
- Power: Up to 7W, 250 VAC/DC rated voltage
- Terminals: Screw clamp, <= 1.5 mm² cable end
- Ingress Protection: IP65 on fixing base, IP66 on base unit
- Environmental temperature (operation): -25 °C to +50 °C; (LED): -25 °C to +70 °C
- Pollution degree: 2
- Certifications: UL 508, CSA C22-2 No 14, GOST
- Standards: IEC 60947-5-1
- Insulation voltage: 250 V
- Impulse withstand voltage: 4kV
- Mounting diameter: 70mm
- NEMA protection: NEMA 4X
- Assembly style: Customer assembly, up to 5 units
- Maximum power dissipation: 7W
Buy the Schneider Electric Series Harmony XVB Signal Indicator: XVBC34
Order the Schneider Electric XVBC34 signal indicator bank online today to enhance operational safety and visibility in industrial settings. Its IP65 rating ensures protection against dust and water, making it suitable for harsh environments. With a compact 70mm diameter and steady red illumination, it provides clear, 360-degree visibility from a safe distance. Easy to install with screw clamp terminals, it supports control panels and machinery alert systems. Reliable and certified for quality, the XVBC34 is your solution for effective industrial signaling and fault indication, ensuring continuous operational safety.
Get Schneider Electric XVBC34 today—built for reliable visual signaling and durable industrial operation.
Frequently Asked Questions
Where can I buy Schneider Electric XVBC34?
You can click on the BUY or RFQ button to purchase XVBC34 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XVBC34?
You can download the XVBC34 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XVBC34?
Schneider Electric
