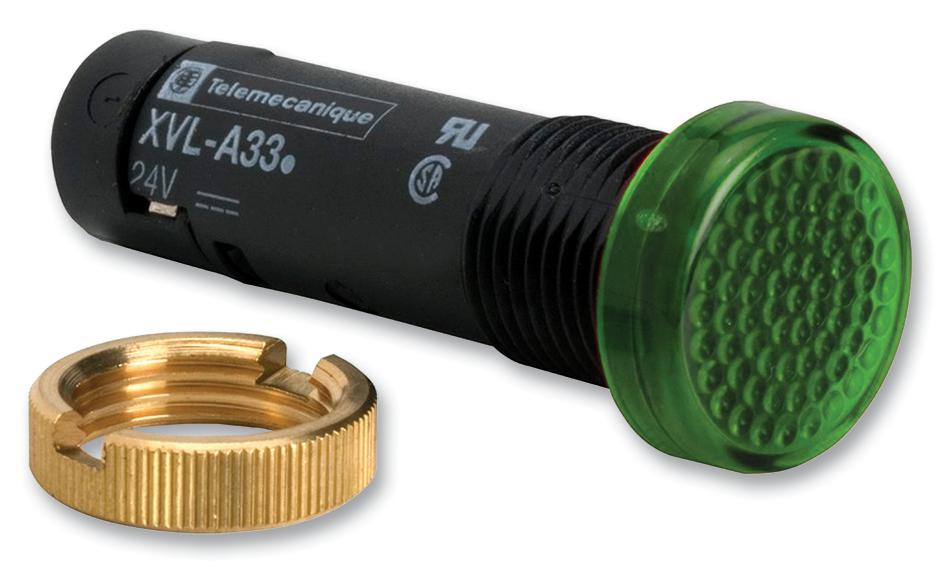

Schneider Electric XVLA333 LED Indicator Pilot Light
The XVLA333 is a green panel-mount LED indicator pilot light featuring an integral lens cap. It is suitable for DC supply circuits and operates within a temperature range of -25°C to 70°C. This indicator is ideal for industrial signaling applications, providing reliable visual indication in various environments.
Schneider Electric XVLA333 LED Indicator Pilot Light Specifications:
- Mounting diameter: 12 mm (0.47 in)
- Light source: Covered LED, Green
- Protection type: IP65 with seal XVLZ912
- Rated voltage: 24 VDC
- Current consumption: 18 mA
- Bulb lifespan: 100,000 hours
- Height: 16 mm (0.63 in)
- Width: 16 mm (0.63 in)
- Depth: 51 mm (2.01 in)
- Cable connection: Threaded connector, clamping capacity 1 x 0.2...1 x 1.5 mm²
- Operating temperature: -25°C to 70°C
- Storage temperature: -40°C to 70°C
- Protection rating: IP65 (with seal), IP40 (without seal)
- Certification: CSA, UL
- Material: Plastic, UV resistant
Buy the Buy Schneider Electric LED Indicator Part Number XVLA333 Online
Discover the Schneider Electric LED Indicator Pilot Light, model XVLA333, a reliable panel-mounted indicator with green illumination, IP65 rated for dust and water resistance. Its compact size fits standard panels with a 12mm mounting diameter, suitable for industrial control panels. Designed with a long-lasting LED bulb lifespan of 100,000 hours, it assures minimal maintenance and high visibility in harsh environments. Perfect for signaling applications in automation and control systems, this pilot light combines durability, efficiency, and easy installation for industrial professionals.
Buy Schneider Electric XVLA333 now and ensure reliable visual signaling with durable LED indicator designed for industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric XVLA333?
You can click on the BUY or RFQ button to purchase XVLA333 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XVLA333?
You can download the XVLA333 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XVLA333?
Schneider Electric
