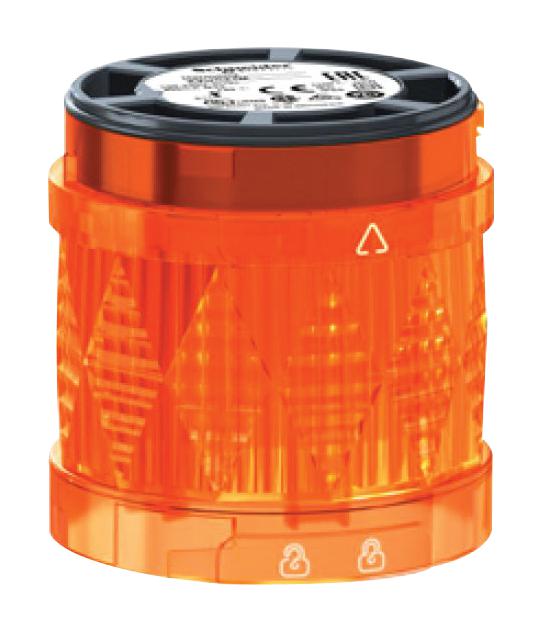

Schneider Electric XVUC45 Modular LED Indicator
The XVUC45 is an orange illuminated LED indicator unit designed for modular tower lights, featuring blinking signaling, IP65 protection, and a 24 V AC/DC supply. Made from V-2 and V-0 rated polycarbonate (PC), it is suitable for automation, automotive, and machinery applications. The unit measures 2.36 inches in diameter and 1.97 inches in length, with a power dissipation of 0.9W. Certified by UL, CE, and CSA, it withstands environmental factors like vibration and temperature extremes, ensuring reliable operation in industrial settings.
Schneider Electric XVUC45 Modular LED Indicator Specifications:
- Light source: LED, orange
- Signaling type: Blinking
- Mounting diameter: 2.36 in (60 mm)
- Length: 1.97 in (50 mm)
- Power dissipation: 0.9W
- Material: PC (polycarbonate), V-2 and V-0 UL 94
- Supply voltage: 24 V AC/DC
- Protection rating: IP65
- Vibration resistance: 2gn
- Operating temperature: -13°F to 122°F (-25°C to 50°C)
- Certified: UL, CE, CSA, RoHS
- Weight: 0.14 lb (0.064 kg)
- Packaging: 1 unit per package, package weight 0.32 lb (0.15 kg)
- Dimensions: Diameter 2.36 in, Length 1.97 in
- Application: Automotive, machine tools, packaging machinery, signaling in industrial environments
Buy the Buy Schneider Electric XVUC45 Part Number XVUC45 Online
Enhance your industrial signaling with the Schneider Electric XVUC45 modular LED indicator. This orange blinking LED unit features IP65 protection, ensuring durable operation in demanding environments. Suitable for automotives, machine tools, and packaging machines, it operates at 24 V AC/DC and is certified for UL, CE, and CSA standards. Easy to install, it offers reliable blinking signaling with a low power dissipation of 0.9W. Order online now to improve your process safety and visual indication in industrial applications.
Buy Schneider Electric XVUC45 now and experience unmatched reliability and performance with durable, IP65-rated modular LED indicator units.
Frequently Asked Questions
Where can I buy Schneider Electric XVUC45?
You can click on the BUY or RFQ button to purchase XVUC45 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XVUC45?
You can download the XVUC45 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XVUC45?
Schneider Electric
