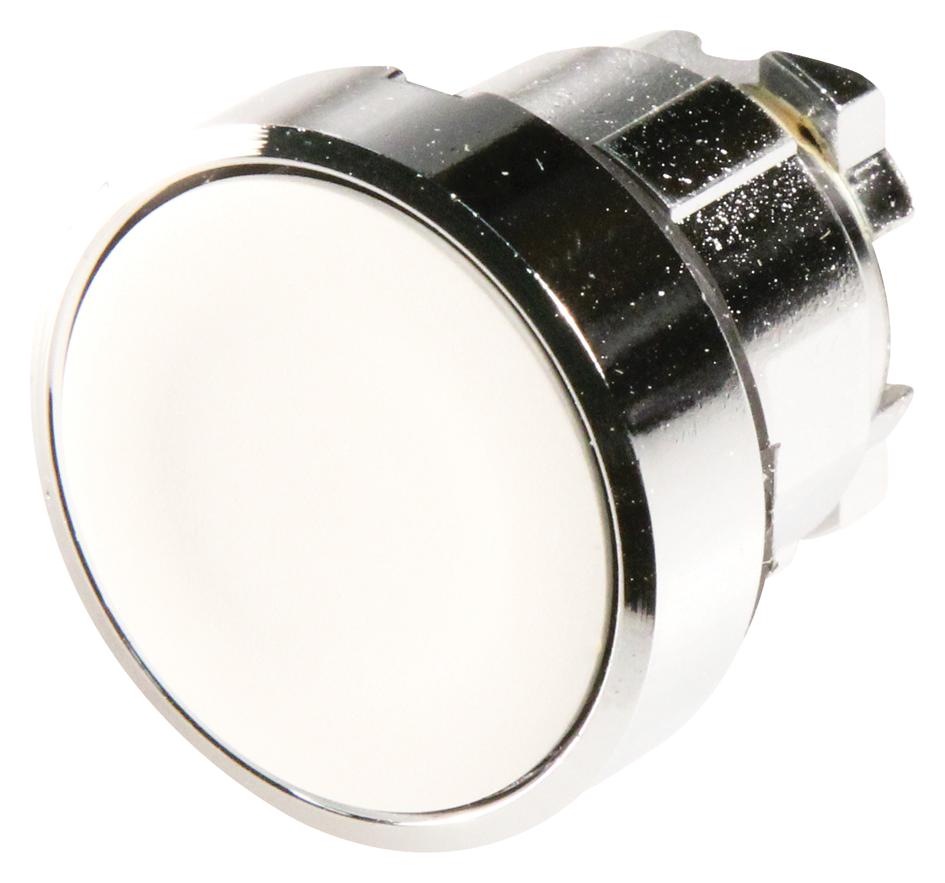

Schneider Electric ZB4BA1 Pushbutton head metal
The ZB4BA1 is a non-illuminated pushbutton head featuring a chromium-plated metal bezel and a white, flush, unmarked spring return operator. Designed for the Harmony XB4 series, this round signaling unit offers an IP66 protection rating, TH protective treatment, IK03 protection rating, and is resistant to vibrations up to 5g. It is capable of enduring approximately 10 million mechanical cycles and is suitable for industrial, automotive, and commercial applications requiring durable momentary pushbuttons with metal construction and corrosion resistance.
Schneider Electric ZB4BA1 Pushbutton head metal Specifications:
- Mounting diameter: 22 mm (0.87 in)
- Bezel material: Chromium plated metal
- Overall dimensions: Width 1.14 in (29 mm), Height 1.14 in (29 mm), Depth 1.10 in (28 mm)
- Mechanical durability: 10,000,000 cycles
- Ingress Protection: IP66, IP67, IP69, IP69K
- Protection ratings: NEMA 13, NEMA 4X
- Impact resistance: IK03
- Vibration resistance: 5 gn (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Ambient temperature for operation and storage: -40°F to +158°F (-40°C to +70°C)
- Standards compliance: EN/IEC 60947-1, EN/IEC 60947-5-4, UL 508, CSA, JIS C8201-5-1
- Certifications: UL Listed, CSA, RINA, Lloyds Register, DNV, BV, GL
- Protection class: TH protective treatment
Buy the Schneider Electric Series Harmony XB4 Push Button: ZB4BA1
Purchase the Schneider Electric ZB4BA1 now online and ensure your automation system features a durable, corrosion-resistant pushbutton with a metal bezel and a spring return. This non-illuminated round pushbutton offers a robust design with an IP66 rating for excellent protection against dust and water, suitable for industrial environments. With a lifecycle of 10 million cycles, this high-quality component ensures long-term durability in demanding applications. Order now to enhance your control panels with proven Schneider reliability.
Buy Schneider Electric ZB4BA1 now and experience unmatched reliability and performance in industrial control and automation applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA1?
You can click on the BUY or RFQ button to purchase ZB4BA1 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA1?
You can download the ZB4BA1 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA1?
Schneider Electric
