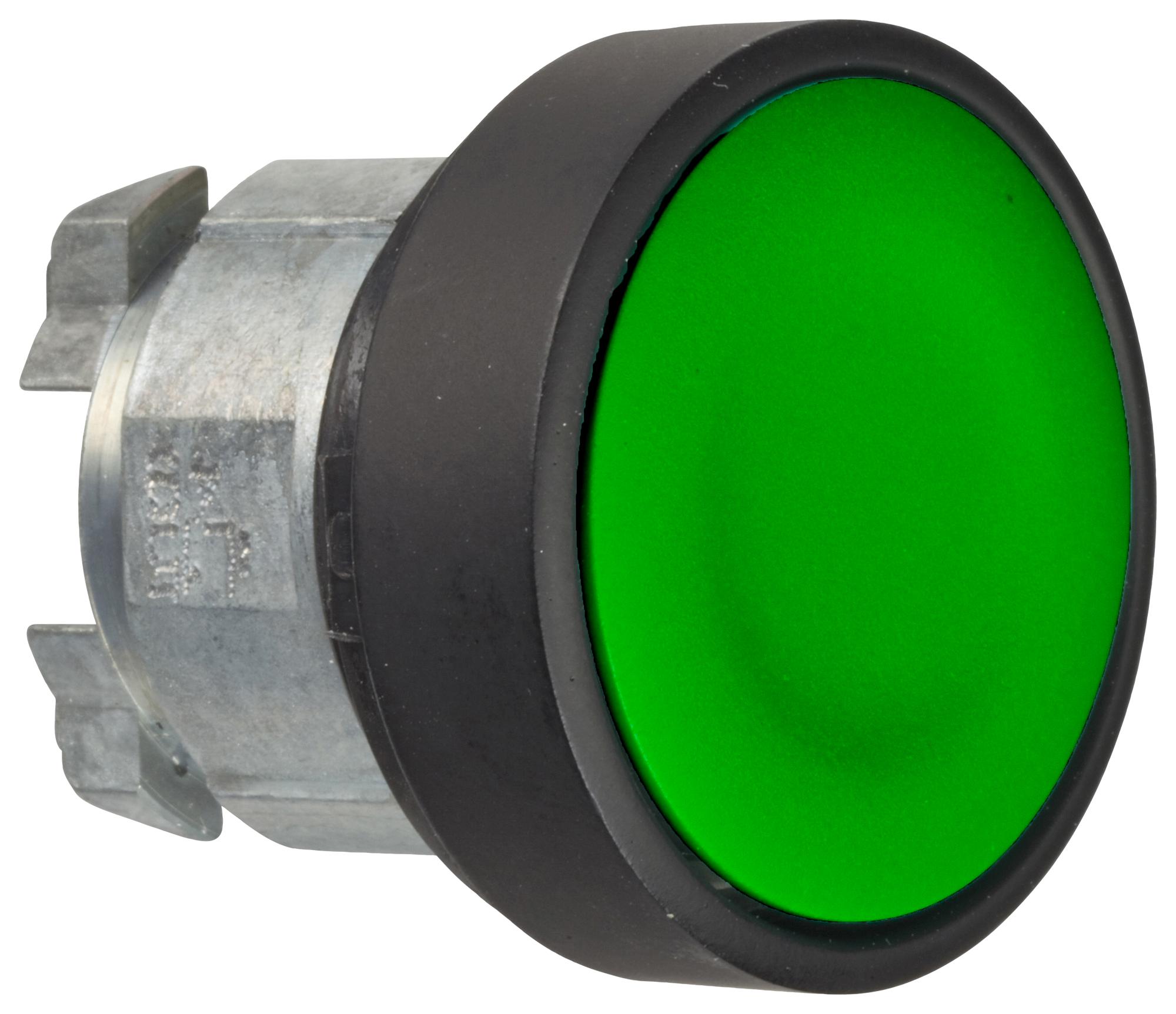

Schneider Electric ZB4BA37 Pushbutton Head
The green flush pushbutton head ZB4BA37 is designed for industrial control panels, featuring a durable plastic and metal construction with a 22mm mounting diameter. It boasts a round shape with a spring return operator profile, suitable for non-illuminated applications. The device withstands up to 10 million mechanical cycles, offers IP66/IP67/IP69 protection degrees, and conforms to IEC 60947 standards. Its compact design includes panel cut-outs of 30mm and mounting clearance of 40mm, making it ideal for automation and control systems requiring reliable operation under harsh conditions.
Schneider Electric ZB4BA37 Pushbutton Head Specifications:
- Material: Black metal bezel, plastic operator
- Shape: Round
- Mounting diameter: 22 mm
- Overall width: 29 mm
- Overall height: 29 mm
- Overall depth: 28 mm
- Mechanical durability: 10 million cycles
- Protection degrees: IP66, IP67, IP69
- Certifications: CSA, UL, BV, GL, DNV, RINA, Lloyds
- Electrical composition code: C15 (1 N/O contact)
- Standards: IEC 60947-5-1, IEC 60947-1, IEC 60947-5-5, IEC 60068-2-6, IEC 60068-2-27, JIS C 4520
- Ambient temperature for storage and operation: -40 to 70°C
- Vibration resistance: 5 gn; Shock resistance: 30-50 gn
- Connection: Screw clamp, plug-in connectors, or Faston connectors
- Panel cut-out: 22.4 mm diameter, minimum thickness 1.6 mm
- Mounting centers: 90 mm x 120 mm spacing for accessories
Buy the Schneider ZB4BA37 – Reliable Pushbutton for Industrial Applications
Enhance your automation setup with the durable ZB4BA37 pushbutton head. Designed for industrial environments, this round, non-illuminated pushbutton features a spring return operator, IP66/IP67/IP69 protection, and withstands up to 10 million cycles. Easy to install with 22mm mounting diameter, it’s perfect for control panels requiring reliable, long-lasting operation. Elevate your machinery with this robust and compact component, available now for quick online purchase, ensuring seamless integration into your control and automation systems.
Buy Schneider ZB4BA37 now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA37?
You can click on the BUY or RFQ button to purchase ZB4BA37 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA37?
You can download the ZB4BA37 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA37?
Schneider Electric
