Schneider Electric ZB4BA434 Industrial Pushbutton

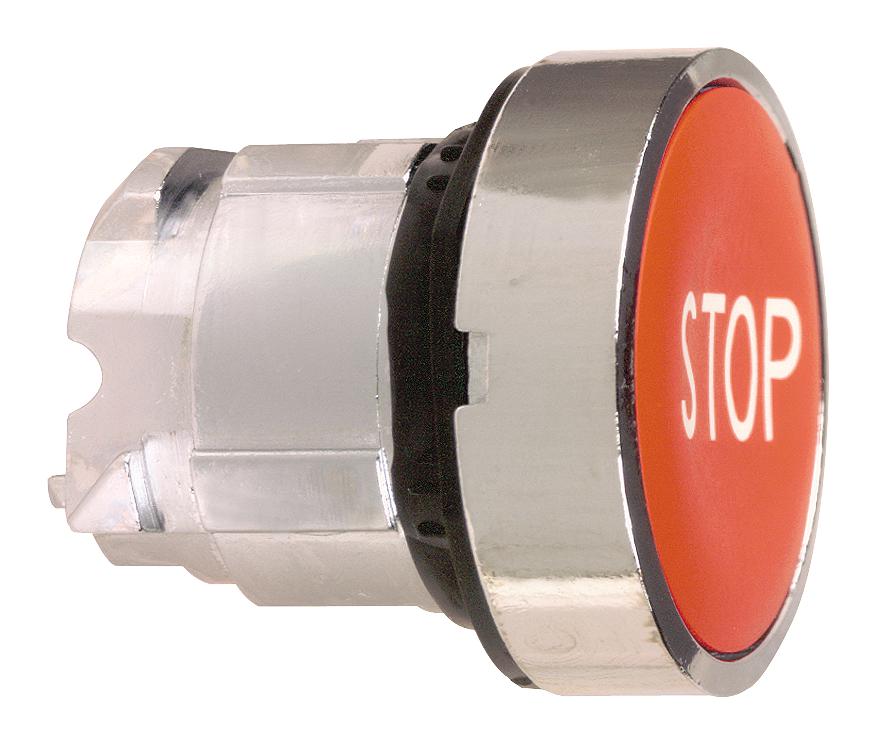

The ZB4BA434 is a non-illuminated round pushbutton head with a red flush profile and white STOP marking, designed for industrial control applications. It features a chromium-plated metal bezel, mounting diameter of 22mm, and mechanical durability of 10 million cycles. Suitable for harsh environments, it has an IP69 and IP66/IP67 protection rating, and conforms to IEC and UL standards. Electrical connections are via screw clamp or plug-in connectors, with certifications including UL, CSA, and Lloyds Register. This robust control component ensures reliable operation in demanding industrial settings.
Schneider Electric ZB4BA434 Industrial Pushbutton Specifications:
- Mounting diameter: 22 mm
- Shape of signaling unit head: Round
- Bezel material: Chromium plated metal
- Operator profile: Red flush, white STOP
- Mechanical durability: 10,000,000 cycles
- Protection ratings: IP69, IP66, IP67, NEMA 13, NEMA 4X
- Standard compliances: EN/IEC 60947-5-1, UL 508, JIS C 4520
- Electrical composition codes: C1, C2, C11, C15
- Vibration resistance: 5 gn; Shock resistance: 30 gn / 50 gn
- Operating temperature: -40°C to 70°C
- Mounting and clearance: Panel cut-out 22mm ±0.1mm, minimum panel thickness 1.6mm
- Connection: Screw clamp terminals or plug-in connectors
- Protection class: IP69, IP66, IP67
- Certifications: UL listed, CSA, Lloyds
- Product certifications: UL, RINA, GL, BV, DNV, Lloyds Register
Buy the Schneider Series XB4 Pushbutton: ZB4BA434
Enhance your control panel with the Schneider ZB4BA434 pushbutton, offering a durable, reliable design with a metal bezel, IP69 protection, and a high mechanical lifespan of 10 million cycles. Perfect for harsh environments, it features a red flush head with a white STOP mark, ensuring safety and visibility. Easy to install with panel cut-outs of 22mm, connection via screw clamp or plug-in connectors, and certification for international standards. Shop now to upgrade your automation system with this high-quality control component.
Get Schneider ZB4BA434 today—built for durability and reliable industrial control operations.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA434?
You can click on the BUY or RFQ button to purchase ZB4BA434 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA434?
You can download the ZB4BA434 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA434?
Schneider Electric
