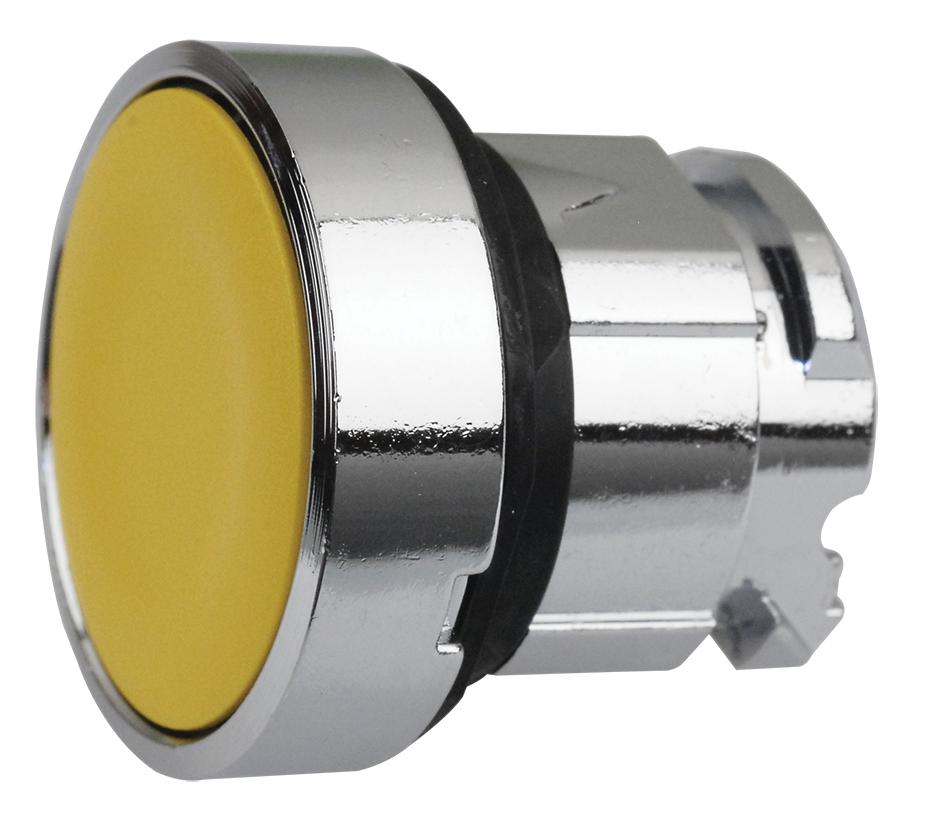

Schneider Electric ZB4BA5 Pushbutton Head
The ZB4BA5 is a 22mm yellow flush-mounted pushbutton head designed for use with the XB4 series momentary, non-illuminated pushbutton switches. It features a chromium-plated metal bezel and a spring return operation. This round-shaped signaling unit has an IP66 protection rating and is suitable for ambient temperatures ranging from -25°C to 70°C. Ideal for commercial applications, it offers durability with a mechanical lifespan of 10 million cycles. The device supports screw clamp, plug-in, and PCB connections, making it versatile for various industrial control systems.
Schneider Electric ZB4BA5 Pushbutton Head Specifications:
- Mounting diameter: 22 mm (0.87 in)
- Bezel material: Chromium plated metal
- Shape: Round
- Head type: Standard
- Color: Yellow
- Operation: Spring return
- Mechanical durability: 10,000,000 cycles
- Protection ratings: IP66, IP67, IP69/IP69K
- Ambient temperature for operation: -40 to 70°C (-40 to 158°F)
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Connection options: Screw clamp terminals, plug-in connectors, PCB connections
- Certifications: UL 508, IEC 60947-5-1, CSA C22.2 No 14, Lloyds Register, DNV, RINA
- NEMA Ratings: 13, 4X
- Protection class: IP66, IP67, IP69, IP69K
- Standards compliance: IEC, UL, CSA, JIS
- Environmental: RoHS, REACh compliant, toxic heavy metal free, mercury free
- Warranty: 18 months
Buy the Schneider Series XB4 Push Button: ZB4BA5
Enhance your control panel with the Schneider ZB4BA5 pushbutton head, designed for durability and reliable operation. This 22mm yellow flush-mounted device features a metal bezel, spring return mechanism, and IP66 protection rating, ensuring long-lasting performance in demanding environments. Suitable for various mounting options including screw clamp and PCB connections, it supports extensive compliance standards such as IEC, UL, and CSA. An ideal choice for industrial automation, control cabinets, and machinery requiring durable, high-quality pushbutton components. Order online now to upgrade your control solutions effortlessly.
Get Schneider ZB4BA5 today—built for durability, versatility, and reliable industrial control applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA5?
You can click on the BUY or RFQ button to purchase ZB4BA5 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA5?
You can download the ZB4BA5 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA5?
Schneider Electric
