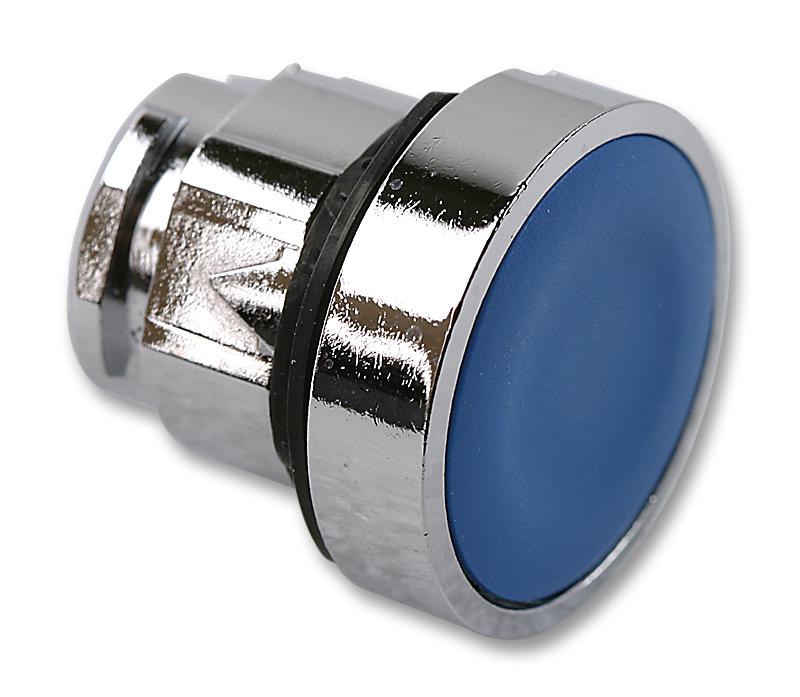

Schneider Electric ZB4BA6 Control Pushbutton
The ZB4BA6 is a blue flush pushbutton head designed for industrial control panels and automation systems. It features a round shape with a 22mm mounting diameter, high durability of 5 million cycles, and conforms to IP66 and NEMA 4X/13 protection standards. The pushbutton is non-illuminated with a spring return operator profile, suitable for demanding environments with temperature ranges from -40°C to 70°C. Its robust chromium-plated metal bezel enhances corrosion resistance, making it ideal for various control applications. Certified by UL, CSA, and other standards, it ensures safety and reliability in industrial setups.
Schneider Electric ZB4BA6 Control Pushbutton Specifications:
- Bezel material: Chromium plated metal
- Mounting diameter: 22 mm
- Shape: Round
- Operator profile: Spring return
- Color: Blue, unmarked
- Mechanical durability: 5,000,000 cycles
- Protection IP: IP66 conforming to IEC 60529
- Protection NEMA: 4X and 13
- Temperature range: -40°C to 70°C (storage and operation)
- Electrical composition code: C15 for 1 contact, C11 for ≤ 3 contacts, C2/C1 for ≤ 9 contacts
- Standards: IEC, UL, CSA, JIS, and others
- Vibration resistance: 5 gn (2-500Hz)
- Shock resistance: 50 gn for 11 ms, 30 gn for 18 ms
- Certifications: UL listed, BV, DNV, GL, Lloyd’s Register, RINA
- Tightening torque: 0.6 N·m
- Ambient air temperature: -25°C to 70°C (operation), -40°C to 70°C (storage)
Buy the Schneider Electric ZB4BA6 – Reliable Control Button for Industrial Applications
Enhance your control systems with the Schneider Electric ZB4BA6 pushbutton, a robust, blue round device with a 22mm mounting diameter. It features high durability of 5 million cycles, IP66 and NEMA 4X/13 protection standards, and is suited for demanding industrial environments. With a spring return operator profile and conforming to multiple safety standards, this non-illuminated pushbutton guarantees reliable operation in temperature ranges from -40°C to 70°C. Perfect for automation, machinery control, and panel applications, it ensures safety, longevity, and ease of installation.
Order your Schneider Electric ZB4BA6 pushbutton today and enhance your control panel reliability with this durable, industrial-grade switch.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA6?
You can click on the BUY or RFQ button to purchase ZB4BA6 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA6?
You can download the ZB4BA6 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA6?
Schneider Electric
