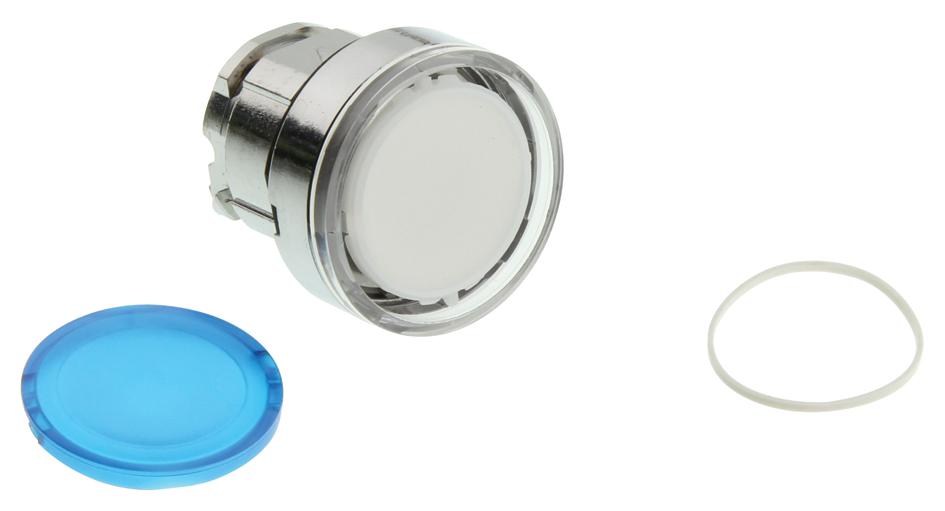

Schneider Electric ZB4BA68 Industrial Pushbutton Switch
The ZB4BA68 is a blue flush illuminated pushbutton head with a 22mm mounting diameter, designed for industrial control panels. It features a round shape with a spring return operator profile, suitable for insertion of legends and integrated LED compatibility. Durable and resistant to high-pressure washing at 7,000,000 Pa, it is rated IP69 and IP67 for protection against environmental elements. The component supports various electrical configurations, including single and double contacts, and is certified by UL, CSA, Lloyds, and others, ensuring reliability in demanding environments.
Schneider Electric ZB4BA68 Industrial Pushbutton Switch Specifications:
- Mounting diameter: 22mm
- Overall width: 29mm
- Overall height: 29mm
- Overall depth: 30mm
- Bezel material: Chromium plated metal
- Protection rating: IP69, IP67, IP66, IP69K
- Vibration resistance: 5 gn (2...500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Temperature range: -40°C to +70°C
- Mechanical durability: 10,000,000 cycles
- Electrical composition codes: C3, C4, C14, M1, M2, M10, M6
- Compliance: UL 508, IEC 60947-1, JIS C 4520, CSA C22.2 No 14
- Certifications: UL listed, CSA, Lloyds, DNV, BV, RINA
- Protection against high pressure washer: 7,000,000 Pa at 55°C
- Installation: Panel cut-out 22mm, minimum thickness 1.6mm
- Connection: Screw clamp terminals, plug-in connectors, Faston connectors
Buy the Harmony XB4 ZB4BA68 – Reliable Switch for Industrial Applications
Purchase the Harmony XB4 ZB4BA68 now for reliable operation in industrial control systems. Featuring a durable chromium-plated bezel, IP69/IP67 protection, and compatible with integral LED, this pushbutton switch ensures long-lasting performance. Ideal for panel mounting with a 22mm diameter, it withstands high-pressure washing and extensive cycle use. Whether for automation, machinery, or process control, this switch offers seamless installation, robust electrical configurations, and certified quality, making it the perfect choice for demanding industrial applications.
Get Harmony XB4 ZB4BA68 today—built for durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BA68?
You can click on the BUY or RFQ button to purchase ZB4BA68 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BA68?
You can download the ZB4BA68 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BA68?
Schneider Electric
