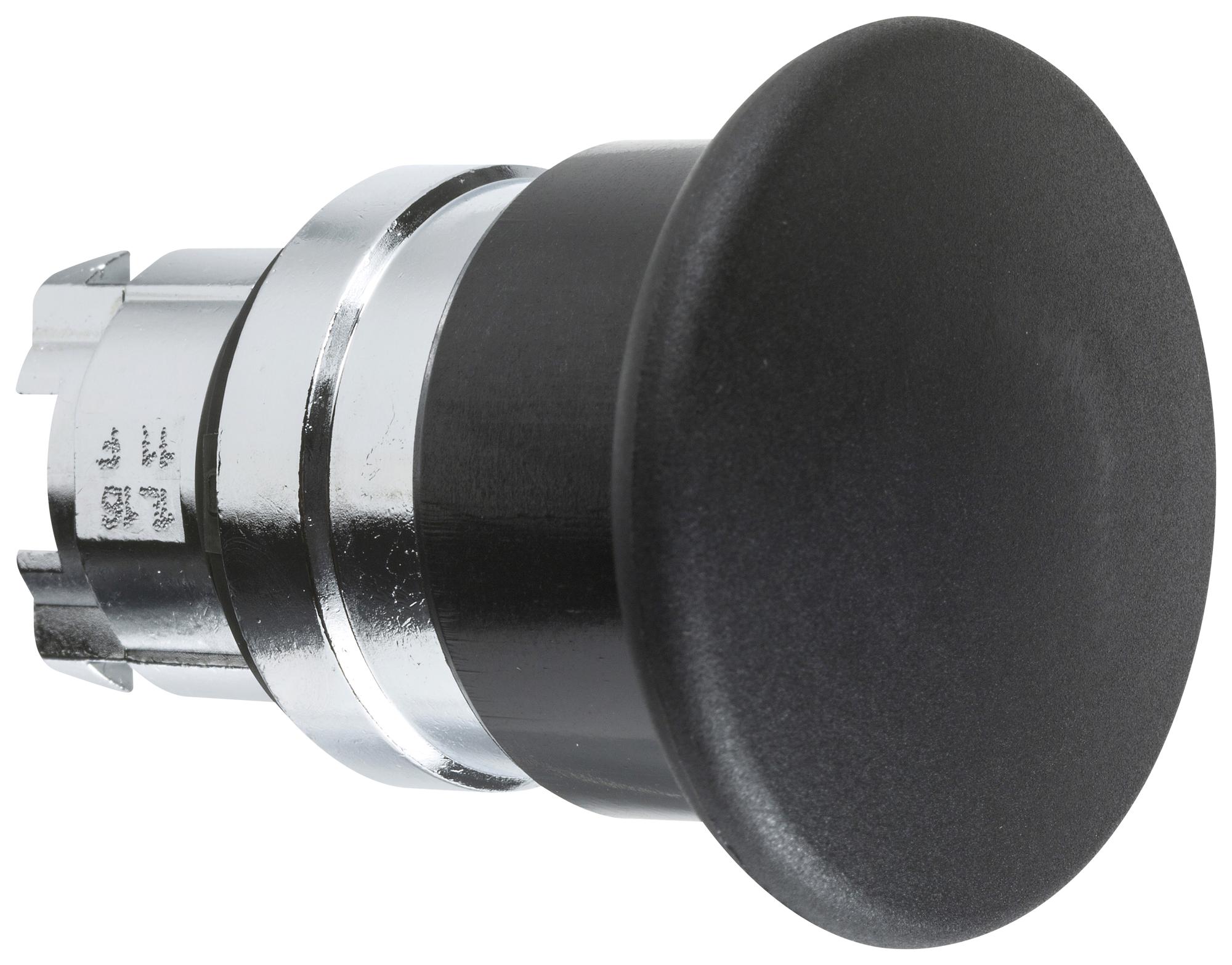

Schneider Electric ZB4BC2 Industrial Control Switch
The ZB4BC2 is a 22mm mushroom head switch with a round signaling indicator, designed to be compatible with Harmony pushbuttons and switches. It features a chromium-plated metal bezel and a spring-return operator. Additionally, it includes a black mushroom actuator with a 40mm diameter, unmarked profile. The switch boasts a mechanical durability of 5,000,000 cycles and conforms to IEC 60068-2-6 standards for vibration resistance at 5g (frequency range 2 to 500Hz). It also has a protective coating suitable for industrial applications, making it ideal for demanding environments.
Schneider Electric ZB4BC2 Industrial Control Switch Specifications:
- Range of product Harmony XB4
- Type of operator Spring return
- Head type Standard
- Shape of signaling unit Round
- Bezel material Chromium plated metal
- Mounting diameter 0.87 in (22mm)
- Dimensions: Overall width 1.57 in (40 mm), height 1.57 in (40 mm), depth 2.05 in (52 mm)
- Mechanical durability 5,000,000 cycles
- Vibration resistance 5 gn (IEC 60068-2-6)
- Shock resistance 30 gn (18 ms, IEC 60068-2-27), 50 gn (11 ms, IEC 60068-2-27)
- Protection IP66, IP69, IP69K (IEC 60529), NEMA 13, NEMA 4X
- IK degree of protection IKO6 (IEC 50102)
- Ambient temperature for storage and operation -40 to +70 °C
- Certifications UL Listed, CSA, RINA, Lloyds, DNV, GL, BV
- Environmental compliance REACh, RoHS, China RoHS, Green Premium
Buy the Schneider Electric ZB4BC2 – Reliable Industrial Control Switch for Industrial Applications
Enhance your control panel with the Schneider Electric ZB4BC2 industrial switch, featuring a durable metal bezel, high cycle life, and strict IEC protection standards. Perfect for demanding environments, this 22mm mushroom head switch provides reliable operation with a spring return operator and a 40mm black actuator. Its robust construction and extensive certifications ensure safety and durability, making it the ideal choice for industrial automation and machinery controls. Order online today and ensure long-lasting performance in your projects.
Buy Schneider Electric ZB4BC2 now and experience unmatched reliability and performance for your industrial control needs.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BC2?
You can click on the BUY or RFQ button to purchase ZB4BC2 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BC2?
You can download the ZB4BC2 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BC2?
Schneider Electric
