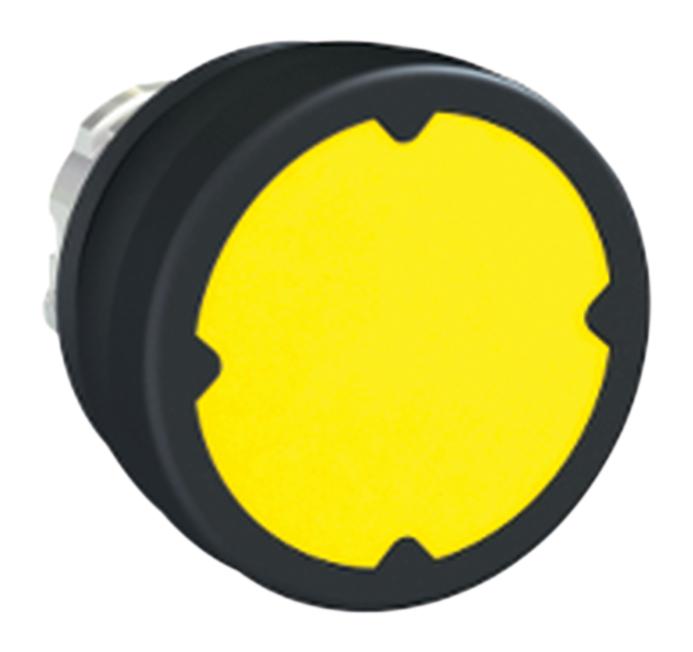

Schneider Electric ZB4BC580 Pushbutton Head
The ZB4BC580 is a durable, high-quality pushbutton head designed for harsh environments, featuring a yellow, unmarked, flush operator profile with vertical and horizontal mounting options. It complies with IEC 60947 standards and offers IP66, IP67, IP69K, and NEMA 4, 12, 13 protection ratings, making it suitable for demanding industrial applications. The pushbutton head withstands 10 million mechanical cycles, resists vibrations and shocks, and is rated for operation in temperatures from -40°F to 158°F. Its chromium-plated metal bezel enhances durability and corrosion resistance, providing reliable manual control in challenging conditions.
Schneider Electric ZB4BC580 Pushbutton Head Specifications:
- Range of product: Harmony XB4
- Type of operator: Spring return
- Shape of signaling unit head: Round
- Mounting diameter: 0.87 in (22 mm)
- Dimensions: Overall width 1.46 in (37 mm), height 0.73 in (18.5 mm), depth 1.46 in (37 mm)
- Material: Chromium plated metal bezel
- Color: Yellow unmarked operator profile
- Mechanical durability: 10,000,000 cycles
- Vibration resistance: 5 gn (f= 2...500 Hz),
- Shock resistance: 30 gn (duration 18 ms),
- Electrical protection: Class IEC 61140 compliant,
- IP ratings: IP66, IP67, IP69K,
- NEMA ratings: 4, 12, 13,
- Ambient temperature: Storage -40 °F to 185 °F (-40 °C to 85 °C), Operating -40 °F to 158 °F (-40 °C to 70 °C),
- Resistance to high-pressure wash: 0.01 psi (90 Pa) at 180 °F
- IK degree of protection: IK06
- Standards: IEC 60947-1, IEC 60947-5-1, CSA C22.2, UL 508
- Certifications: CE, CSA, UL
- Weight: 0.08 lbs (0.036 kg)
- Operating environment: Suitable for use in harsh industrial environments
Buy the Buy Schneider Electric Pushbutton Head Part Number ZB4BC580 Online
Enhance your automation and control systems with the Schneider Electric ZB4BC580 pushbutton head. Designed for harsh environments, this robust, yellow pushbutton features a round head, chromium plating, and IP69K protection, ensuring durability and longevity. Suitable for vertical and horizontal mounting, it withstands over 10 million cycles, vibrations, and shocks. Its compliance with IEC standards and NEMA ratings makes it ideal for industrial applications requiring reliable manual control in extreme conditions. Purchase online today for dependable performance and easy integration.
Buy Schneider Electric ZB4BC580 pushbutton head now and experience unmatched reliability and performance in demanding industrial settings.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BC580?
You can click on the BUY or RFQ button to purchase ZB4BC580 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BC580?
You can download the ZB4BC580 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BC580?
Schneider Electric
