A Premier B2B Part Search

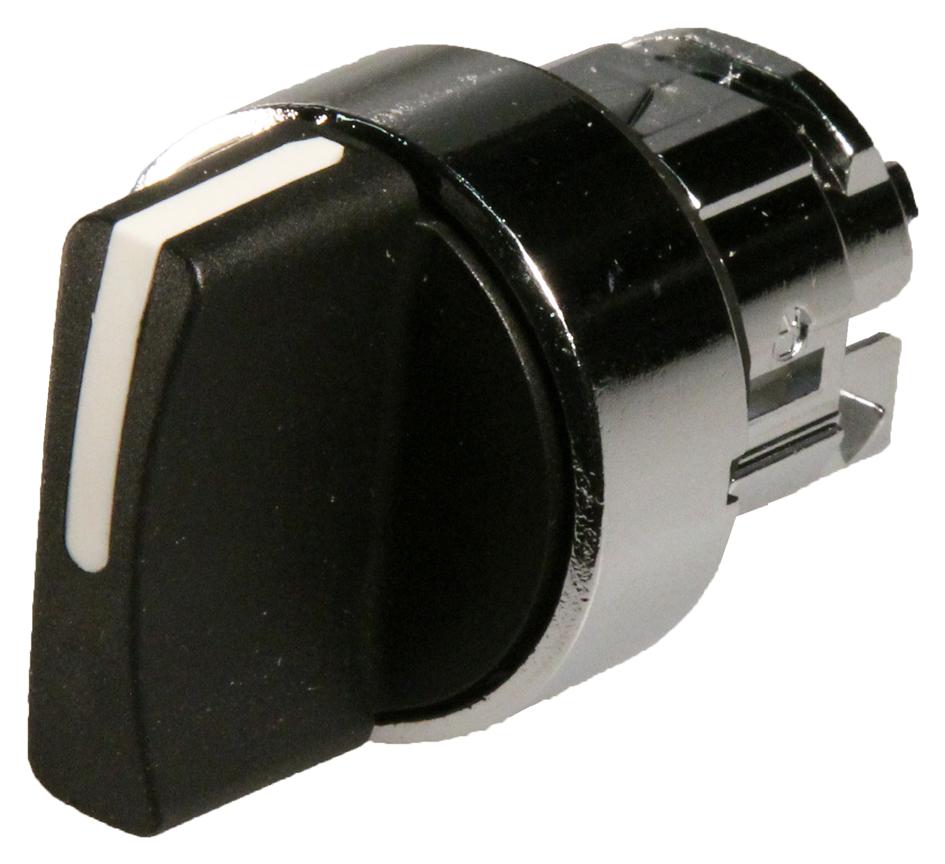

Schneider Electric ZB4BD5 Selector Switch Head
The ZB4BD5 is a robust 3-position selector switch head with a chromium-plated metal bezel and a black handle, designed for industrial control and automation. It features a round signaling unit head with spring return to center, suitable for harsh environments with operational temperatures from -25°C to 70°C. The switch complies with IEC and UL standards, offering high resistance to shock, vibration, and high-pressure cleaning. Its compact dimensions ensure easy installation on control panels, making it ideal for machinery and process automation.
Schneider Electric ZB4BD5 Selector Switch Head Specifications:
- Range of product: Harmony XB4
- Device short name: ZB4
- Head type: Standard
- Shape of signaling unit: Round head
- Mounting diameter: 22 mm / 0.87 in
- Bezel material: Chromium plated metal
- Operator profile: Black standard handle
- Number of positions: 3 (+/- 45°)
- Overall dimensions: Width 29 mm / 1.14 in, Height 29 mm / 1.14 in, Depth 44 mm / 1.73 in
- Operating temperature: -40°F to 158°F / -40°C to 70°C
- Protection rating: IP67, IP69, IP69K, NEMA 13, 4X
- Vibration resistance: 5 gn
- Shock resistance: 30 g for 18 ms, 50 g for 11 ms
- Mechanical durability: 1,000,000 cycles
- Electrical rating: C36, C46, C5, C6, C74, C84, C11 codes for mounting options
- Certifications: UL Listed, CSA, CE, DNV, Lloyd's, RINA, BV
- Material: Chrome-plated metal bezel, durable plastic handle
- Environmental resistance: High pressure washer resistance at 7,000,000 Pa, temperature tolerance
Buy the Schneider Electric Series Harmony XB4 Selector Switch: ZB4BD5
Purchase the Schneider Electric ZB4BD5 selector switch head online and experience reliable performance in demanding industrial environments. Featuring a durable chromium-plated metal bezel and a rugged black handle, this 3-position switch is designed for harsh conditions, including high-pressure cleaning and vibration. Its compact round design ensures easy installation, providing precise control for machinery and automation systems. With high electrical and mechanical durability, certified safety standards, and environmental resistance, buy online today for a dependable control component that enhances operational efficiency.
Get Schneider Electric ZB4BD5 today—built for industrial durability and precision control in automation applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BD5?
You can click on the BUY or RFQ button to purchase ZB4BD5 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BD5?
You can download the ZB4BD5 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BD5?
Schneider Electric
