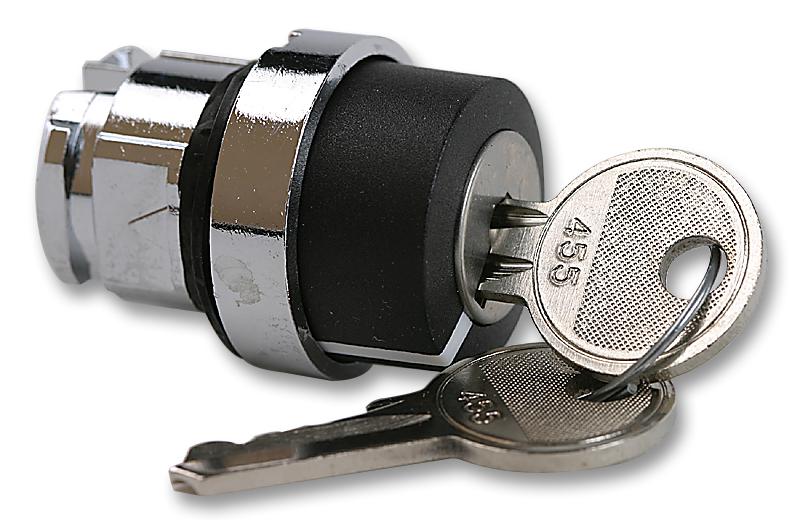

Schneider Electric ZB4BG3 Selector Switch Head
The ZB4BG3 is a high-quality, three-position stay put selector switch head designed for industrial control. Featuring a chromium-plated metal bezel and a round shape, it offers excellent durability with a mechanical lifespan of 1,000,000 cycles and resistances suitable for high-pressure washing at 7,000,000 Pa. It operates in ambient temperatures from -25°C to 70°C, conforms to IEC and UL standards, and is protected to IP69K and NEMA 4X/13. This switch head supports various electrical configurations, including options for up to six contacts, making it ideal for demanding automation and control applications.
Schneider Electric ZB4BG3 Selector Switch Head Specifications:
- Bezel Material: Chromium plated metal
- Mounting Diameter: 22 mm
- Overall Width: 29 mm
- Overall Height: 29 mm
- Overall Depth: 72 mm
- Product Weight: 0.098 kg
- Rotation: 3 positions at +/- 45°
- Keylock: Ronis 455
- Head Shape: Round
- Operator Profile: Black key switch, stay put
- Resistance to High Pressure Washer: 7,000,000 Pa at 55°C, 0.1 m distance
- Mechanical Durability: 1,000,000 cycles
- Electrical Composition Codes: C11, C8, C7, C6, C5, C4, C3 supporting up to 6 contacts
- Protection Class: IEC 60536
- IP Rating: IP69K (IEC 60529)
- NEMA Ratings: 4X, 13
- IK Rating: IKO6 (IEC 50102)
- Standards: CSA, EN/IEC 60947 series, UL 508, GB 14048.5
- Certifications: UL Listed, CSA, BV, DNV, GL, RINA, Lloyds
- Vibration Resistance: 5 gn (2...500 Hz)
- Shock Resistance: 50 gn (11 ms), 30 gn (18 ms)
- Operating & Storage Temp: -25°C to +70°C, -40°C to +70°C storage
- Connection Types: Screw clamp terminals, plug-in, Faston connectors
Buy the Buy Schneider Electric Selector Switch Head Part Number ZB4BG3 Online
Purchase the Schneider Electric ZB4BG3 selector switch head online today for your automation projects. This robust round switch features a chromium-plated metal bezel, supports up to six contacts, and is rated IP69K for high-pressure wash resistance. With a lifespan of 1,000,000 cycles and compliance with IEC and UL standards, it’s ideal for demanding industrial environments. Easy to install with a 22 mm mounting diameter and suitable for control panels needing durable, reliable switching components.
Order your Schneider Electric ZB4BG3 durable selector switch head today and enhance your industrial control panel with reliable, high-performance operation.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BG3?
You can click on the BUY or RFQ button to purchase ZB4BG3 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BG3?
You can download the ZB4BG3 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BG3?
Schneider Electric
