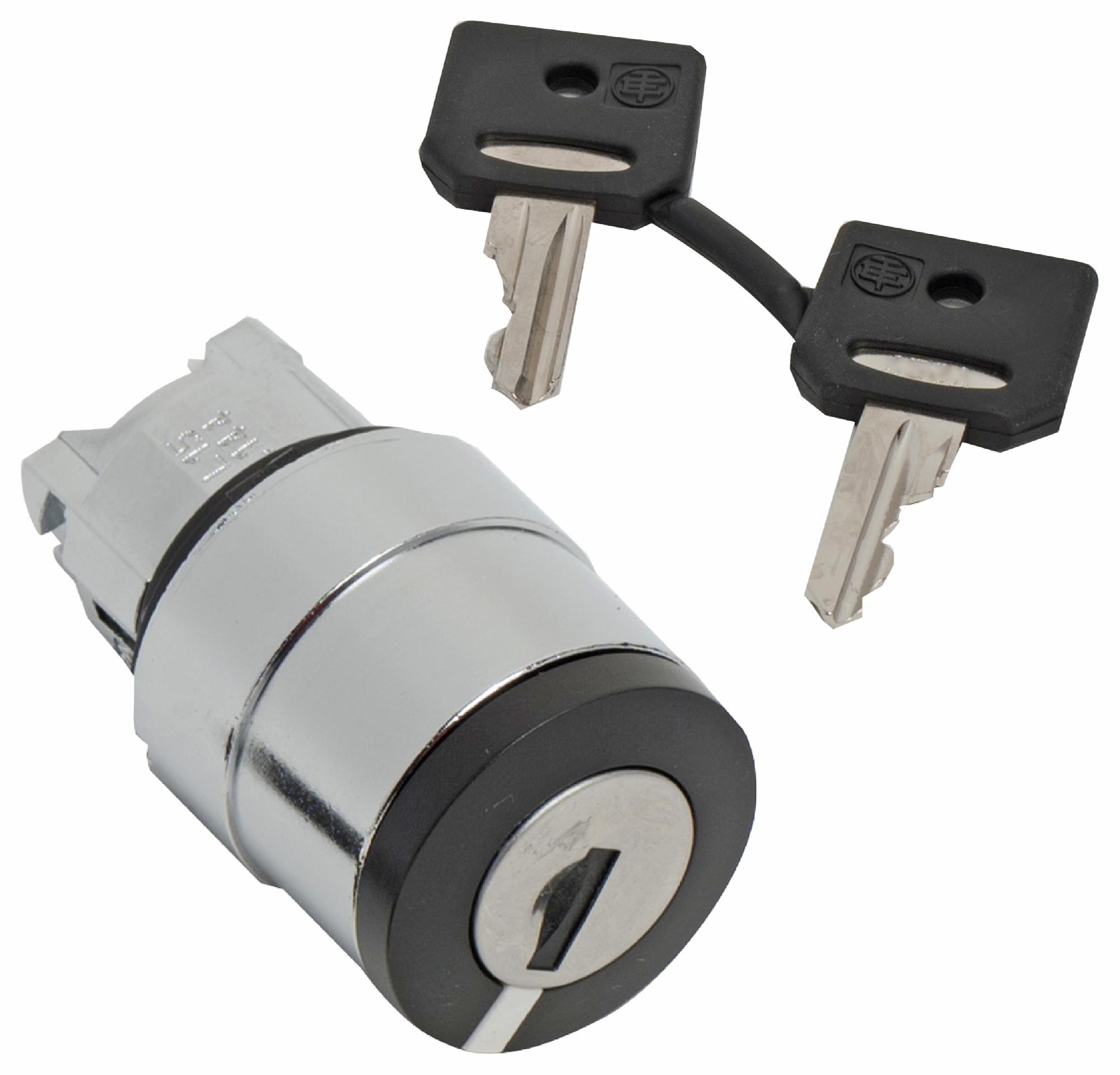

Schneider Electric ZB4BG714 Selector Switch Head
The ZB4BG714 is a 3-position spring return key selector switch head designed for industrial automation applications. It features a round shape with a chromium-plated metal bezel, mounting diameter of 22 mm, and an operator profile with a black key switch. The switch supports multiple electrical compositions, is rated IP66/IP67/IP69K for high protection, and withstands mechanical durability of 1,000,000 cycles. It operates within temperature ranges of -40 to +70°C, conforms to IEC standards, and has certifications including UL, CSA, BV, Lloyd's, DNV, GL, and RINA, making it suitable for demanding environments.
Schneider Electric ZB4BG714 Selector Switch Head Specifications:
- Mounting diameter: 22 mm (0.87 inches)
- Bezel material: Chromium plated metal
- Shape: Round
- Head type: Standard
- Operator profile: Black key switch
- Operator position: 3 positions ±45°
- Key withdrawal position: Center
- Overall dimensions: width 29 mm (1.14 inches), height 29 mm (1.14 inches), depth 72 mm (2.83 inches)
- Net weight: 0.22 lb (0.098 kg)
- Protection ratings: IP66, IP67, IP69K, NEMA 13, 4X
- Resistance to high-pressure wash: 7,000,000 Pa at 55°C at 0.1 m distance
- Mechanical durability: 1,000,000 cycles
- Operating temperature: -40°C to +70°C (-40°F to +158°F)
- Standards: EN/IEC 60947-5-5, GB 14048.5, UL 508, CSA C22.2 No 14
- Vibration resistance: 5 gn (2–500 Hz)
- Shock resistance: 30 gn for 18 ms, 50 gn for 11 ms
- Certifications: UL Listed, CSA, BV, Lloyd’s Register, DNV, GL, RINA
Buy the Schneider Electric Series XB4 ZB4BG714: 3-Position Selector Switch Head
Discover the Schneider Electric Selector Switch Head designed for demanding industrial environments. With IP66/IP67/IP69K protection ratings, a robust chromium-plated bezel, and a 22mm mounting diameter, this switch offers high durability and reliable performance. Its versatile electrical configurations support up to multiple contacts, withstanding over a million mechanical cycles. Operate safely within temperatures from -40 to +70°C. Ideal for automation and control systems requiring precision, durability, and high protection standards. Purchase online now for fast delivery and reliable performance.
Get Schneider Electric ZB4BG714 today—built for precision, durability, and demanding industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BG714?
You can click on the BUY or RFQ button to purchase ZB4BG714 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BG714?
You can download the ZB4BG714 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BG714?
Schneider Electric
