Schneider Electric ZB4BP6 Pushbutton

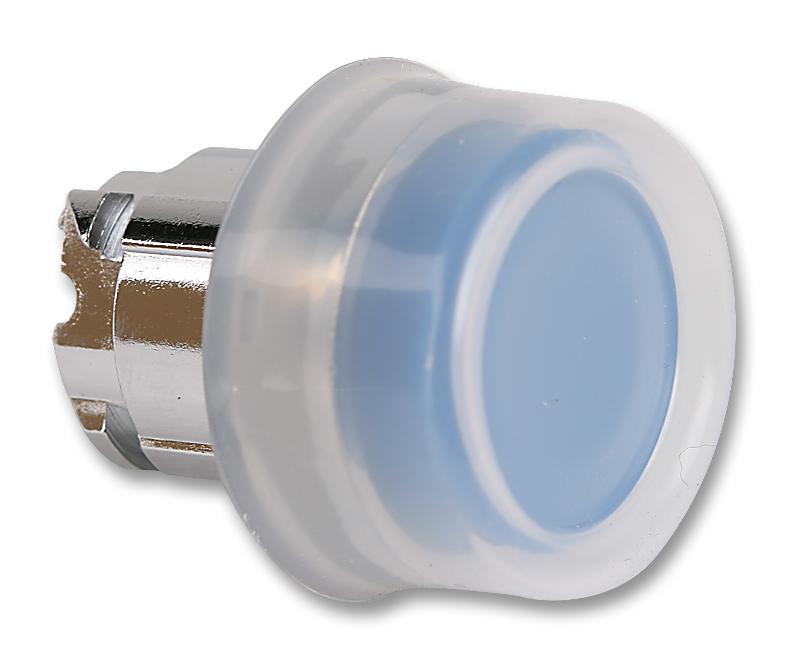

The ZB4BP6 is a non-illuminated round pushbutton head with a blue projecting operator profile, designed for industrial control panels. Made with chromium-plated metal, it features a 22 mm mounting diameter, a clear boot, and a spring return operation, delivering high mechanical durability of 10 million cycles. Certified under multiple standards including UL, IEC, and CSA, it offers IP67 and NEMA 13 protection, suitable for diverse environments. Its compact dimensions include a 30 mm overall height and width, with an overall depth of 35 mm, ensuring reliable performance in automation and control systems.
Schneider Electric ZB4BP6 Pushbutton Specifications:
- Range of product: Harmony XB4
- Device type: Head for non-illuminated push-button
- Bezel material: Chromium plated metal
- Mounting diameter: 22mm
- Shape: Round
- Operator profile: Blue projecting unmarked
- Size: Overall width 30mm, height 30mm, depth 35mm
- Electrical composition code: C1, C2, C11, C15
- Mechanical durability: 10,000,000 cycles
- Protection IP67, NEMA 13, NEMA 4X
- Standards: UL 508, IEC 60947-5-1, CSA C22.2 No 14
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18ms), 50 gn (11ms)
- Warranty: 18 months
- Environmental ratings: Ambient -40°C to +70°C, storage -40°C to +70°C
Buy the Buy Schneider Electric ZB4BP6 Part Number ZB4BP6 Online
Order the Schneider Electric ZB4BP6 pushbutton head online today to ensure seamless integration into your automation systems. Designed with a durable chromium-plated metal bezel, this round switch features a 22 mm mounting diameter, blue projecting operator profile, and a spring return for reliable control. Its IP67 rating guarantees protection against dust and water, suitable for harsh industrial environments. Certified by UL, IEC, and CSA standards, it offers exceptional mechanical durability of 10 million cycles. Upgrade your control panels with this dependable, high-quality industrial pushbutton for enhanced performance and longevity.
Get Schneider Electric ZB4BP6 today—built for industrial control, long-lasting durability, and reliable operation in demanding environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BP6?
You can click on the BUY or RFQ button to purchase ZB4BP6 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BP6?
You can download the ZB4BP6 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BP6?
Schneider Electric
