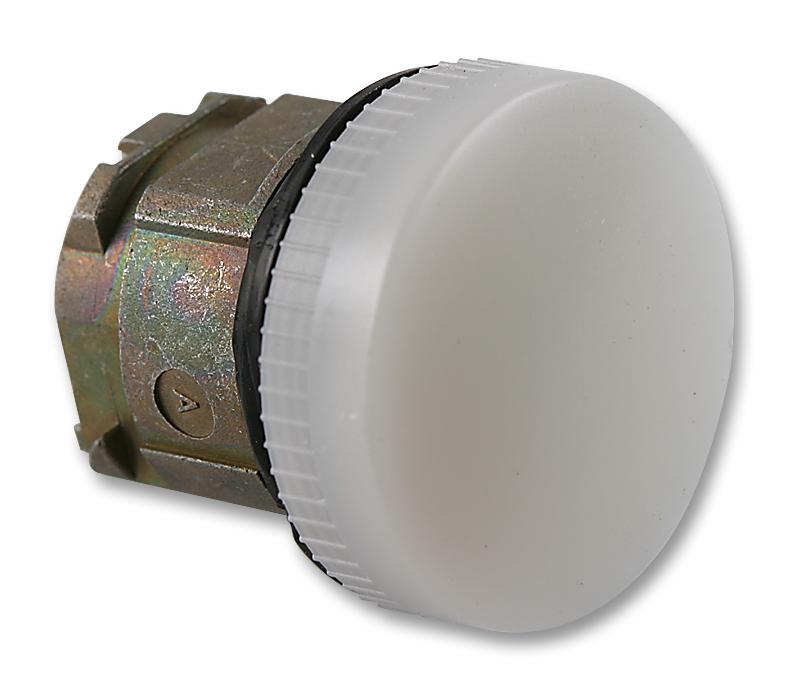

Schneider Electric ZB4BV01 Pilot Light Head
The ZB4BV01 is a white pilot light head with a plain lens designed for 22mm panel mounting, compatible with BA 9s bases. It features durable chromium-plated metal bezel, IP69/IP67/IP66 protection, and is suitable for harsh environments with high-pressure washer resistance up to 7,000,000 Pa. The pilot light operates within -40°C to 55°C, conforms to IEC standards, and supports multiple mounting options including screw clamp terminals and plug-in connectors. Its compact round shape ensures reliable visual signaling for industrial automation systems.
Schneider Electric ZB4BV01 Pilot Light Head Specifications:
- Mounting diameter: 22mm
- Shape: Round
- Lens Color: White
- Bezel Material: Chromium plated metal
- Overall Width: 29mm
- Overall Height: 29mm
- Overall Depth: 31mm
- Weight: 0.027 kg
- Protection Rating: IP69, IP67, IP66, IP69K
- NEMA Ratings: 13, 4X
- Shock Resistance: 30 gn (18 ms)
- Vibration Resistance: 5 gn (2-500 Hz)
- Temperature Range: -40°C to 55°C (operation), -40°C to 70°C (storage)
- Pressure Resistance: 7,000,000 Pa at 55°C
- Standards: IEC 60947-5-1, UL 508, CSA, JIS C 4520
- Ingress Protection: IP69/IP67/IP66/IP69K
- Electrical: Suitable for BA 9s base, with multiple mounting options
- Warranty: 18 months
Buy the Schneider Series ZB4 Pilot Light: ZB4BV01
Order the Schneider Pilot Light Head ZB4BV01 online now for reliable visual signaling in demanding industrial conditions. Its durable chrome-plated bezel and IP69/IP67/IP66 ratings ensure long-lasting protection against dust, water, and high-pressure cleaning. With a 22mm mounting diameter and compatibility with BA 9s bases, this round signaling unit fits easily into control panels. Ideal for automation panels, machinery, and safety systems, it provides clear and durable warning indications, supporting your industrial safety and process control needs efficiently.
Get Schneider ZB4BV01 today—built for industrial signaling with IP69 protection and high-pressure washer resistance.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BV01?
You can click on the BUY or RFQ button to purchase ZB4BV01 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BV01?
You can download the ZB4BV01 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BV01?
Schneider Electric
