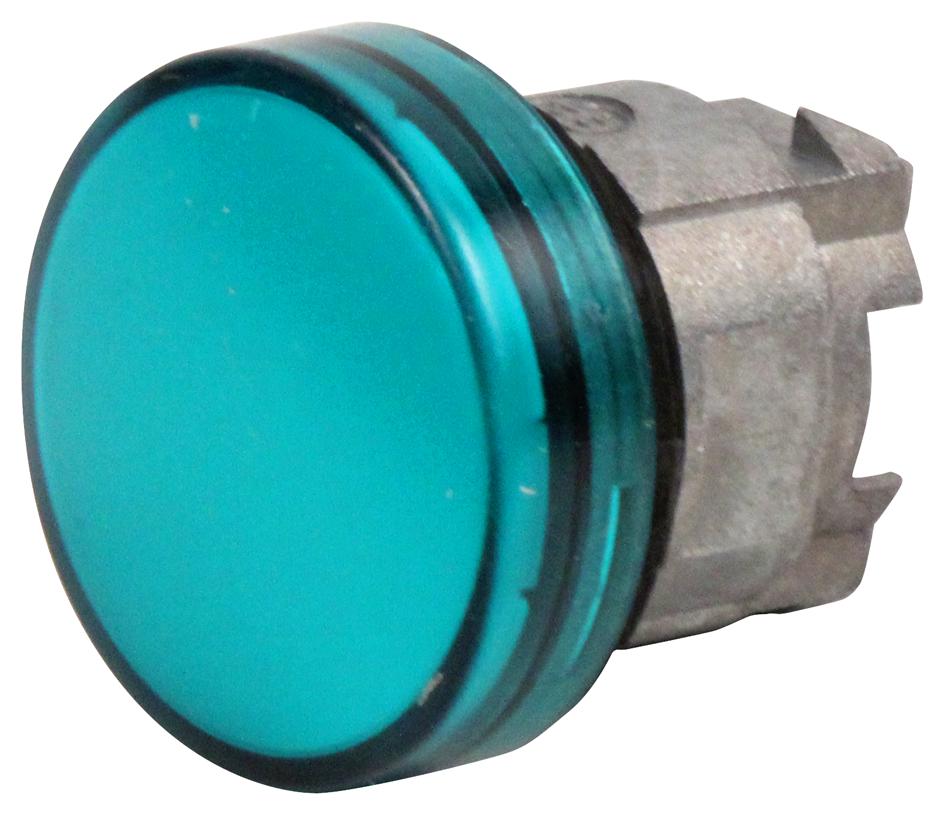

Schneider Electric ZB4BV033 Pilot Light Head
The ZB4BV033 is a 22mm pilot light head designed for use with Schneider 22mm pushbuttons, switches, and indicator lights. Suitable for industrial applications, it provides visual signaling in control panels. Constructed with a chromium-plated metal bezel and a plain lens cover, it features a green LED indicator for clear signal indication. This pilot light head is designed to withstand various environmental conditions, including high pressure wash resistance of 7,000,000 Pa at 55°C, IP66/IP67/IP69 protection, and compliance with standards like IEC 60947.1 and UL 508, making it ideal for demanding industrial environments.
Schneider Electric ZB4BV033 Pilot Light Head Specifications:
- Mounting diameter: 0.87 in (22mm)
- Overall width: 1.14 in (29 mm)
- Overall height: 1.14 in (29 mm)
- Overall depth: 1.18 in (30 mm)
- Bezel material: Chromium plated metal
- Lens: Plain, green LED indicator
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Protection ratings: IP66, IP67, IP69, NEMA 13, NEMA 4X
- Operating/Storage temperature: -40...158 °F (-40...70 °C)
- Vibration resistance: 5 gn (2…500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Compliance: IEC 60947-1, UL 508, CSA C22.2 No 14
- Warranty: 18 months
- Environmental: RoHS, REACH compliant, green premium product
Buy the Schneider Series Harmony ZB4 Pilot Light Head: ZB4BV033
Enhance your control panels with the Schneider pilot light head designed for durability and superior signaling. Featuring a green LED indicator, IP66/IP67/IP69 protection, and resistance to high-pressure wash environments, it guarantees reliable operation in demanding industrial settings. Easy to install with a 22mm mounting diameter, this pilot light head complies with international safety standards like IEC 60947 and UL 508. Perfect for machine control, automation systems, and industrial signaling, buy online today and improve your equipment’s visibility and safety.
Buy Schneider ZB4BV033 now and experience unmatched reliability and performance in industrial signaling and control applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BV033?
You can click on the BUY or RFQ button to purchase ZB4BV033 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BV033?
You can download the ZB4BV033 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BV033?
Schneider Electric
