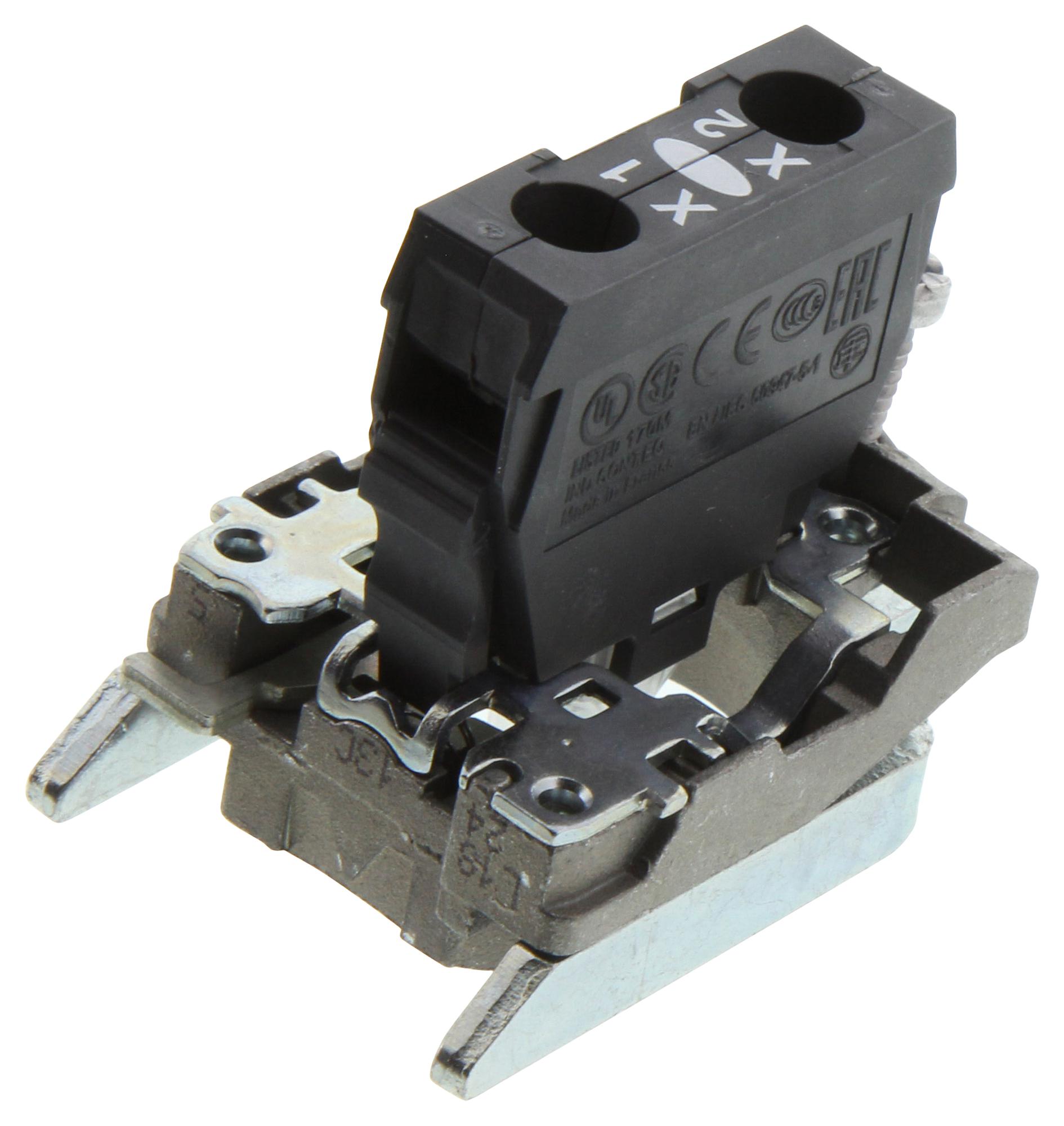

Schneider Electric ZB4BVBG1 Light Block Assembly
The ZB4BVBG1 is a white metal light block with body and fixing collar, equipped with an integral LED light source emitting white light. Designed for industrial control systems, it operates on a rated supply voltage of 24 to 120 V AC/DC at 50/60 Hz, ensuring reliable signaling. The device features screw clamp terminals for secure wiring, a compact size with dimensions of 1.18 inches width, 1.85 inches height, and 1.46 inches depth. Its robust design includes certifications like UL, CSA, and DNV, and it withstands harsh environments with resistance to vibration, shocks, and electromagnetic interference, making it ideal for diverse industrial applications.
Schneider Electric ZB4BVBG1 Light Block Assembly Specifications:
- Range of product: Harmony XB4
- Type: Complete body/light block assembly
- Fixing collar material: Zamak
- Connections - terminals: Screw clamp terminals, <= 2 x 1.5 mm?, without cable end
- Light source: Protected LED, white color
- Rated supply voltage: 24...120 V AC/DC 50/60 Hz
- Overall width: 1.18 in (30 mm)
- Overall height: 1.85 in (47 mm)
- Overall depth: 1.46 in (37 mm)
- Net weight: 0.12 Ib (0.054 kg)
- Tightening torque: 7.08...10.62 Ibf.in (0.8...1.2 N.m)
- Insulation voltage: 600 V
- Impulse withstand voltage: 6 kV
- Signaling type: Steady
- Supply voltage limits: 19.2...132 V DC, 21.6...132 VAC
- Service life: 100000 hours at rated voltage and 25°C
- Surge withstand: 1 kV
- Environment: -40°F to 158°F (-40°C to 70°C)
- Protection class: IEC 60536
- Standards: EN/IEC 60947-1, UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-5-1, IEC 60947-5-4, JIS C8201-1
- Vibration resistance: 5 gn, 2-500 Hz
- Shock resistance: 30 gn (18 ms) / 50 gn (11 ms)
- Resistance to transients: 2 kV
- Electromagnetic field resistance: 9.14 V/m
- Electrostatic discharge resistance: 6 kV contact / 8 kV air
- Environmental certifications: UL Listed, BV, RINA, Lloyds register, CSA
- WEEE compliance, RoHS compliant, Mercury free
- Warranty: 18 months
Buy the Schneider Electric Series Harmony XB4 Light Block: ZB4BVBG1
Purchase the Schneider Electric Harmony XB4 Light Block Assembly ZB4BVBG1 online today to ensure reliable indicator signaling in industrial environments. Crafted with durable metal and protected white LED source, it offers a compact design measuring 1.18 inches wide, 1.85 inches high, and 1.46 inches deep. Suitable for operating voltages from 24 to 120 V AC/DC, it features screw clamp terminals for secure wiring. Certified by UL, CSA, and others, it withstands vibration, shocks, and electromagnetic interference, making it ideal for demanding industrial applications.
Get Schneider Electric ZB4BVBG1 light block today—built for durability and reliable industrial signaling.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BVBG1?
You can click on the BUY or RFQ button to purchase ZB4BVBG1 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BVBG1?
You can download the ZB4BVBG1 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BVBG1?
Schneider Electric
