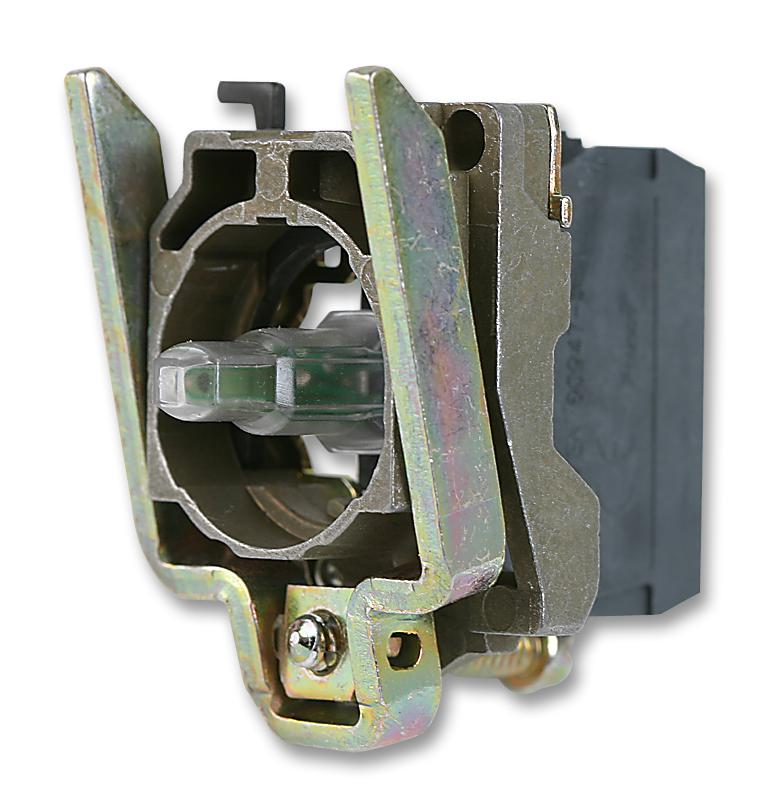

Schneider Electric ZB4BVG1 LED Light Block
The ZB4BVG1 is a white LED light block with an integral body and fixing collar made from Zamak, suitable for industrial applications. Operating at 110 to 120V AC, 50/60Hz, it features a protected LED light source with a steady signaling type, rated at 14 mA current. Its compact design measures 30mm in width, 47mm in height, and 37mm in depth. Constructed to meet safety standards (UL, CSA, EN/IEC), it offers a service life of 100,000 hours, combining durability with reliable illumination for control panels and machinery indicators.
Schneider Electric ZB4BVG1 LED Light Block Specifications:
- Operating Voltage: 110-120V AC, 50/60Hz
- Light Source: Protected LED, White
- Current Consumption: 14 mA
- Dimensions: Width 30mm, Height 47mm, Depth 37mm
- Material: Zamak fixing collar
- Service Life: 100,000 hours at 25°C
- Insulation Voltage: 600 V (pollution degree 3)
- Impulse withstand voltage: 6 kV
- Tightening Torque: 0.8-1.2 N·m
- Vibration Resistance: 5 gn (2-500 Hz)
- Shock Resistance: 50 gn (11 ms), 30 gn (18 ms)
- Electromagnetic Compatibility: Meets IEC standards for emission and immunity
- Protection Class: IEC 60536, Class I
- Certifications: UL, CSA, DNV, GL, Lloyds, RINA
- Environmental Ratings: Storage -40°C to 70°C, Operation -25°C to 70°C
- Standards: IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 508
Buy the Buy Schneider Electric Light Block Part Number ZB4BVG1 Online
Purchase the Schneider Electric LED Light Block ZB4BVG1 online today to upgrade your industrial control panels. Featuring a durable Zamak fixing collar, steady white LED illumination, and an extensive 100,000-hour lifespan, this light block provides reliable signaling in demanding environments. Operating at 110-120V AC with a compact design (30mm wide, 47mm high), it ensures easy installation. Certified to multiple safety standards, this long-lasting component improves safety and visibility in control stations and machinery setups, offering an optimal balance of performance and dependability.
Buy Schneider Electric ZB4BVG1 now and enhance your control system with reliable, long-lasting LED illumination for industrial applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BVG1?
You can click on the BUY or RFQ button to purchase ZB4BVG1 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BVG1?
You can download the ZB4BVG1 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BVG1?
Schneider Electric
