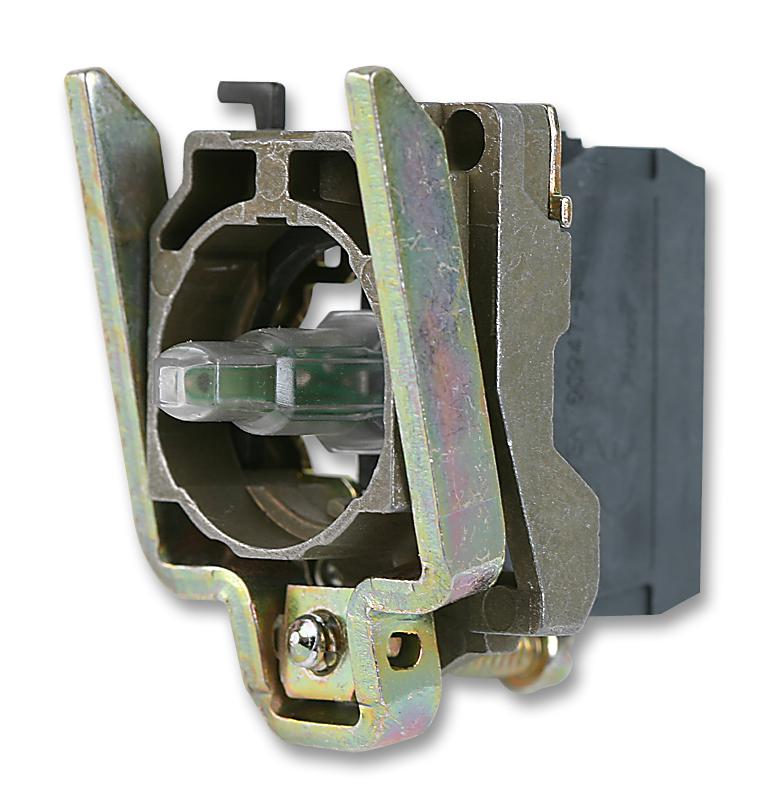

Schneider Electric ZB4BVM3 indicator light
The Schneider Electric ZB4BVM3 is a green LED light block with an integral body and fixing collar made of Zamak, designed for industrial indicator applications. It operates on AC voltage range 230-240V with a steady signaling type. The compact, durable assembly measures 30mm in width, 47mm in height, and 37mm in depth, and features screw clamp terminals for reliable wiring connections. Certified under multiple standards including UL, CSA, and RINA, it offers a service life of 100,000 hours at 25°C and withstands vibration, shock, and electromagnetic interference, ideal for industrial control panels and automation systems.
Schneider Electric ZB4BVM3 indicator light Specifications:
- Operating voltage: 230-240V AC, 50/60 Hz
- Light source: Protected LED, Green
- Size: Width 30mm, Height 47mm, Depth 37mm
- Body material: Complete body/light block assembly with Zamak collar
- Terminals: Screw clamp terminals (>= 0.22 mm? without cable end, <= 2 x 1.5 mm? with cable end)
- Tightening torque: 0.8...1.2 N.m conforming to EN 60947-1
- Rated insulation voltage: 600 V (pollution degree 3)
- Rated impulse withstand voltage: 6 kV
- Signaling: Steady
- Supply voltage limits: 195...264 V AC
- Current consumption: 14mA
- Service life: 100000 hours at rated voltage and 25°C
- Environmental: Storage -40 to 70°C, Operation -25 to 70°C
- Protection class: IEC 60536
- Certifications: UL, CSA, DNV, RINA, BV, GL, LROS
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 50 gn (11 ms), 30 gn (18 ms)
- Electromagnetic compatibility: Resistance to transients, fields, static discharge, and emissions per IEC standards
Buy the Schneider Electric ZB4BVM3 – Reliable Indicator Light for Industrial Applications
Purchase the Schneider Electric ZB4BVM3 indicator light online today. This durable, green LED signal device operates on 230-240V AC, featuring integral body and fixing collar Zamak. Designed for industrial settings, it offers a steady signaling type, with a compact size of 30mm width, 47mm height, and 37mm depth. Certified under UL, CSA, and other standards, it provides a service life of 100,000 hours, ensuring reliable operation in automation, control panels, and manufacturing equipment. Order now to ensure seamless signaling in your automation system.
Get Schneider Electric ZB4BVM3 today—built for precise signaling and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BVM3?
You can click on the BUY or RFQ button to purchase ZB4BVM3 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BVM3?
You can download the ZB4BVM3 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BVM3?
Schneider Electric
