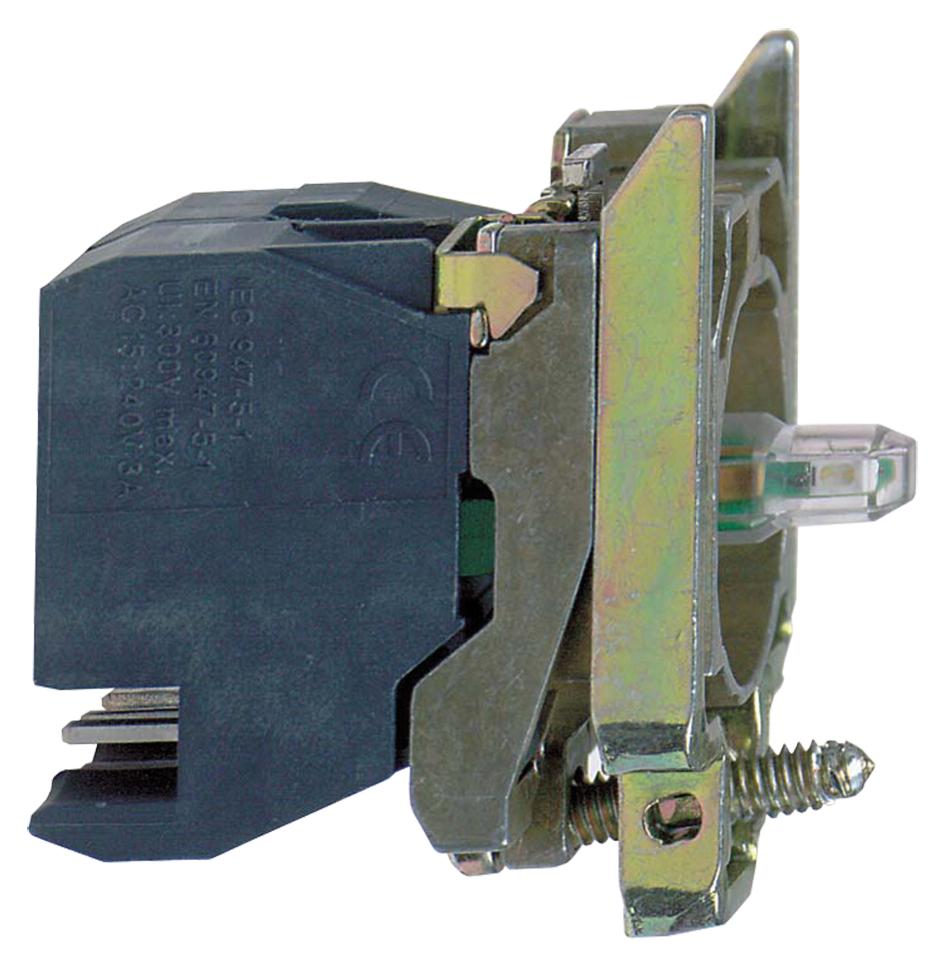

Schneider Electric ZB4BW065 Signal Connection Component
The ZB4BW065 is a mounting collar made of Zamak material designed for use with the ZB4 series contact assemblies and light blocks. These components feature a BA9s base, screw clamp connection terminals, and standard silver alloy contacts with a 1NO + 1NC slow-break configuration, providing reliable signaling. Compatible with the Harmony XB4 range, the device meets various international standards including EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508, and CSA C22.2 No 14. It offers mechanical durability for up to 5,000,000 cycles and operates within an ambient temperature range of -20°C to 50°C. Suitable for industrial, automotive, and commercial applications.
Schneider Electric ZB4BW065 Signal Connection Component Specifications:
- Material: Zamak
- Light source: Bulb not included, BA9s base
- Supply Power: Direct, less than 2.4 W
- Rated Voltage: <= 250 V
- Contact configuration: 1NO + 1NC, slow-break
- Connection Terminals: Screw clamp, <= 2 x 1.5 mm² with cable, >= 1 x 0.22 mm² without cable
- Overall Dimensions: Width 30 mm, Height 47 mm, Depth 37 mm
- Durability: Mechanical 5,000,000 cycles
- Operating Temperature Range: -20°C to 50°C
- Standards: EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C 4520, UL 508, CSA C22.2 No 14
- Certifications: UL Listed, CSA, RINA, DNV, GL, BV, Lloyds
- Shock Resistance: 30 gn, Vibration resistance: 5 gn
Buy the Buy Schneider Electric ZB4BW065 Part Number ZB4BW065 Online
Purchase the Schneider Electric ZB4BW065 mounting collar online for industrial signaling and control. Made of Zamak, compatible with ZB4 series contact assemblies, featuring screw clamp terminals, a BA9s base, and silver alloy contacts. Supports reliable operation with a rated voltage up to 250V and a lifespan of 5 million cycles. Designed to meet international standards including IEC and UL certifications. Ideal for automation, machinery, and control panel applications, ensuring long-lasting and efficient performance in challenging environments.
Get Schneider Electric ZB4BW065 today—built for industrial signaling with reliable contacts and durable design.
