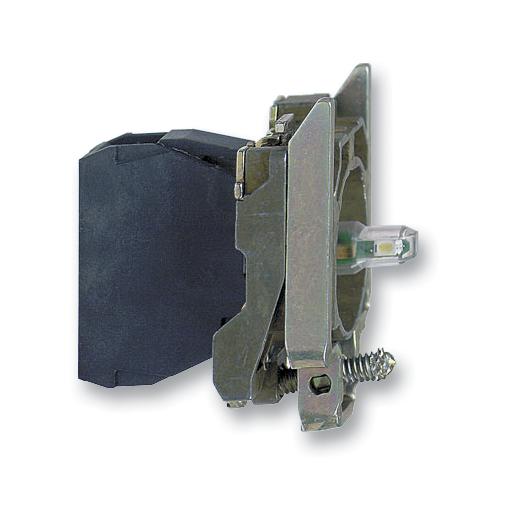

Schneider Electric ZB4BW0B35 Signal Light Block
The ZB4BWO0B35 is a green light block designed for industrial automation, featuring a body with integral LED, and dual contacts (1NO+1NC) with slow-break operation. Suitable for use with Harmony XB4 range, it provides reliable visual signalling with a 24V supply, and incorporates durable components like a zamak fixing collar, silver alloy contacts, and an integral LED for long-lasting performance. The compact design measures 30mm wide and 47mm high, making it ideal for panel mounting in various industrial safety and control circuits.
Schneider Electric ZB4BW0B35 Signal Light Block Specifications:
- Operating voltage: 24 V AC/DC, 50/60 Hz
- Contacts: 1NO+1NC, slow-break operation
- Body material: Light block with zamak fixing collar
- Light source: Green LED, direct supply
- Overall dimensions: Width 30mm, height 47mm
- Contact material: Silver alloy (Ag/Ni)
- Mechanical durability: 5,000,000 cycles
- Tightening torque: 0.8 to 1.2 N.m
- Connection terminals: Screw clamp, 2x 1.5 mm²
- Rated insulation voltage: 600 V
- Rated impulse withstand voltage: 6 kV
- Rated operational current: 3 A at 240 V AC
- Electrical durability: 1,000,000 cycles
- Standards compliance: EN/IEC 60947-5-1, UL, CSA
- Vibration resistance: 5 gn
- Shock resistance: 30 gn
- Protection class: IEC 60536
- Temperature range: -40°C to 70°C
- Certifications: UL listed, CSA, Lloyds, DNV, RINA, BV
- Warranty: 18 months
Buy the Samson ZB4BWO0B35 – Reliable Signaling Light for Industrial Applications
Secure your industrial signaling needs with the Samson ZB4BWO0B35 green light block. This compact, durable indicator features a built-in LED, dual contacts, and a robust zamak fixing collar. Designed for easy panel mounting, it ensures high reliability with up to 5 million mechanical cycles and 1 million electrical cycles. Perfect for automation, safety, and control systems, it operates at 24V AC/DC, supporting a wide temperature range. Purchase online now to upgrade your control panels with dependable, high-quality signaling components.
Order your Samson ZB4BWO0B35 signaling light today and enhance the safety and visibility of your control panels with reliable performance.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BW0B35?
You can click on the BUY or RFQ button to purchase ZB4BW0B35 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BW0B35?
You can download the ZB4BW0B35 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BW0B35?
Schneider Electric
