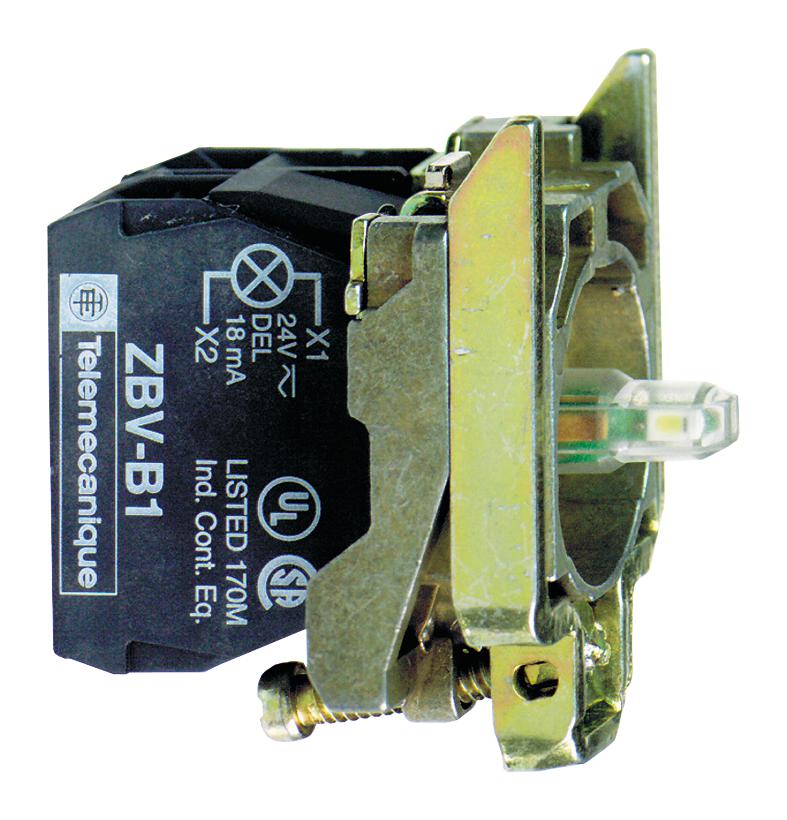

Schneider Electric ZB4BW0G11 Signal Light Assembly
The ZB4BW0G11 is a complete body/contact assembly and light block designed for industrial automation. It features an integral white LED light source, 110 to 120V AC operation, and a standard 30mm width with a height of 47mm. Made with Zamak fixing collar and silver alloy contacts, this device is suitable for signaling and control applications. Its durable mechanical and electrical design ensures a lifespan of 5 million cycles, with compliance to multiple safety standards including UL, CSA, and EN/IEC certifications.
Schneider Electric ZB4BW0G11 Signal Light Assembly Specifications:
- Dimensions: Width 30mm, Height 47mm
- Supply Voltage: 110-120 V AC, 50/60 Hz
- Light source: Protected white LED
- Contacts: 1NO, silver alloy (Ag/Ni)
- Mechanical durability: 5,000,000 cycles
- Operating travel: 2.6 mm (NO), total 4.3 mm
- Operating force: 2.3 N
- Tightening torque: 0.8-1.2 N.m
- Installation: Panel cut-out 40mm min., support mounting
- Standards: UL 508, EN/IEC 60947 series, CSA, JIS C 4520
- Environmental ratings: -40°C to +70°C ambient temperature
- Shock resistance: 30 gn for 18ms, vibration resistance: 5 gn
- Insulation voltage: 600 V, impulse withstand: 6 kV
Buy the Buy Harmony XB4 Part Number ZB4BW0G11 Online
Elevate your control and automation projects with the Harmony XB4 ZB4BW0G11 signal light assembly. It features a durable white LED light source powered by 110-120V AC, designed for easy mounting with a 30mm width and 47mm height. Its silver alloy contacts and Zamak fixing collar ensure long-lasting performance. The device withstands millions of cycles, meeting strict UL, CSA, and IEC standards for safety and reliability. Perfect for industrial signaling, this module offers excellent environmental resistance and ease of installation for comprehensive control solutions.
Order your Harmony XB4 ZB4BW0G11 signal indicator today and enhance your control panel with reliable, durable LED signaling components.
