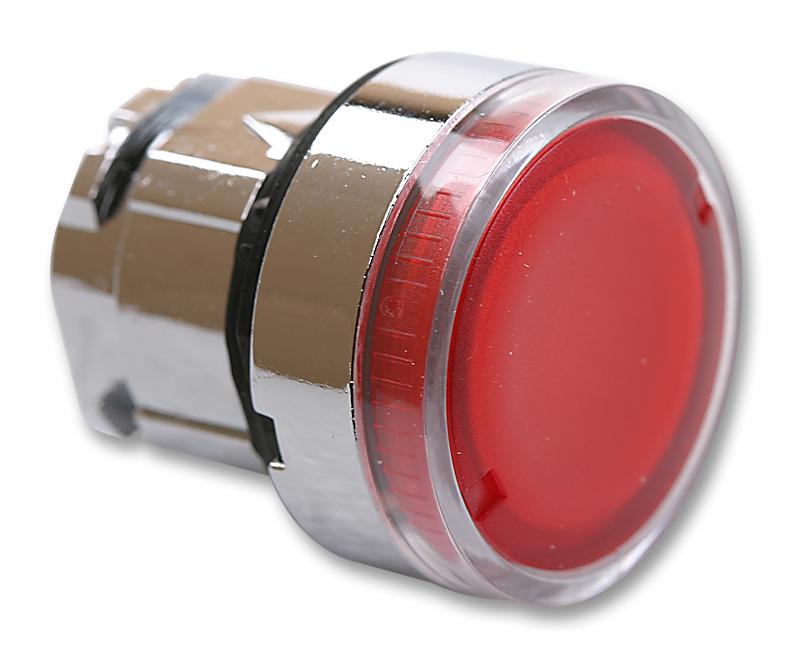

Schneider Electric ZB4BW34 Pushbutton Switch
The ZB4BW34 is a red flush illuminated pushbutton head designed for industrial control panels. It features a 22mm mounting diameter, chromium-plated metal bezel, and a round shape with a plain lens. The switch operates with a spring return mechanism, ensuring reliable operation in demanding environments. It is rated for high pressure washer resistance at 7,000,000 Pa and has a mechanical durability of 10 million cycles. Certified for IEC 60947 standards, it offers IP66/IP67/IP69K protection levels suitable for harsh conditions. With environmental resistance from -40°C to 70°C, it ensures long-lasting performance for automation and control applications.
Schneider Electric ZB4BW34 Pushbutton Switch Specifications:
- Range of product: Harmony XB4
- Device short name: ZB4
- Head type: Standard round
- Mounting diameter: 22mm
- Shape of signaling unit head: Round
- Bezel material: Chromium plated metal
- Operator profile: Red flush unmarked, plain lens
- Mechanical durability: 10,000,000 cycles
- Electrical composition code: M7, M8, M9
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, distance 0.1m
- Environmental temperature range (operation): -40°C to +55°C
- IP degree of protection: IP66/IP67/IP69K
- NEMA 13, NEMA 4X
- Vibration resistance: 5 gn (f=30-500 Hz)
- Shock resistance: 30 gn (duration=11 ms)
- Certification: IEC 60947, UL 508, CSA C22.2 No 14, BV, DNV, RINA, Lloyd's Register, UL listed
- Connection type: Screw clamp terminals or plug-in connectors
- Panel cut-out diameter: 22.4mm + 0.1 / 0.88 in.
- Dimensions: Overall width 29mm, height 29mm, depth 32mm
- Weight: 0.027 kg
Buy the Schneider Series XB4 ZB4BW34: Red Flush Illuminated Pushbutton
Get the Schneider Series XB4 ZB4BW34 red flush illuminated pushbutton online today to enhance your control panel with reliable, durable, and high-pressure resistant switches. Designed with a 22mm mounting diameter, this round switch features a chromium-plated bezel and a plain lens for clear visibility. Its spring return mechanism guarantees dependable operation across extensive cycles. Certified for IEC standards and rated for IP66/IP67/IP69K, it withstands harsh environments from -40°C to 55°C. Ideal for industrial automation, order now to improve your project's control and safety features quickly and efficiently.
Order your Schneider Series XB4 ZB4BW34 pushbutton today and ensure reliable operation in demanding environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BW34?
You can click on the BUY or RFQ button to purchase ZB4BW34 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BW34?
You can download the ZB4BW34 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BW34?
Schneider Electric
