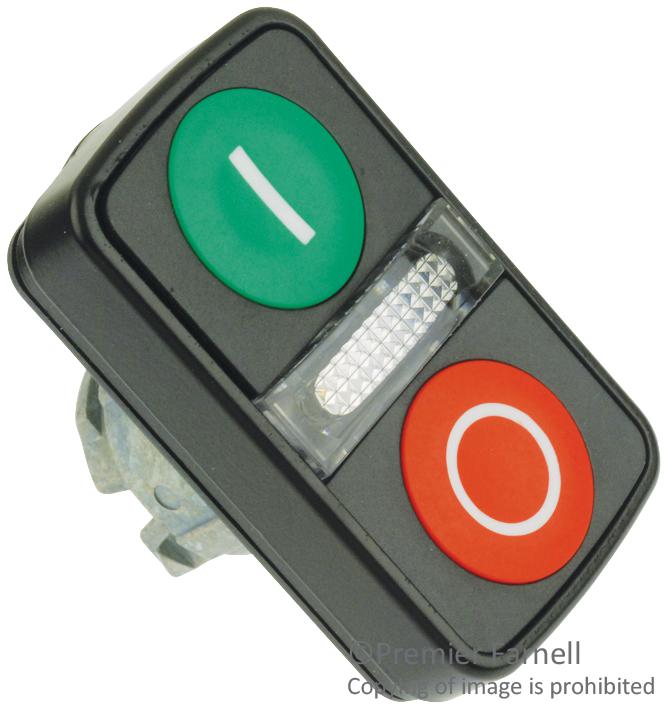

Schneider Electric ZB4BW7A37417 Illuminated Pushbutton Switch
The ZB4BW7A37417 is a green flush and red flush illuminated double-headed pushbutton suitable for industrial control applications. It features a 22mm mounting diameter, rectangular shape, and robust black metal bezel. Designed for high durability with a mechanical lifespan of 1,000,000 cycles, it complies with IEC, UL, and CSA standards. Its IP66/IP67/IP69K ratings ensure excellent protection against dust and water. The product features integral LEDs with dual operators—green 'I' and red 'O'—and supports various electrical and environmental specifications for reliable operation in demanding environments.
Schneider Electric ZB4BW7A37417 Illuminated Pushbutton Switch Specifications:
- Mounting diameter: 22mm
- Shape of signaling unit head: Rectangular
- Bezel material: Black metal
- Environmental ratings: IP66, IP67, IP69K, NEMA 13, NEMA 4X
- Mechanical durability: 1,000,000 cycles
- Protection class: IEC 61140 conforming to electrical shock protection class
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +70°C
- Resistance to high-pressure washer: 7000000 Pa at 55°C, distance 0.1m
- Vibration resistance: 5 gn (2-500 Hz) conforming to IEC 60068-2-6
- Materials: Molded plastic and metal
- Electrical standards: IEC 60947 series, UL 508, CSA C22.2 No 14
- Certificate compliance: BV, CSA, DNV
- Connection: Screw clamp terminals or plug-in connectors
- Size: 30mm width, 50mm height, 30mm depth
- Weight: 0.056 kg
- Operator profile: Spring return with green 'I' and red 'O'
- Environmental protection: IP66/IP67/IP69K
Buy the Schneider ZB4BW7A37417 – Reliable Red and Green Illuminated Pushbutton for Industrial Applications
Purchase Schneider ZB4BW7A37417 online today—designed for industrial environments requiring reliable illumination, robustness, and easy installation. This illuminated switch features dual operators with green and red LEDs, rugged IP66/IP67/IP69K ratings, and supports high cycle durability with a spring return spring release. Its compact 22mm size fits seamlessly into control panels, providing visual indication and operational safety. With certified standards and corrosion-resistant materials, this pushbutton guarantees longevity and optimal performance in demanding industrial control applications. Order now for fast delivery and dependable operation.
Get Schneider ZB4BW7A37417 today—built for precision, durability, and high protection against harsh environments in industrial control systems.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BW7A37417?
You can click on the BUY or RFQ button to purchase ZB4BW7A37417 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BW7A37417?
You can download the ZB4BW7A37417 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BW7A37417?
Schneider Electric
