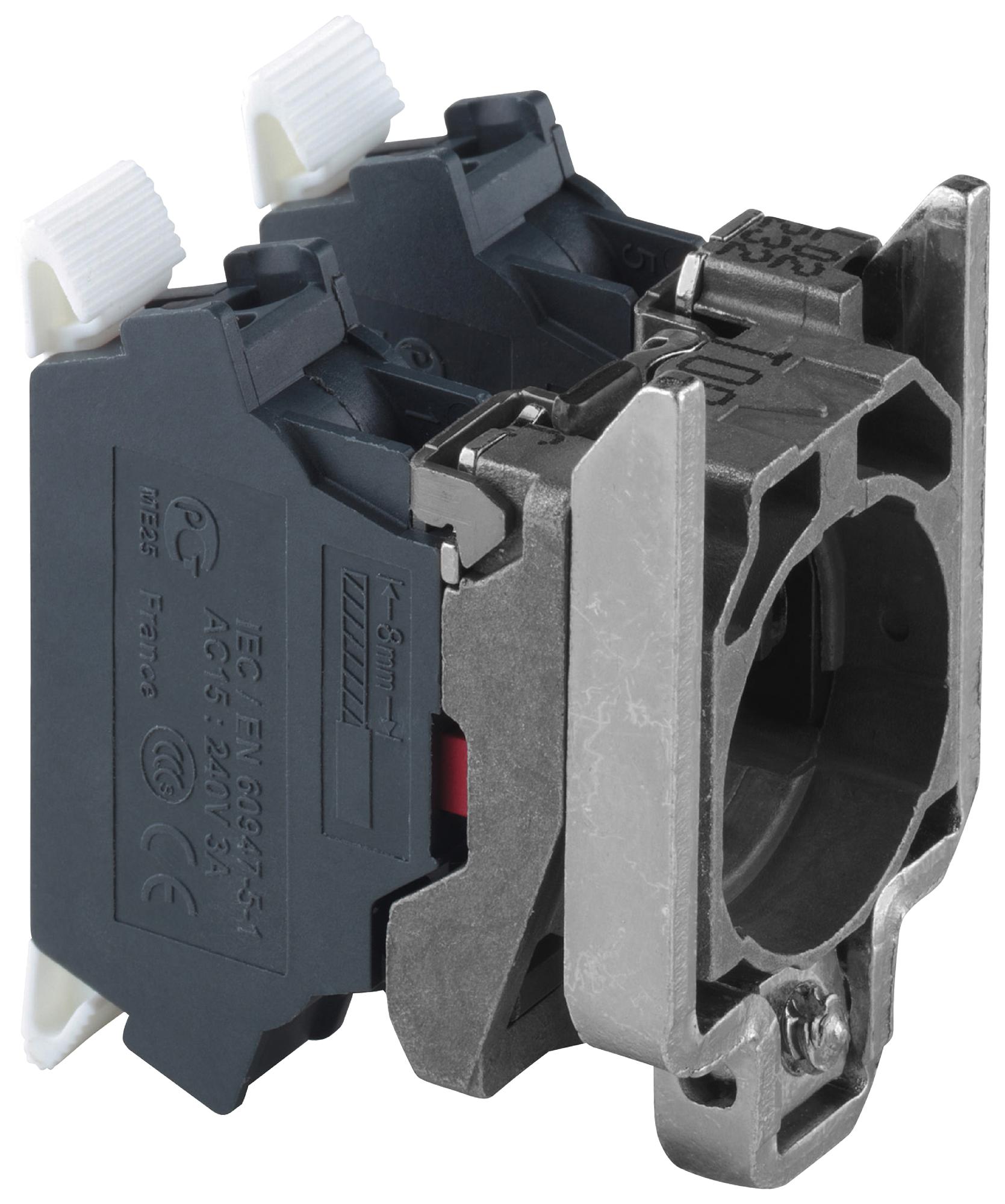

Schneider Electric ZB4BZ1035 Industrial Contact Block
The ZB4BZ1035 is a single contact block with a body and fixing collar made of Zamak, designed for industrial switching applications. It features 2NO contacts with slow-break operation, silver alloy (Ag/Ni) contacts for high reliability, and spring clamp terminals for easy wiring. The device is conformant with IEC and UL standards, offering IP20 protection, and can withstand up to 5 million cycles for durability. Suitable for control panels and automation systems, it measures 30mm in width, 47mm in height, and 37mm in depth, with a operating travel of 2.6mm to 4.3mm.
Schneider Electric ZB4BZ1035 Industrial Contact Block Specifications:
- Range of product: Harmony XB4
- Device short name: ZB4
- Contacts type and composition: 2NO, silver alloy (Ag/Ni)
- Contacts operation: Slow-break
- Device composition: Body
- Fixing collar material: Zamak
- Connections: Spring clamp terminals
- Overall width: 30mm
- Overall height: 47mm
- Overall depth: 37mm
- Weight: 0.062 kg
- Contacts usage: Standard contacts
- Positive opening: Without positive opening
- Operating travel: 2.6 mm (NO changing electrical state), 4.3 mm (total travel)
- Operating torque: 0.05 N.m
- Mechanical durability: 5,000,000 cycles
- Ambient temperature for storage: -40°C to +70°C
- Ambient temperature for operation: -25°C to +70°C
- Protection degree: IP20
- Standards: IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Certifications: DNV, Lloyds Register, BV, CSA, UL, GL, RINA
- Mounting: Panel cut-out suitable for pushbuttons, switches, pilot lights
Buy the Buy Harmony XB4 Part Number ZB4BZ1035 Online
Purchase the Harmony XB4 ZB4BZ1035 contact block online today for industrial automation projects. With high durability, silver alloy contacts, and easy spring clamp connections, this control component ensures reliable switching performance. Its compact 30mm width and robust Zamak body make it ideal for secure panel mounting. Designed to withstand millions of cycles and conformant with IEC, UL, and CSA standards, it provides safe, long-lasting operation in demanding environments. Get yours now for quick, dependable installation and enhanced control system reliability.
Order your Harmony XB4 ZB4BZ1035 contact block today and ensure reliable switch operation in your industrial control panels.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4BZ1035?
You can click on the BUY or RFQ button to purchase ZB4BZ1035 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4BZ1035?
You can download the ZB4BZ1035 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4BZ1035?
Schneider Electric
