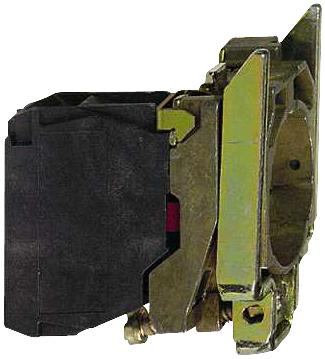

Schneider Electric ZB4BZ141 Industrial Contact Block
The ZB4BZ141 is a versatile single contact block with body and fixing collar, featuring 1NO and 2NC screw clamp terminals. It is designed for use in industrial control and automation systems, offering long mechanical durability of 5 million cycles and a compact 30mm width. Certified for UL, CE, CSA, and other standards, it ensures reliable operation in various environments with IP20 protection. Its silver alloy contacts and positive opening mechanism facilitate safe, precise switching, making it ideal for control panels, pushbuttons, and switches.
Schneider Electric ZB4BZ141 Industrial Contact Block Specifications:
- Overall width: 30 mm
- Overall height: 47 mm
- Overall depth: 37 mm
- Fixing collar material: Zamak
- Contacts type: 1NO + 2NC, slow-break
- Contacts material: Silver alloy (Ag/Ni)
- Connection terminals: Screw clamp with 2 x 1.5 mm², 1 x 0.22 mm²
- Mechanical durability: 5,000,000 cycles
- Cleaning and wiring: IP20 protection, compatible with screw and Faston connectors
- Contact operation: 1.5 mm travel for NC, 2.6 mm for NO, total 4.3 mm
- Rated insulation voltage: 600 V
- Rated impulse withstand voltage: 6 kV
- Operating torque: 0.05 N.m
- Tightening torque: 0.8 to 1.2 N.m
- Certifications: UL, CSA, BV, RINA, DNV, Lloyds
- Vibration resistance: 5 gn
- Shock resistance: 30 to 50 gn
- Ambient temperature: -40°C to +70°C
- Standards: UL 508, EN/IEC 60947 series
Buy the SQUARE Series Contact Block: ZB4BZ141
Enhance your control panel with the durable ZB4BZ141 contact block, featuring 1NO and 2NC contacts with screw clamp terminals. Its high mechanical durability ensures millions of switching cycles, making it ideal for automation and industrial control systems. Certified for UL, CSA, and IEC standards, it provides reliable performance in various environments. Compact design with IP20 protection allows easy installation on panels and control devices. Improve system reliability with this high-quality, long-lasting contact block tailored for demanding industrial applications.
Get ZB4BZ141 today—built for precision and long-lasting durability in industrial control applications.
