Schneider Electric ZB4FA432 Pushbutton Head

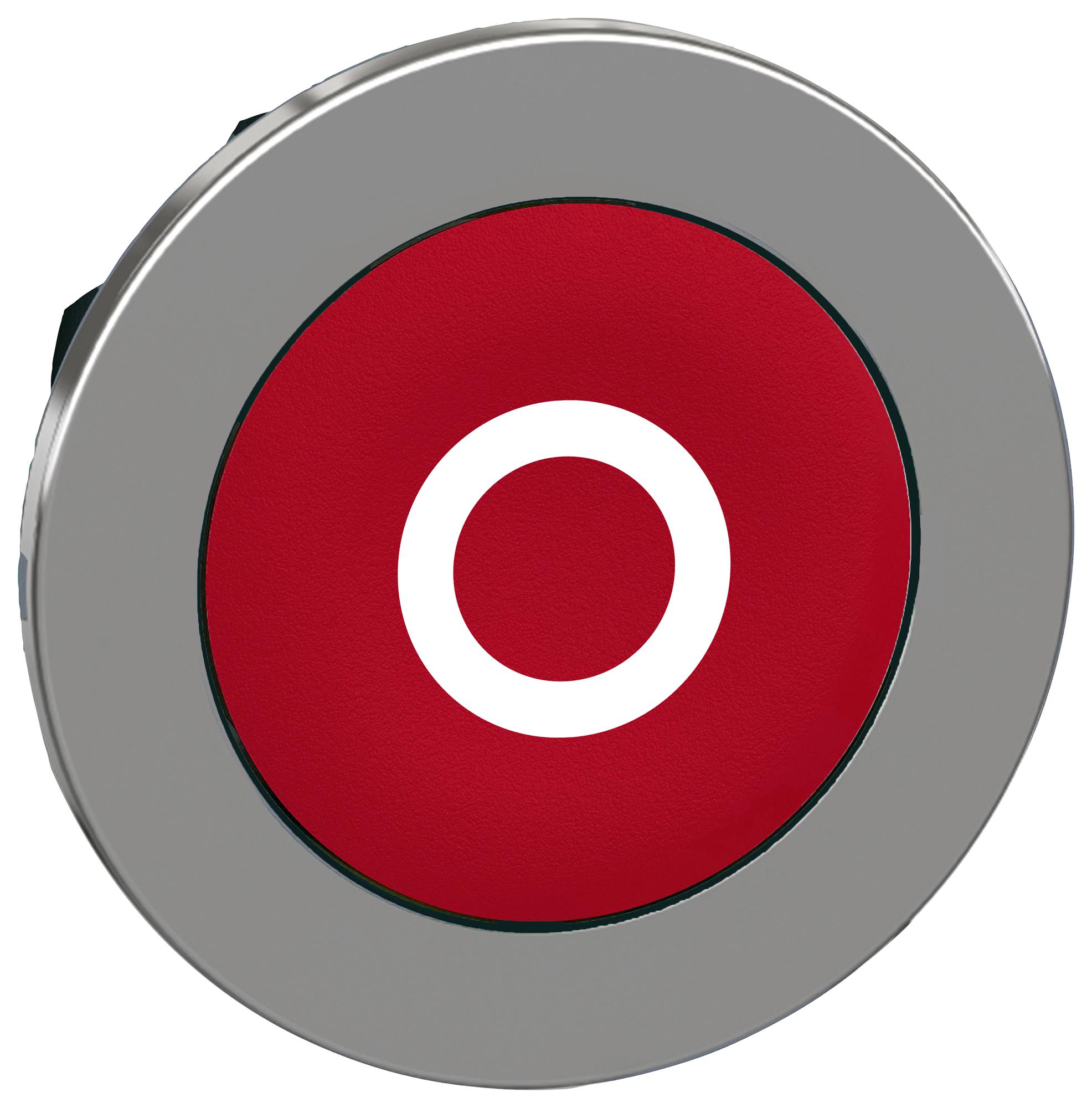

The ZB4FA432 is a flush-mounted, non-illuminated pushbutton head with a round shape and a red flush operator profile marked with an 'O' in white. Designed for industrial control systems, it features a chromium-plated metal bezel, 30.5 mm mounting diameter, and built-in-flush head type. The device is built to endure up to 10 million mechanical cycles, with an IP66/IP67/IP69 conforming protection level suitable for harsh environments. Compliant with IEC and UL standards, it is UL listed, CSA certified, and offers a 18-month warranty, making it ideal for automation and control applications.
Schneider Electric ZB4FA432 Pushbutton Head Specifications:
- Range of product: Harmony XB4
- Device type: Head for non-illuminated push-button
- Mounting diameter: 30.5 mm
- Shape: Round
- Head type: Built-in-flush
- Operator profile: Red flush, O (white)
- Bezel material: Chromium plated metal
- Overall width: 36.6 mm
- Overall height: 36.6 mm
- Overall depth: 31 mm
- Mechanical durability: 10,000,000 cycles
- Protection level: IP66, IP67, IP69, IP69K conforming to IEC 60529
- Vibration resistance: 5 gn at 10-500 Hz
- Shock resistance: 30 gn for 18 ms, 50 gn for 11 ms
- Environmental operating temperature: -40°C to +70°C
- Standards: IEC 60947-5-1, IEC 60947-5-4, UL 508, CSA C22.2 No 14, CE
- Certifications: UL listed, CSA certified, EAC
- Warranty: 18 months
- Sustainable offer: Green Premium product
Buy the Buy Harmony XB4 Part Number ZB4FA432 Online
Purchase the Harmony XB4 pushbutton head ZB4FA432 online today and ensure your automation system benefits from a highly durable, IP66/IP67/IP69 rated component. With a rugged construction and excellent shock and vibration resistance, this non-illuminated round control element is designed for demanding industrial environments. Featuring a built-in-flush head, it guarantees a sleek and reliable operation, backed by an 18-month warranty and multiple safety certifications, making it the ideal choice for industrial control and automation projects.
Buy Harmony XB4 ZB4FA432 now and experience unmatched reliability and performance in control panel applications.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4FA432?
You can click on the BUY or RFQ button to purchase ZB4FA432 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4FA432?
You can download the ZB4FA432 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4FA432?
Schneider Electric
