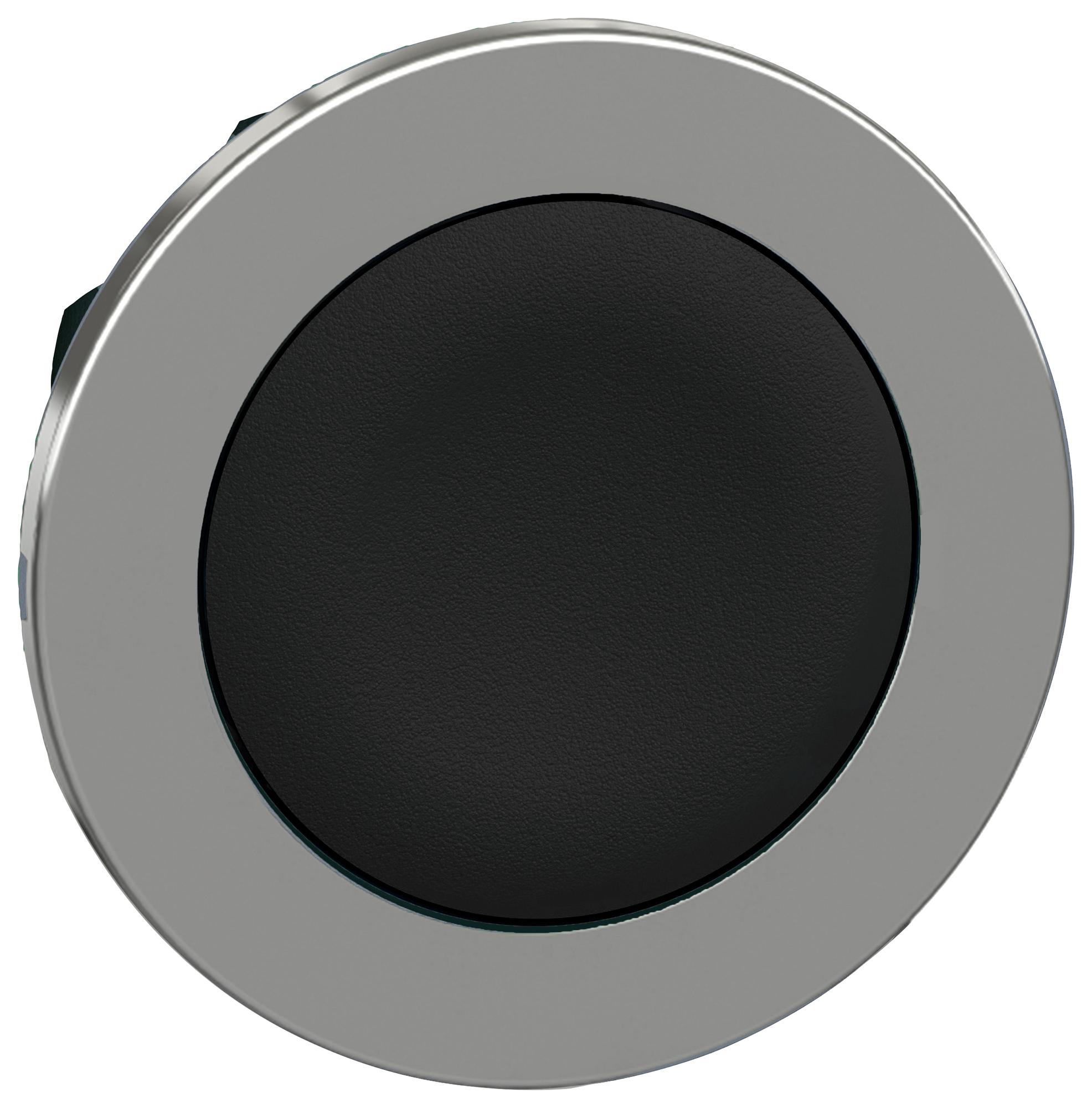

Schneider Electric ZB4FA8 Flush Mounted Pushbutton
The ZB4FA8 is a grey flush mounted, non-illuminated pushbutton head designed for robust control panel applications. Featuring a round shape with spring return operation, it offers high durability with up to 10 million cycles. The device is constructed with a chromium-plated metal bezel and mounts with a 30.5 mm diameter. It complies with IP66, IP67, and IP69 standards for water and dust resistance, making it suitable for harsh industrial environments. Its versatile electrical composition code supports various contact configurations, ensuring reliable operation across multiple control systems.
Schneider Electric ZB4FA8 Flush Mounted Pushbutton Specifications:
- Range of product: Harmony XB4
- Device short name: ZBAF
- Head type: Built-in-flush
- Shape of signaling unit: Round
- Operator profile: Grey flush, unmarked
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.44 in (36.6 mm)
- Overall depth: 1.22 in (31 mm)
- Mechanical durability: 10,000,000 cycles
- Bezel material: Chromium plated metal
- IP degree of protection: IP66, IP67, IP69
- Environmental temperature: -40...158°F (-40...70°C)
- Vibration resistance: 5 gn 10...500 Hz
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Certifications: UL Listed, CSA, CE, EAC
- Standards: IEC 60947-5-1, IEC 60947-5-4, UL 508
- Warranty: 18 months
Buy the Buy Schneider Electric ZB4FA8 Part Number ZB4FA8 Online
Experience reliable switching with the Schneider Electric ZB4FA8 flush mounted pushbutton head, designed for harsh industrial environments. Easy to install with a 30.5 mm mounting diameter, it features corrosion-resistant chromium plating and IP69K water and dust protection. Its robust construction supports up to 10 million operating cycles, ensuring long-lasting performance. Perfect for control panels requiring durable and water-resistant components, this pushbutton delivers dependable operation in demanding applications. Buy online to enhance your automation system with quality and resilience.
Get Schneider Electric ZB4FA8 today—built for durability in harsh industrial environments with water-resistant IP69 protection and high cycle life.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4FA8?
You can click on the BUY or RFQ button to purchase ZB4FA8 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4FA8?
You can download the ZB4FA8 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4FA8?
Schneider Electric
