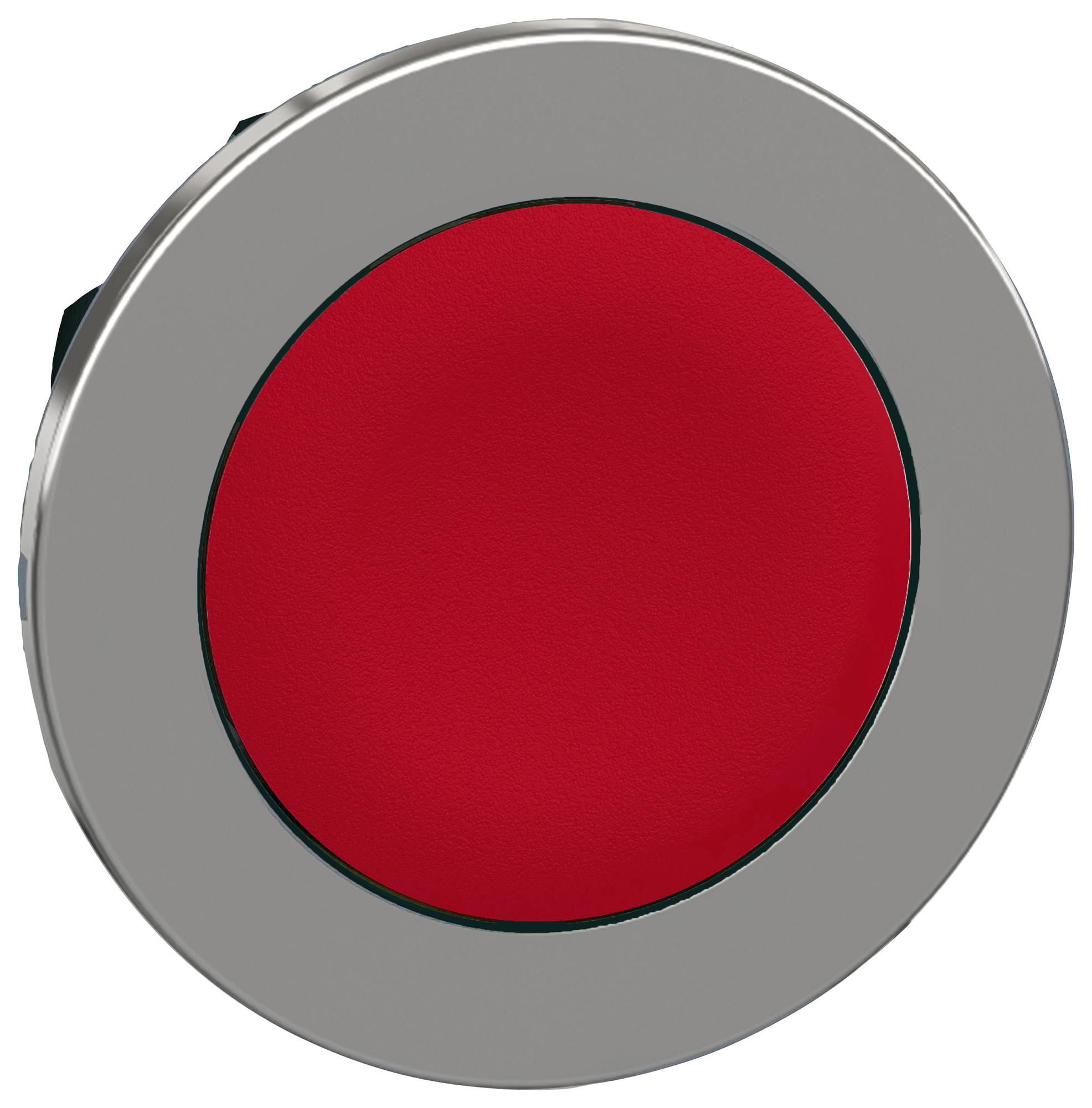

Schneider Electric ZB4FH0 Push Button Switch
The ZB4FHO is a non-illuminated, flush-mounted push button head designed for industrial control panels. With a round shape and built-in-flush head profile, it features a chromium-plated metal bezel and mounting diameter of 30.5 mm (1.20 in). It offers high durability with 500,000 cycles, complying with IP66, IP67, IP69/IP69K ratings for protection against dust and water ingress. Suitable for environments with temperatures from -40°C to +70°C, the device meets multiple safety standards including UL, CSA, and CE, ensuring reliable operation in demanding conditions.
Schneider Electric ZB4FH0 Push Button Switch Specifications:
- Bezel Material: Chromium plated metal
- Mounting Diameter: 30.5 mm (1.20 in)
- Shape: Round
- Head Type: Built-in-flush
- Operator Profile: Push-push without cap
- Overall Width: 36.6 mm (1.44 in)
- Overall Height: 36.6 mm (1.44 in)
- Overall Depth: 31 mm (1.22 in)
- Mechanical Durability: 500,000 cycles
- Protection Ratings: IP66, IP67, IP69/IP69K, Type 13, Type 12, Type 4, Type 4X UL 50E
- Ambient Temperature (Operation/Storage): -40°C to +70°C (-40°F to +158°F)
- Vibration Resistance: 5 gn at 10-500 Hz
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms), 25 gn for 1000 shocks
- Standards Compliances: IEC 60947-5-1, IEC 60947-5-4, UL 508, JIS C8201-5-1, CE
- Certifications: UL Listed, CSA, CCC, EAC
- Environmental: REACh, EU RoHS compliant, Toxic heavy metal free, Mercury free
- Warranty: 18 months
Buy the Buy Schneider Electric ZB4FHO Part Number ZB4FH0 Online
Purchase the Schneider Electric ZB4FHO flush-mounted push button head online today. Designed for industrial control panels, it features a robust chromium-plated metal bezel, IP69K rated protection, and a durable 500,000 cycle lifespan. With universal standards compliance including UL, CSA, and CE certifications, this push button ensures reliable performance across demanding environments. Easy to install with its 30.5 mm diameter, it is ideal for automation, machinery, and control systems that require high durability and safety compliance. Order now for fast delivery and dependable operation.
Buy Schneider Electric ZB4FHO now and experience high durability and environmental resistance in industrial control applications.
