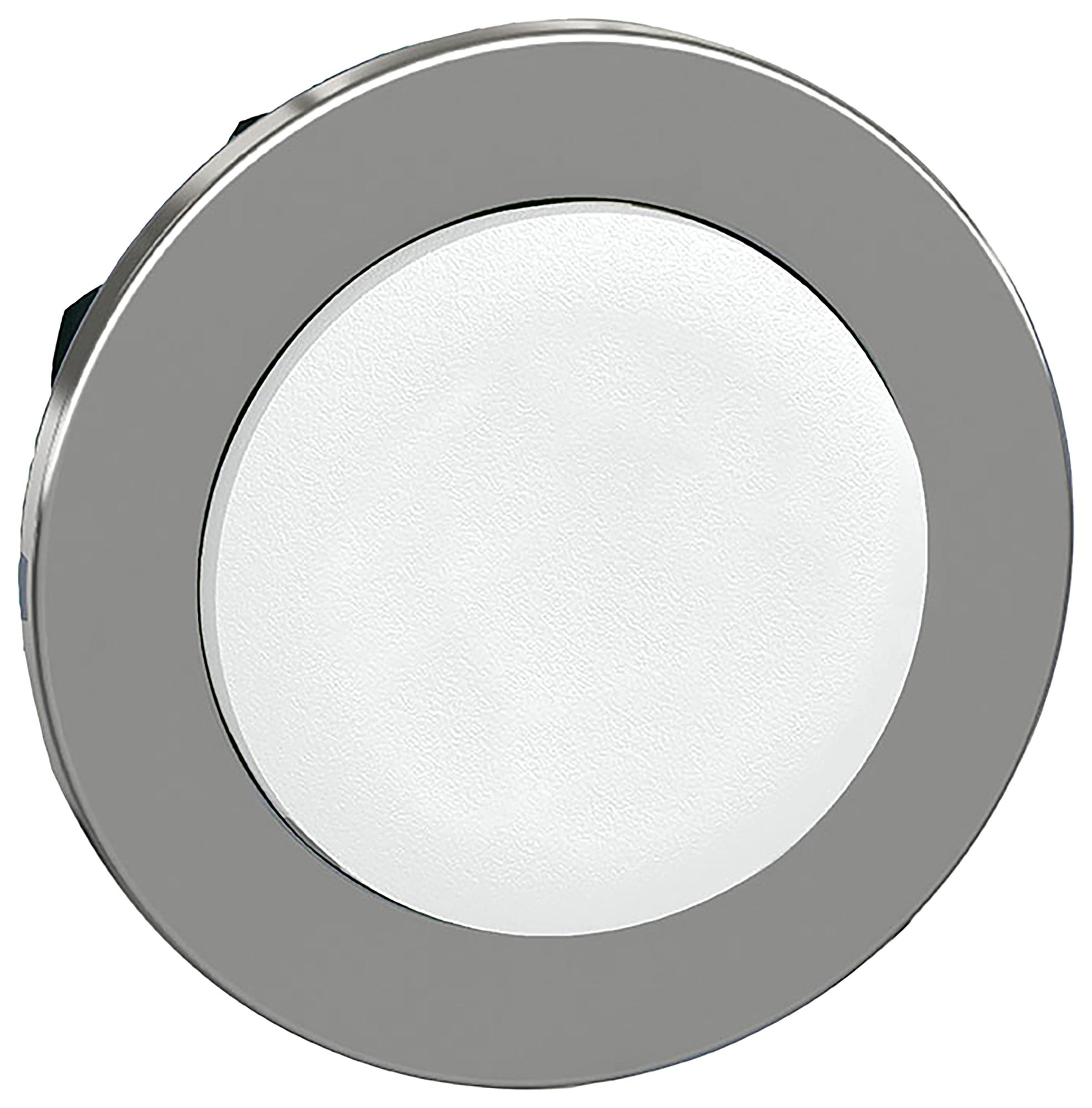

Schneider Electric ZB4FH013 Illuminated Pushbutton
The illuminated push-button head is designed for flush mounting in control panels and equipment, featuring a round shape with a white unmarked operator profile. It supports integral LED lighting, offering high resistance to high-pressure washing up to 7,000,000 Pa at 55°C, and is rated for mechanical durability of 500,000 cycles. The head conforms to IP66, IP67, IP69, and IP69K protection standards, and is suitable for demanding industrial environments with an operating temperature range of -40 to 70°C. It includes multistandard certifications such as UL, CSA, CE, and EAC, ensuring safety and reliability.
Schneider Electric ZB4FH013 Illuminated Pushbutton Specifications:
- Shape of signaling unit: Round
- Head type: Built-in-flush
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.44 in (36.6 mm)
- Overall depth: 1.22 in (31 mm)
- Net Weight: 0.13 Ib (0.058 kg)
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, distance: 0.1m
- Mechanical durability: 500,000 cycles
- Protection standards: IP66, IP67, IP69, IP69K, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- IK degree of protection: IKO6 conformance to IEC 50102
- Operating ambient air temperature: -40 to 158 °F (-40 to 70 °C)
- Storage ambient air temperature: -40 to 158 °F (-40 to 70 °C)
- Electrical shock protection class: Class IEC 60536
- Standards: CSA, EN/IEC 60947-5-1, -5-4, UL 508, IEC 60947-1, JIS C8201-5-1, CE
- Vibration resistance: 5 gn 10...500 Hz (IEC 60068-2-6)
- Shock resistance: 30 gn (18 ms) IEC 60068-2-27, 50 gn (11 ms) IEC 60068-2-27
- Certifications: UL Listed, CSA, CCC, EAC
- Environmental compliance: REACh, RoHS, China RoHS, Toxic heavy metal free, Mercury free
- Package weight: 1 lb (0.45 kg)
- Package dimensions: Height 1.69 in, Width 2.05 in, Length 2.47 in
- Warranty: 18 months
Buy the Schneider Electric Series Harmony XB4 Pushbutton: ZB4FH013
Purchase the high-quality illuminated pushbutton head ZB4FH013 online today to ensure your control panels are equipped with durable, IP69K-rated lights. This round, flush-mount operator features integral LED lighting, supporting multiple standards including UL, CSA, and CE. It withstands harsh environments with high-pressure washer resistance and over 500,000 cycles, making it ideal for demanding industrial applications. Order now to enhance your control system with a reliable, IP66/67/69K certified pushbutton designed for safety and longevity.
Buy Schneider Electric ZB4FH013 now and experience unmatched reliability and performance in industrial control applications.
