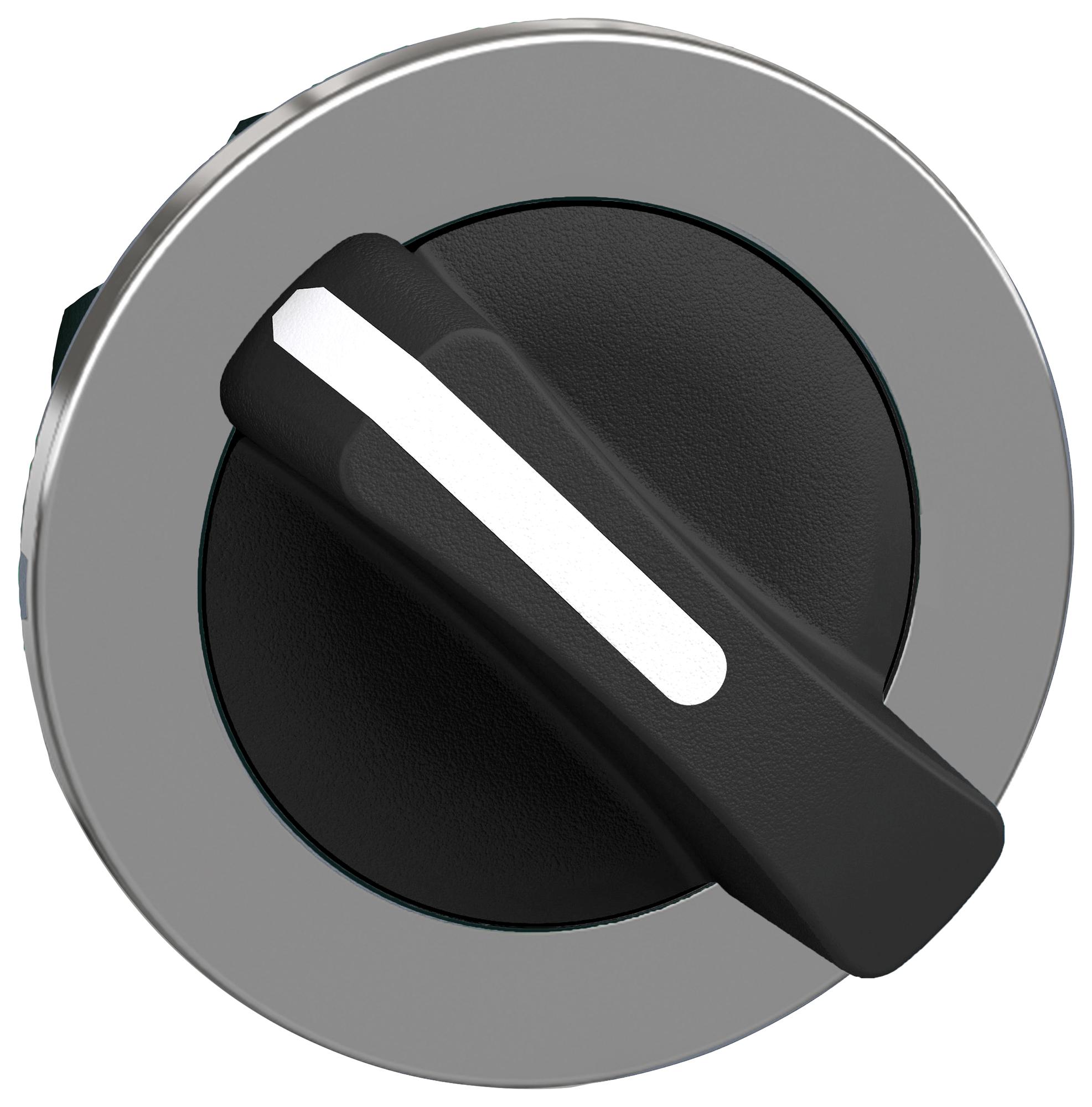

Schneider Electric ZB4FK1213 Selector Switch
The ZB4FK1213 is a flush-mounted white illuminated selector switch head designed for industrial control panels. It features a 2-position stay-put operator with a round shape, built-in-flush head, and integral LED lighting for clear visibility. Made from chromium-plated metal, it has a mounting diameter of 1.20 inches (30.5 mm) and complies with IP66, IP67, IP69, and IP69K ratings for excellent protection against dust, water, and mechanical impacts. The device supports high resistance to pressure washers, mechanical durability of 1,000,000 cycles, and operates within -40 to 158 °F (-40 to 70 °C). It conforms to international safety standards including IEC and UL certifications, making it suitable for demanding industrial environments.
Schneider Electric ZB4FK1213 Selector Switch Specifications:
- Shape of signaling unit: Round
- Head type: Built-in-flush
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.44 in (36.6 mm)
- Overall depth: 1.38 in (35 mm)
- Net weight: 0.17 lb (0.078 kg)
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1m distance
- Mechanical durability: 1,000,000 cycles
- Electrical composition code: M3, M6, M10, M4 configurations with integral LED
- Protection ratings: IP66, IP67, IP69, IP69K, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- IK degree of protection: IKO6
- Standards: IEC 60947-5-1, IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C8201-5-1, JIS C8201-1, CE
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30 gn IEC 60068-2-27 (18 ms), 50 gn IEC 60068-2-27 (11 ms, 1000 shocks)
- Ambient temperature for storage and operation: -40 to 158 °F (-40 to 70 °C)
- Certifications: UL Listed, CSA, CCC, EAC
- Package weight: 1 lb (0.45 kg)
- Package dimensions: Height 1.69 in, Width 2.05 in, Length 2.20 in
- Environmental standards: REACh compliant, RoHS compliant, Heavy metal free, Mercury free
- Warranty: 18 months
Buy the Schneider Electric Series Harmony XB4 Selector Switch: ZB4FK1213
Secure your control panel needs by purchasing the Schneider Electric Series Harmony XB4 selector switch online today. This durable, IP69-rated, 2-position illuminated switch delivers dependable operation in harsh environments. Its built-in-flush design ensures a sleek look, while the high mechanical durability of one million cycles guarantees long-lasting performance. Ideal for industrial automation, the switch features integrated LED lighting for visibility and complies with international standards including UL and IEC certifications. Simplify your installation process with quick mount design and maintain safety with reliable environmental protections. Buy now for quick delivery.
Order your Schneider Electric Series Harmony XB4 ZB4FK1213 today and equip your control panels with reliable, rugged ultraviolet- and IP-rated selector switches.
