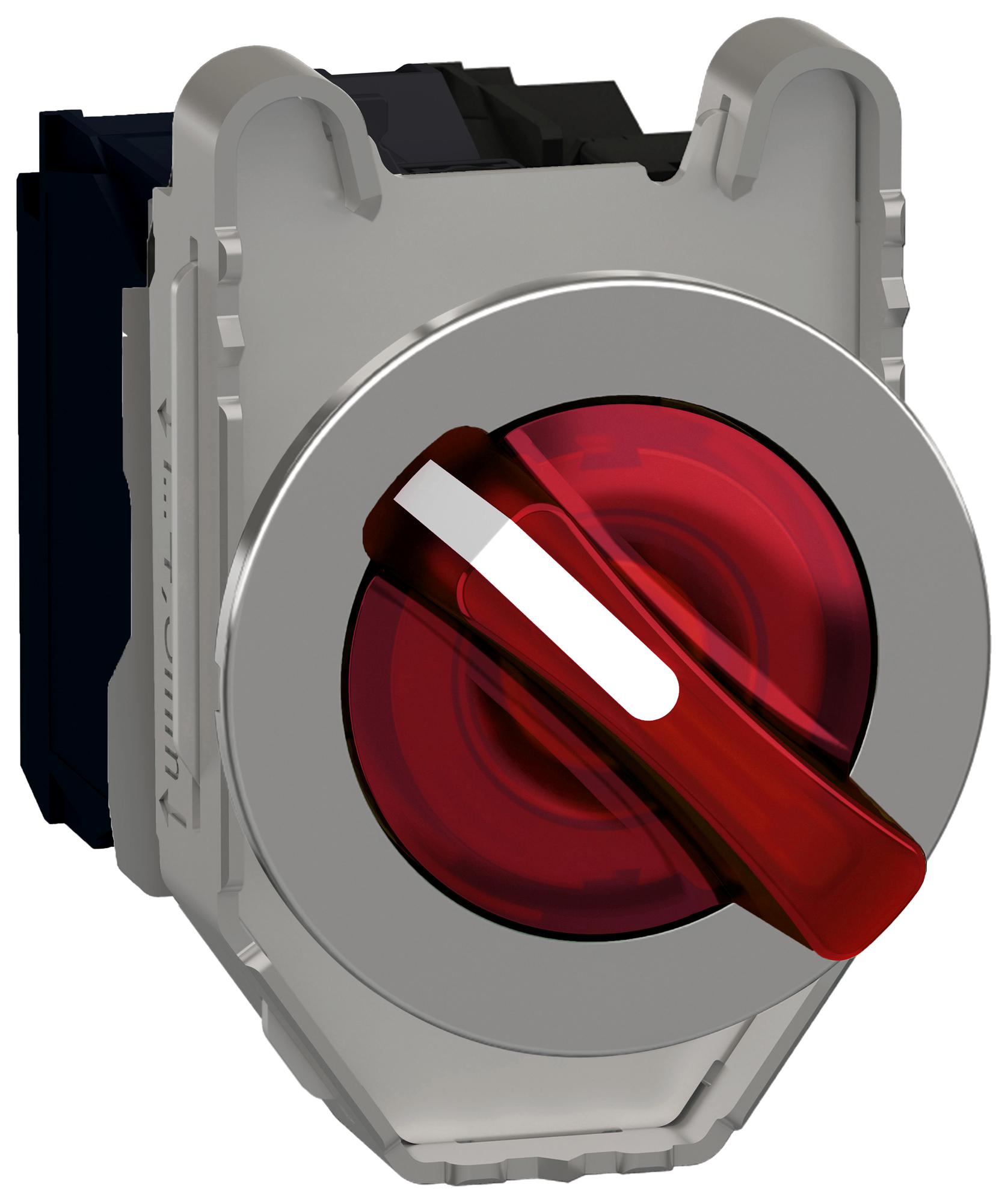

Schneider Electric ZB4FK1513 Industrial Selector Switch
The ZB4FK1513 is a flush-mounted, 3-position illuminated selector switch head designed for industrial control panels. Featuring a white standard handle, round signaling shape, and built-in LED illumination, it conforms to IP66, IP67, IP69, and IP69K ratings for superior protection. Its robust construction withstands mechanical durability of 500,000 cycles and high-pressure washer resistance of 7,000,000 Pa at 55°C. Suitable for environments requiring UL, CSA, CE, and other safety standards, this switch is ideal for industrial automation and machinery control applications, providing reliable operation in harsh conditions.
Schneider Electric ZB4FK1513 Industrial Selector Switch Specifications:
- Range of product: Harmony XB4
- Head type: Built-in-flush
- Mounting diameter: 1.20 in (30.5 mm)
- Shape of signaling unit: Round
- Head material: Chrome plated metal
- Operator profile: White standard handle
- Operator position: 3 positions +/- 45°
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.44 in (36.6 mm)
- Overall depth: 1.85 in (47 mm)
- Net weight: 0.17 Ib (0.078 kg)
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Mechanical durability: 500,000 cycles
- Protection IP66/IP67/IP69/IP69K conforming to IEC 60529
- Standards: UL 50E, IEC 60536, IEC 60529, IEC 50102, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30 gn IEC 60068-2-27
- Environmental: Operating and storage temperature -40°F to 158°F (-40°C to 70°C)
- Warranty: 18 months
- Certifications: UL Listed, CSA, CCC, EAC
Buy the Schneider Electric ZB4FK1513 – Reliable Industrial Selector Switch for Control Panels
Enhance your control panel with the Schneider Electric industrial selector switch. Featuring a durable built-in LED and IP69 protection, it withstands harsh environments. Its quick installation, high mechanical durability, and compliance with global safety standards make it suitable for automation, machinery, and manufacturing applications. Order online today to benefit from fast delivery, competitive pricing, and trusted quality. Ensure reliable process control with this versatile, rugged switch designed for demanding industrial use in any factory or automation environment.
Buy Schneider Electric ZB4FK1513 now and experience unmatched reliability and performance in industrial automation.
