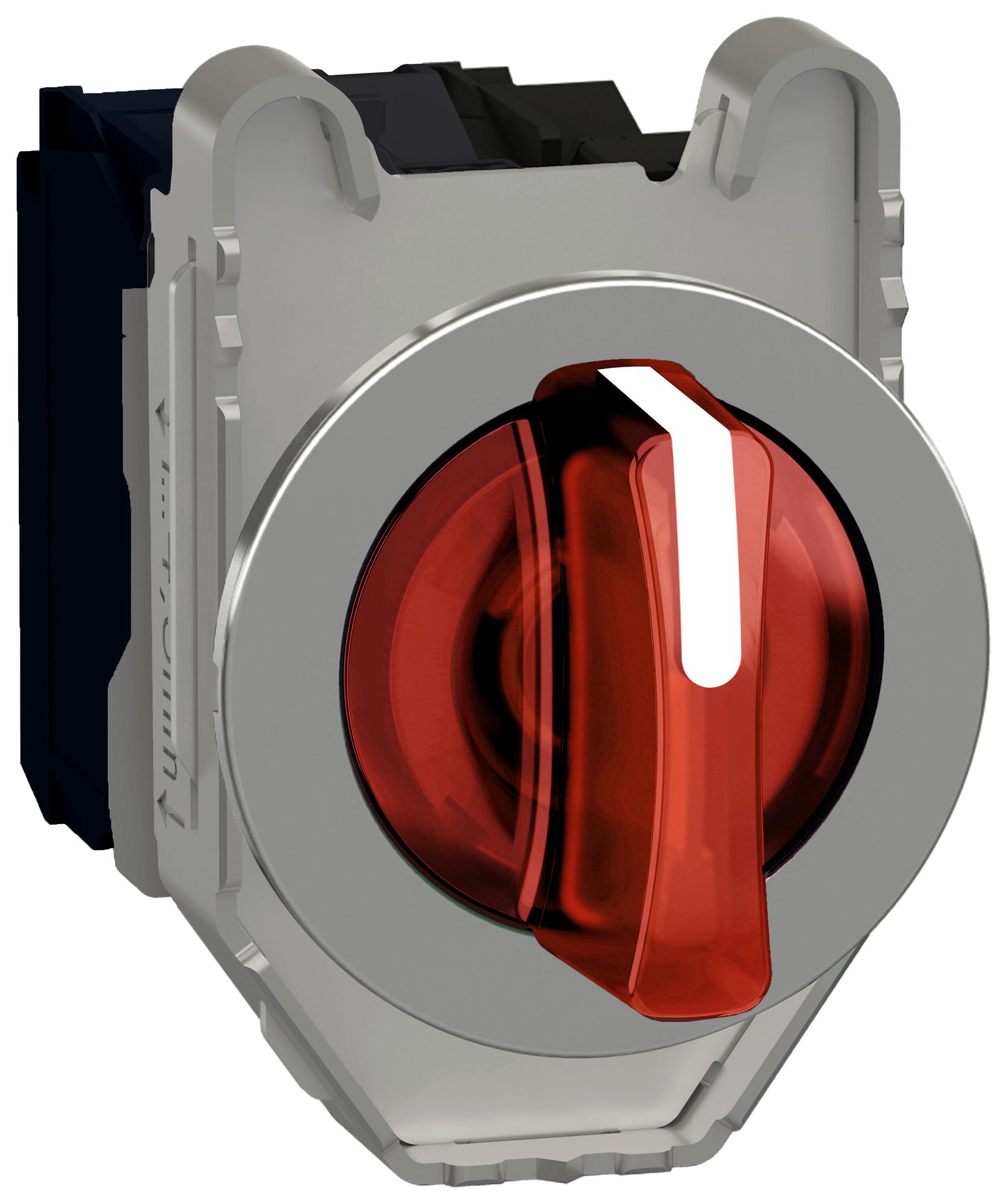

Schneider Electric ZB4FK1753 Selector Switch
The ZB4FK1753 is a flush-mounted orange illuminated selector switch featuring three positions with return left to center, designed for industrial control panels. It offers IP66, IP67, IP69, and IP69K protection ratings, ensuring high resistance to dust, water, and high-pressure cleaning. The device is built for durability with a mechanical lifespan of 500,000 cycles and withstands harsh environments with an operating temperature range of -40°C to +70°C. Suitable for automation and machinery control applications, its compact design includes an integral LED and a chromium-plated metal bezel for long-lasting performance.
Schneider Electric ZB4FK1753 Selector Switch Specifications:
- Mounting Diameter: 30.5 mm (1.20 in)
- Overall Width: 36.6 mm (1.44 in)
- Overall Height: 36.6 mm (1.44 in)
- Overall Depth: 47 mm (1.85 in)
- Bezel Material: Chromium plated metal
- Head Type: Built-in flush
- Shape: Round
- Operator Profile: Orange standard handle
- Number of Positions: 3 with return left to center
- Position Angle: +/-45°
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, 0.1m distance
- Mechanical Durability: 500,000 cycles
- Protection Ratings: IP66, IP67, IP69, IP69K, Type 13, Type 12, Type 4, Type 4X UL
- Vibration Resistance: 5 gn, 10-500 Hz
- Shock Resistance: 30 gn (18 ms), 50 gn (11 ms, 25 gn 6 ms shocks on each axis)
- Operating Temperature Range: -40°C to +70°C
- Certifications: UL Listed, CSA, CCC, EAC
- Warranty: 18 months
- Shipping Package: 1 unit, weight 0.45 kg (1 lb), dimensions 2.47 x 2.05 x 1.69 in
Buy the Schneider Electric Series Harmony XB4 Selector Switch: ZB4FK1753
Purchase the Schneider Electric Harmony XB4 selector switch ZB4FK1753 online now to upgrade your control panels with a durable, IP69K rated, and environmentally resistant device. Its compact round design, built-in LED, and three-position operator make it ideal for industrial automation, machinery, and process control applications. With a proven lifespan of 500,000 cycles, this reliable switch withstands harsh conditions, high-pressure washing, and temperature extremes. Secure your inventory today for efficient, dependable operation across demanding industrial environments.
Order your Schneider Electric Series Harmony XB4 ZB4FK1753 today and ensure reliable control with high durability and top-grade protection for industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB4FK1753?
You can click on the BUY or RFQ button to purchase ZB4FK1753 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB4FK1753?
You can download the ZB4FK1753 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB4FK1753?
Schneider Electric
