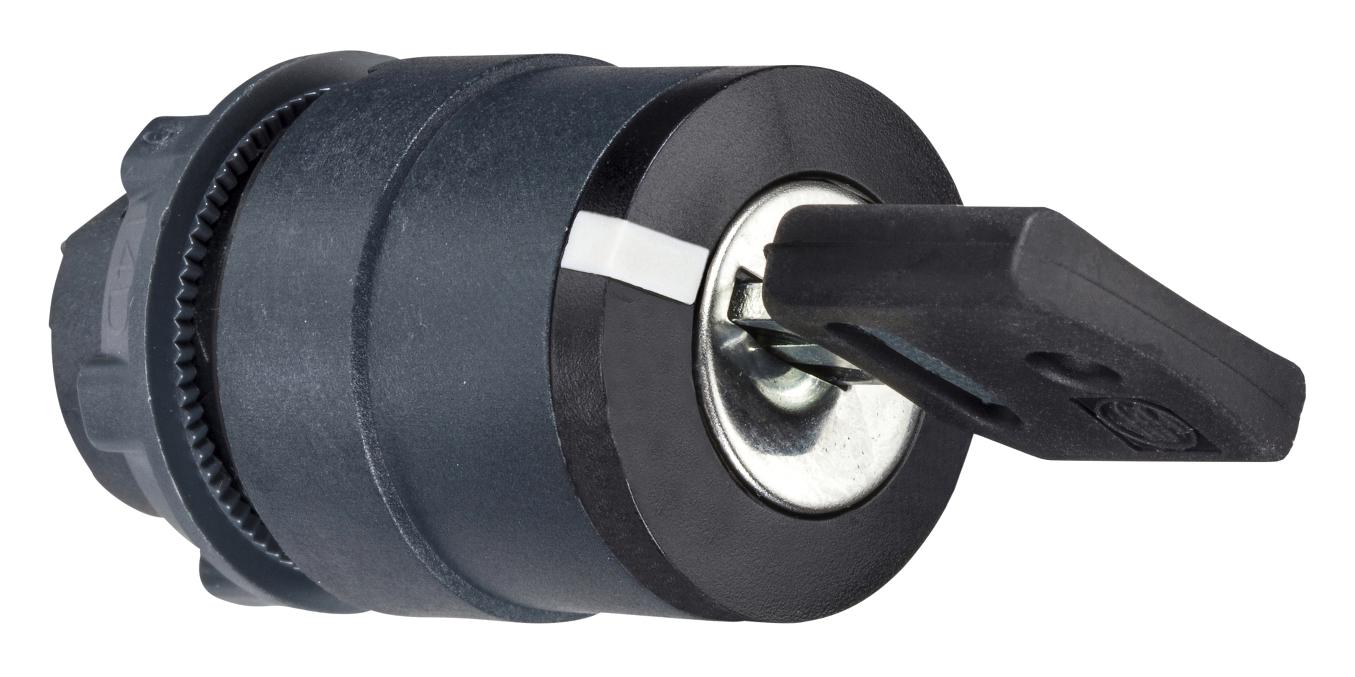

Schneider Electric ZB5AG4 Key Switch Selector Head
The ZB5AG4 is a black plastic key switch selector head designed for 22mm panel mounting. It offers two positions at 90°, staying put, with a Ronis 455 keylock profile. This round signaling head features IP66, IP67, IP69K protection ratings, and NEMA 4X, 13 certifications, ensuring durability in harsh environments. Suitable for automation and control applications, it withstands overvoltage categories, vibration, and shock resistance, with a mechanical life of one million cycles. Its compact design fits panel cut-outs of approximately 22.5 mm with screw or plug-in connections, making it ideal for industrial switchgear.
Schneider Electric ZB5AG4 Key Switch Selector Head Specifications:
- Mounting diameter: 22 mm (0.87 in)
- Shape of signaling unit: Round head
- Head type: Standard
- Position: 2 positions at 90°
- Operator profile: Black key switch
- Key lock: Ronis 455
- Overall dimensions: Width 29 mm (1.14 in), Height 29 mm (1.14 in), Depth 72 mm (2.83 in)
- Net Weight: 0.13 Ib (0.057 kg)
- Mechanical durability: 1,000,000 cycles
- Protection ratings: IP66, IP67, IP69K
- NEMA ratings: 13, 4X
- Vibration resistance: 5 gn, 2...500 Hz
- Shock resistance: 30 gn for 18 ms, 50 gn for 11 ms
- Environmental temperature: -40°C to +70°C (-40°F to +158°F)
- Standards: UL 508, IEC/EN 60947-5-1, JIS C8201-5-1, CSA C22.2 No 14
- Certifications: UL Listed, DNV, Lloyd’s Register, BV, RINA, GL
- Height: 29 mm (1.14 in), Width: 29 mm (1.14 in), Depth: 72 mm (2.83 in)
- Connection: Screw clamp terminals, plug-in connectors or printed circuit board
- Panel cut-out: ~22.5 mm (0.89 in)
Buy the Schneider Electric Series XB5 ZB5AG4: Key Switch Selector Head
Enhance your control panel with the ZB5AG4 key switch selector head. Crafted with durable plastic, it features IP69K protection, 2 positions at 90°, and a robust design suitable for harsh environments. Its compact round shape ensures easy installation on 22mm panels, with connections via screw clamp, plug-in, or PCB. Certified for industrial use, it withstands vibration, shocks, and extreme temperatures. Perfect for automation projects requiring reliable, long-lasting switching solutions—order online today and improve your equipment’s safety and functionality.
Buy Schneider Electric ZB5AG4 now and experience unmatched durability and reliable control in industrial automation systems.
