Schneider Electric ZB5AP5 Pushbutton Head

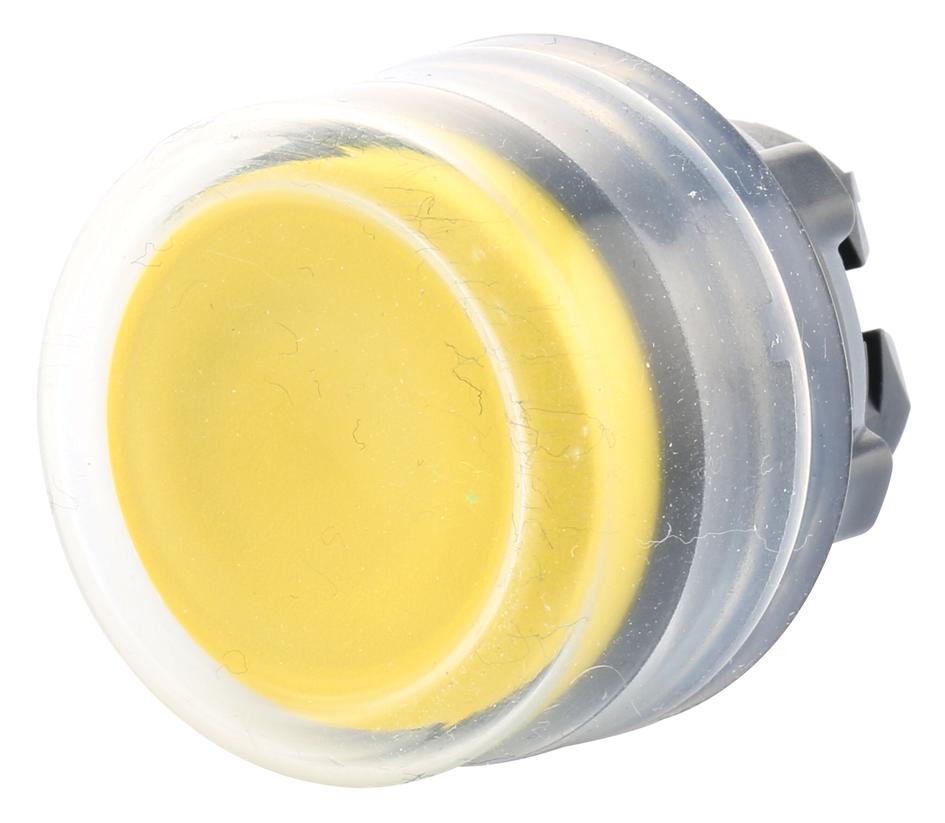

The ZB5AP5 is a yellow projecting pushbutton head designed for non-illuminated operations, mounted with a 22mm diameter. It features a spring return operator profile, durable for 10 million cycles, and is suitable for industrial control applications. Its IP67 and IP66 ratings ensure excellent environmental protection, including resistance to high-pressure washers and vibrations. It conforms to EN/IEC 60947 standards and carries certifications from UL, CE, and others. The unit is compatible with printed circuit board connections and has a 30mm overall width and height, with a depth of 35mm. It includes a clear boot and mounting accessories for reliable installation.
Schneider Electric ZB5AP5 Pushbutton Head Specifications:
- Range of product: Harmony XB5
- Device type: Head for non-illuminated push-button
- Shape of signaling unit head: Round
- Mounting diameter: 22 mm
- Overall width: 30 mm
- Overall height: 30 mm
- Overall depth: 35 mm
- Weight: 0.014 kg
- Mechanical durability: 10,000,000 cycles
- Protection class: IP67, IP66
- Protective treatment: TH
- Ambient operating temperature: -40°C to +70°C
- Environmental ratings: NEMA 13, NEMA 4X
- Resistance to high-pressure washer: 7,000,000 Pa at 55°C, distance 0.1m
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Vibration resistance: 5 gn
- Certifications: UL, CSA, GL, BV, DNV, RINA, Lloyd’s Register
- Standards: EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, JIS C 4520
- Electrical composition code: C15 for 1NO/0, 1NC, or combinations
- Connection: Screw clamp terminals, plug-in connectors, or printed circuit board mounting
- Mounting hole: ø22.4 mm with specific clearance requirements
- Mounting accessories: Fixing collars and anti-rotation plates available
Buy the Schneider Series XB5 Pushbutton: ZB5AP5
Order the Schneider ZB5AP5 pushbutton head online today to ensure a high-quality, durable control component for your industrial applications. This non-illuminated, round pushbutton with spring return design is suitable for various control panels, offering IP67 and IP66 ratings for excellent environmental protection. Its robust construction withstands millions of cycles, high-pressure washing, shocks, and vibrations. Perfect for automation and control systems, it guarantees long-lasting performance and reliable operation in demanding environments. Shop now for fast delivery and competitive pricing.
Buy Schneider ZB5AP5 now and experience unmatched reliability and performance with high durability and environmental resistance.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AP5?
You can click on the BUY or RFQ button to purchase ZB5AP5 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AP5?
You can download the ZB5AP5 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AP5?
Schneider Electric
