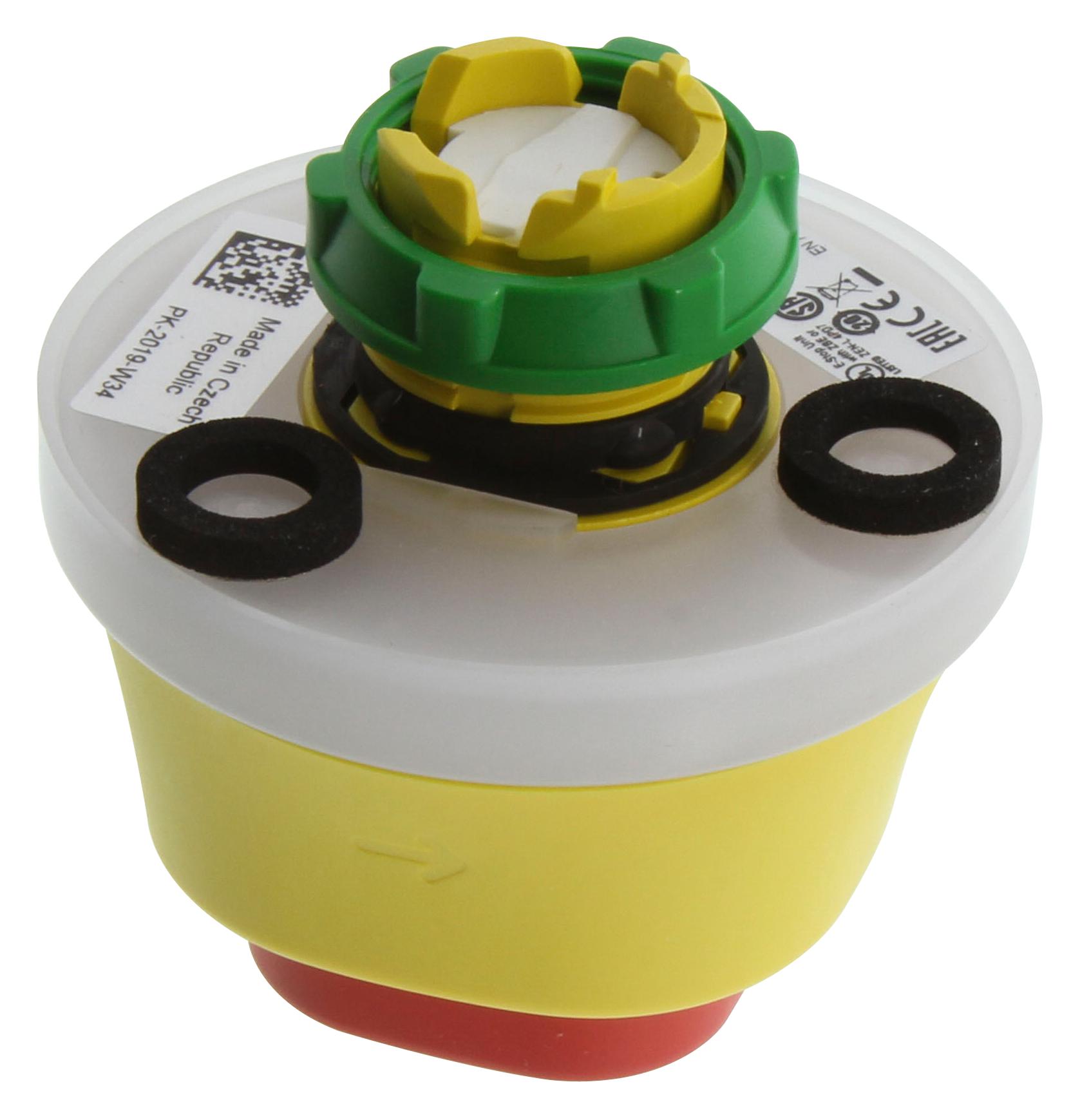

Schneider Electric ZB5AS84W00 Emergency Stop Button
This non-illuminated emergency stop pushbutton features a trigger action with a mechanical latching mechanism and turn-to-release operation for safety and reliability. Made of durable plastic with a red operator profile, it is rated IP66, IP67, IP69, and IP69K, providing excellent dust and water resistance suitable for harsh environments. Mountable with a 22mm diameter, it withstands rigorous mechanical durability up to 300,000 cycles. Ideal for safety applications in industrial machinery, it offers robust environmental protection, high resistance to electrostatic discharge, and compliance with standards such as EN/IEC 60947-5-1 and UL 508.
Schneider Electric ZB5AS84W00 Emergency Stop Button Specifications:
- Head diameter: 0.87 in (22mm)
- Shape: Round operator with red square profile 32 mm
- Material: Plastic construction with bezel material of plastic
- Electrical insulation class: Class II IEC 61140
- Resistance to electrostatic discharge: 4 KV on contact, 8 KV in free air
- Mechanical durability: 300,000 cycles
- Protection ratings: IP66, IP67, IP69, IP69K, Type 13, Type 12, Type 4, Type 4X UL
- Operating ambient temperature: -40°F to 158°F (-40°C to 70°C)
- Mounting diameter: 0.87 in (22mm)
- Certifications: UL Listed, CSA, EAC, CCC
- Shock resistance: 30 gn, 18 ms; 50 gn, 11 ms
- Vibration resistance: 5 gn from 2 Hz to 500 Hz
- Environmental resistance: High pressure washer resistance up to 1015 psi (7000000 Pa)
- Compliance: EN/IEC 60947-5-1, UL 508, UL 60947-5-1, UL 60947-5-5
Buy the Schneider Electric Series Harmony XB5 Emergency Stop Pushbutton: ZB5AS84W00
Secure your industrial safety system today by ordering the Schneider Electric Series Harmony XB5 emergency stop pushbutton. Engineered for durability, it features a robust plastic casing, exceptional resistance to dust and water with rated protection IP66, IP67, IP69K. Its trigger action with a turn-to-release mechanism ensures reliable operation and high durability of 300,000 cycles. The product is suitable for harsh environments, offering excellent electrostatic discharge resistance and compliance with international safety standards. Buy online now for quick, dependable safety solutions.
Order your Schneider Electric Series Harmony XB5 ZB5AS84W00 emergency stop pushbutton today and ensure reliable safety control in your industrial applications.
