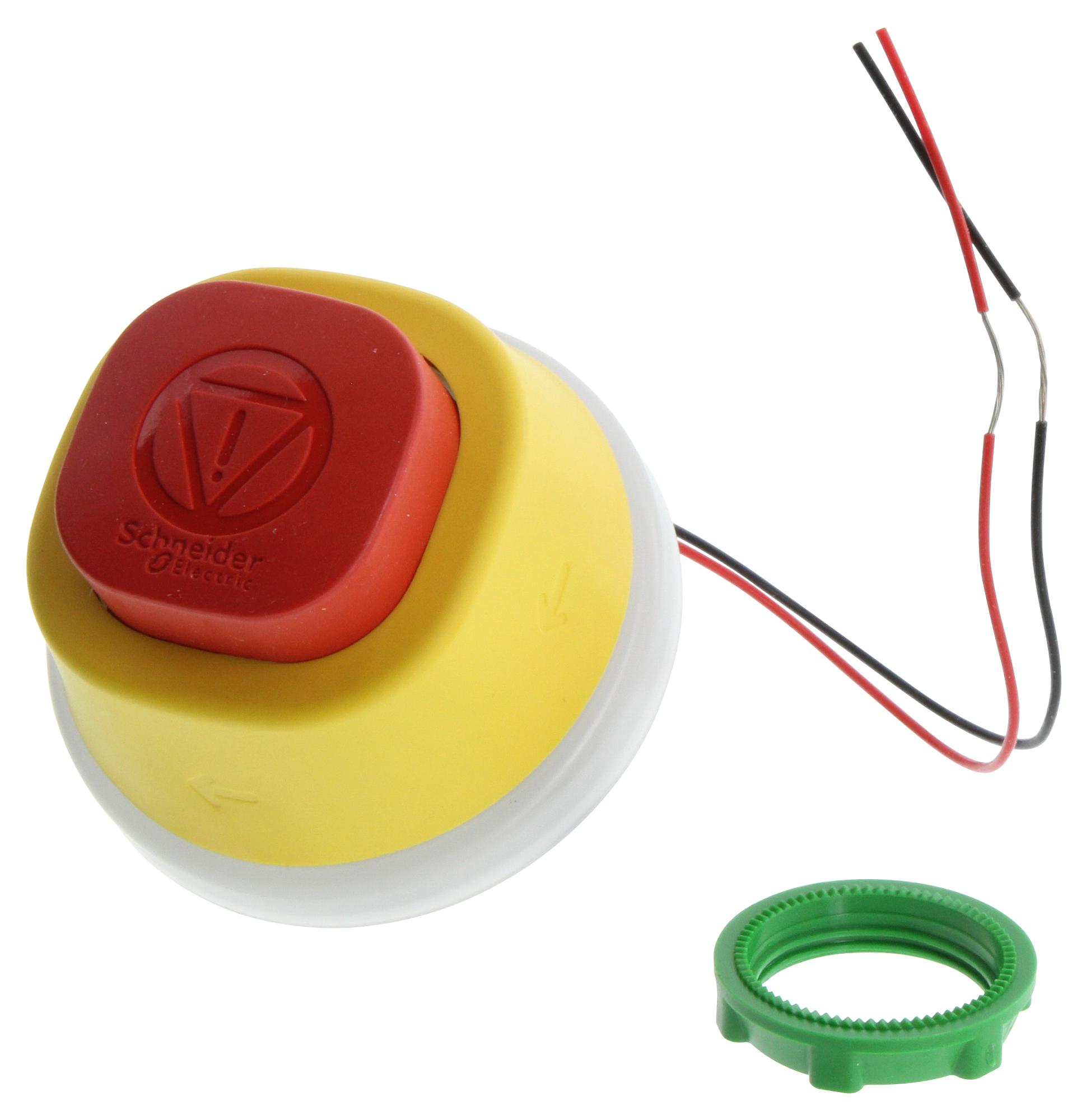

Schneider Electric ZB5AS84W2B Emergency Stop Head
Head for an illuminated emergency stop push-button with trigger action and mechanical latching mechanism. Designed to be turned to release, it operates at 24VAC/DC with a power consumption of 18mA. The unit features high ingress protection ratings of IP66, IP67, IP69, and IP69K, and is made of durable plastic. It includes a red fixed integral LED indicator, making it suitable for industrial safety applications requiring robust and reliable emergency stop controls.
Schneider Electric ZB5AS84W2B Emergency Stop Head Specifications:
- Mounting diameter: 22mm (0.87 in)
- Shape: Round signaling unit
- Head type: Standard
- Material: Plastic
- Ingress protection: IP66, IP67, IP69, IP69K
- Operating voltage: 24 V AC/DC, 50 to 60 Hz
- Supply voltage limits: 19.2 to 30 V DC, 21.6 to 26.4 VAC
- Electrical insulation class: Class II IEC 61140
- Resistance to electrostatic discharge: 4 KV contact, 8 KV air IEC 61000-4-2
- Mechanical durability: 300,000 cycles
- Light source color: Red
- Height and width (CAD): 2.36 in (60 mm)
- Depth (CAD): 1.57 in (40 mm)
- Net weight: 0.14 lb (0.063 kg)
Buy the Schneider Electric ZB5AS84W2B – Reliable Emergency Stop Head for Industrial Applications
Purchase the Schneider Electric emergency stop head ZB5AS84W2B online today for your safety and control systems. This durable plastic unit features a red LED indicator, IP66/IP67/IP69 ratings for superior ingress protection, and is built for demanding industrial environments. Its trigger latching mechanism ensures quick emergency shutdowns, while the operating voltage of 24V AC/DC provides reliable performance. With high mechanical durability of 300,000 cycles and compliance with international safety standards, this head guarantees robust safety control for industrial machinery.
Order your Schneider Electric SeriesZB5AS84W2B emergency stop head today and ensure your safety systems are reliable and compliant with industrial standards.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AS84W2B?
You can click on the BUY or RFQ button to purchase ZB5AS84W2B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AS84W2B?
You can download the ZB5AS84W2B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AS84W2B?
Schneider Electric
