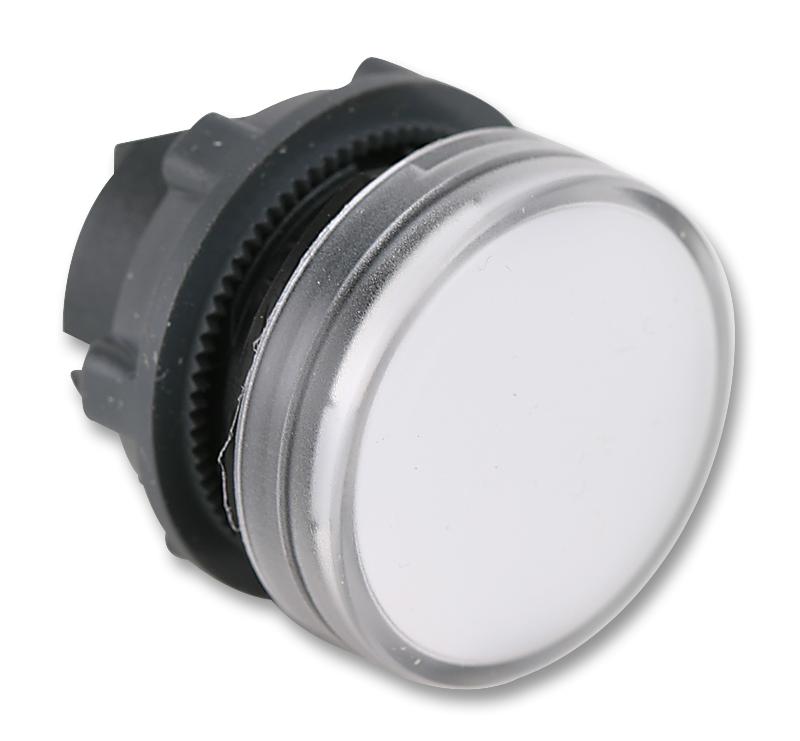

Schneider Electric ZB5AV013 Pilot Light Head
The ZB5AV013 is a round, white pilot light head with a plain lens suitable for integral LED applications in industrial signaling. Designed for 22mm mounting, it features IP67 protection, conforming to IEC 60529, and is resistant to high-pressure washers at 7000000 Pa. It withstands temperatures from -40°C to 70°C, making it ideal for demanding environments. Compatible with various mounting types, including front and rear, it meets standards like EN/IEC 60947-5-5, UL 508, and JIS C 4520. Its robust construction ensures long-term visibility and durability in automation panels.
Schneider Electric ZB5AV013 Pilot Light Head Specifications:
- Device type: Pilot light head for integral LED
- Shape: Round
- Color: White
- Lens: Plain
- Mounting diameter: 22 mm
- Overall dimensions: Width 29 mm, Height 29 mm, Depth 31 mm
- Protection level: IP67, conforming to IEC 60529, also IP66
- NEMA rating: 13, 4X
- Resistance to high-pressure wash: 7000000 Pa at 55°C, 0.1m distance
- Material: Plastic bezel
- Operating temperature: -40°C to +70°C
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 g (18 ms), 50 g (11 ms)
- Compliance: EN/IEC 60947-5-5, UL 508, JIS C 4520, CSA C22.2 No 14
- Overvoltage category: Class II IEC 60536
Buy the Schneider ZB5AV013 – Reliable Pilot Light Head for Industrial Applications
Purchase the Schneider ZB5AV013 pilot light head online now for reliable, high-protection LED signaling in industrial control systems. This round, white unit with a plain lens offers IP67 protection, suitable for demanding environments. Easy to install with 22mm mounting diameter, it withstands high-pressure washing at 7000000 Pa, and operates across -40°C to 70°C. Perfect for automation panels, it complies with standards like IEC 60947-5-5 and UL 508, ensuring long-term visibility and durability in your industrial setups.
Get Schneider ZB5AV013 today—built for industrial durability and long-lasting signaling performance.
