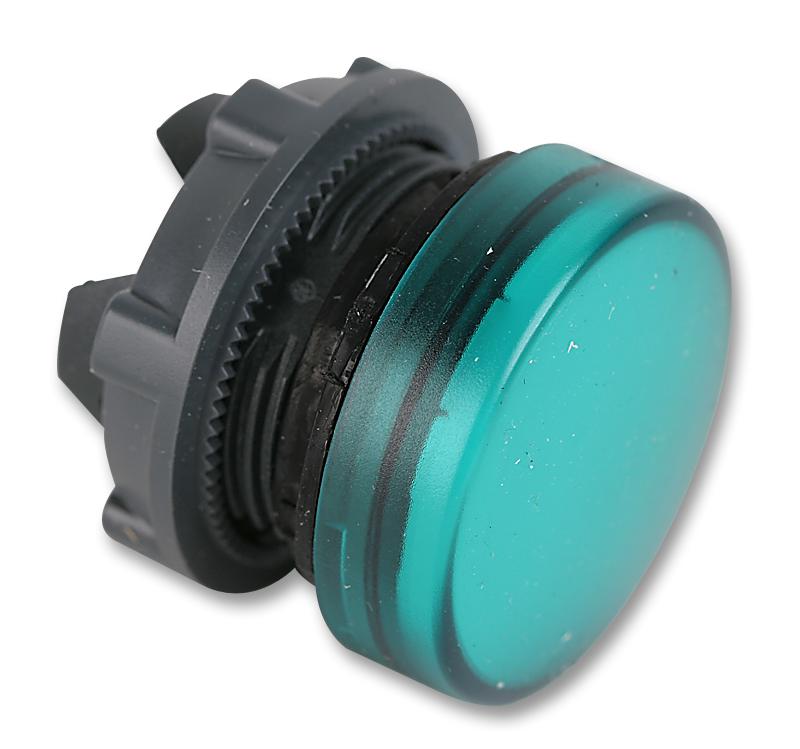

Schneider Electric ZB5AV033 Pilot Light
The ZB5AV033 is a green pilot light head with a plain lens designed for integral LED signaling. It features a round signaling unit head with a 22mm mounting diameter, IP67/IP66 protection, and withstands high-pressure washer resistance up to 7,000,000 Pa. Suitable for industrial applications, it conforms to multiple safety standards including UL 508 and CSA C22.2 No 14. It operates reliably within -40°C to 70°C ambient temperature and complies with IEC vibration and shock resistance requirements, ensuring durability for demanding environments.
Schneider Electric ZB5AV033 Pilot Light Specifications:
- Bezel material: Plastic
- Mounting diameter: 22mm
- Shape of signaling unit head: Round
- Cap/lens colour: Green
- Electrical composition code: P1, P2, PF1, PR1
- Protection degree: IP67, IP66 conforming to IEC 60529
- NEMA protection: 13, 4X
- Resistance to high pressure washer: 7,000,000 Pa at 55°C, distance: 0.1m
- IK degree of protection: IKO5 conforming to IEC 50102
- Ambient temperature for operation: -40°C to 70°C
- Vibration resistance: 5 gn (2-500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms) conforming to IEC 60068-2-27
- Standards compliance: UL 508, CSA C22.2 No 14, JIS C 4520, EN/IEC 60947
- Dimensions: CAD overall width 29mm, height 29mm, depth 31mm
- Weight: 0.017 kg
- Mounting and clearance: 22.5mm recommended cut-out, panel thickness minimum 1.6mm, tightening torque 0.6 N·m
Buy the Schneider ZB5AV033 – Reliable Pilot Light for Industrial Applications
Purchase the Schneider Pilot Light ZB5AV033 online today to ensure reliable and efficient signaling in your industrial equipment. Featuring IP67/IP66 protection, it is ideal for hazardous environments with high-pressure washers and temperature variations. Its round green LED head has a 22mm mounting diameter suitable for panel installation. Built to meet industry standards, it withstands shocks, vibrations, and high-pressure cleaning, making it a durable choice for control systems requiring clear visual signals. Get yours now for hassle-free integration and dependable operation.
Order your Schneider Series ZB5AV033 pilot light today and enhance your control panels with its durable, high-quality LED signaling solution.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AV033?
You can click on the BUY or RFQ button to purchase ZB5AV033 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AV033?
You can download the ZB5AV033 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AV033?
Schneider Electric
