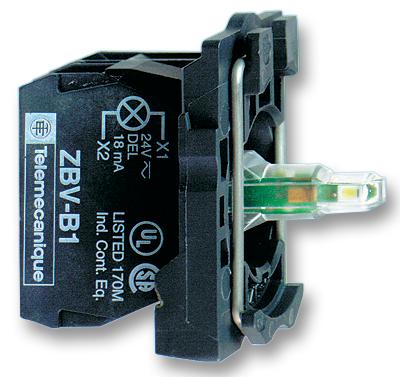

Schneider Electric ZB5AVB3 LED indicator light
The ZB5AVB3 is a green LED light block with a body and fixing collar made of plastic, designed for industrial signaling applications. This steady signaling device operates at 24V AC/DC with a rated insulation voltage of 600V and features screw clamp terminals conforming to EN 60947-1. Its compact dimensions are 30 mm wide, 42 mm high, and 32 mm deep, with a service life of 100,000 hours at 25°C. It withstands shocks up to 50 gn and vibrations of 5 gn, making it highly durable in industrial environments. Certifications include UL, CSA, BV, DNV, RINA, and Lloyds Register, ensuring safety and compliance.
Schneider Electric ZB5AVB3 LED indicator light Specifications:
- Dimensions: Width 30 mm, Height 42 mm, Depth 32 mm
- Light source: Protected LED, Green colour
- Rated supply voltage: 24 V AC/DC, supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
- Current consumption: 18mA
- Service life: 100,000 hours at 25°C
- Insulation voltage: 600 V (pollution degree 3)
- Impulsive withstand voltage: 6 kV
- Tightening torque: 0.8-1.2 N·m
- Connections: Screw clamp terminals >= 0.22 mm² without cable end, <= 1.5 mm² with cable end
- Protection class: Class II conforming to IEC 60536
- Environmental rating: Suitable for storage -40°C to +70°C, operation -25°C to +70°C
- Vibration resistance: 5 gn, Shock resistance: 50 gn for 11 ms
- Electromagnetic compatibility: IEC 61000-4-5, IEC 61000-4-3
- Certifications: UL, CSA, BV, DNV, RINA, Lloyds register
- Standards: EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520
Buy the Schneider Electric ZB5AVB3 – Reliable Green LED Indicator for Industrial Applications
Enhance your industrial control panels with the Schneider Electric ZB5AVB3 LED indicator light. Featuring a durable plastic body, 24V operation, and certified safety standards, this green LED provides clear steady signaling in demanding environments. Its compact size of 30 mm width and 42 mm height allows easy installation on panels, while its long service life of 100,000 hours ensures dependable operation. Suitable for applications requiring robust, high-performance indicators, it complies with UL, CSA, and IEC standards, making it the ideal choice for industrial automation and control systems.
Order your Schneider Electric ZB5AVB3 green LED signaling device today and enhance your control system with reliable industrial lighting solutions.
