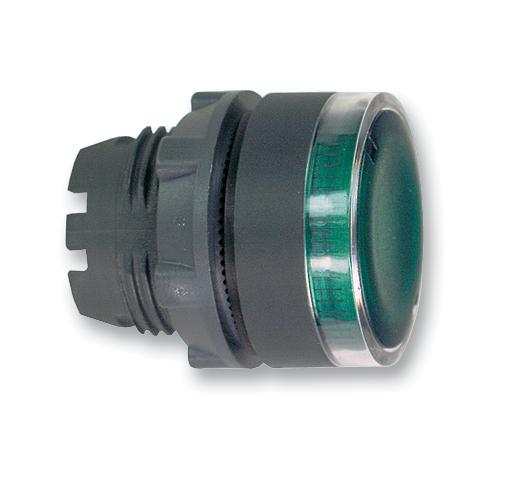

Schneider Electric ZB5AW33 Pushbutton Switch
The green flush illuminated pushbutton head ZB5AW33 is designed for industrial control panels, featuring a spring return operator, round shape, and a 22mm mounting diameter. It offers high resistance to high-pressure washing of up to 7,000,000 Pa, vibration resistance of 5 gn, and shock resistance of 30 to 50 gn. Certified for IP66/IP67/IP69 protection standards, it is suitable for harsh environments with operating temperatures ranging from -40°C to 55°C and storage from -40°C to 70°C. Its durable construction ensures long service life with 10 million mechanical cycles, making it ideal for demanding automation applications.
Schneider Electric ZB5AW33 Pushbutton Switch Specifications:
- Range of product: Harmony XB5
- Device short name: ZB5
- Bezel material: Plastic
- Mounting diameter: 22mm
- Shape of signaling unit head: Round
- Type of operator: Spring return
- Operator profile: Green flush unmarked
- With plain lens
- CAD overall width: 29mm
- CAD overall height: 29mm
- CAD overall depth: 32mm
- Product weight: 0.018 kg
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Mechanical durability: 10,000,000 cycles
- Ambient air temperature for storage: -40°C to 70°C
- Ambient air temperature for operation: -40°C to 55°C
- Class of protection against electric shock: Class II IEC 60536
- Overvoltage category: Class II IEC 60536
- IP degree of protection: IP66, IP67, IP69, IP69K
- NEMA degree of protection: NEMA 13, NEMA 4X
- IK degree of protection: IK05 EN 50102
- Standards: UL 508, GB 14048.5, JIS C 4520, IEC 60947 series, CSA
- Vibration resistance: 5 gn IEC 60068-2-6
- Shock resistance: 30-50 gn IEC 60068-2-27
- Warranty period: 18 months
Buy the Schneider ZB5AW33 – Reliable Pushbutton for Industrial Applications
Purchase the Schneider ZB5AW33 green illuminated pushbutton today online to ensure reliable operation in demanding environments. Its IP66/IP67/IP69 protection, high resistance to pressure washing, vibration, and shocks make it ideal for industrial control systems. Designed with a 22mm mounting diameter and a spring return operator, this durable pushbutton is built for long-lasting performance. With a sleek round shape and plain lens, it offers easy installation and visibility, providing a trusted solution for automation and machinery control in harsh conditions.
Order your Schneider Series ZB5AW33 high-pressure resistant pushbutton today and enhance your control panels with dependable durability for harsh industrial environments.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AW33?
You can click on the BUY or RFQ button to purchase ZB5AW33 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AW33?
You can download the ZB5AW33 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AW33?
Schneider Electric
