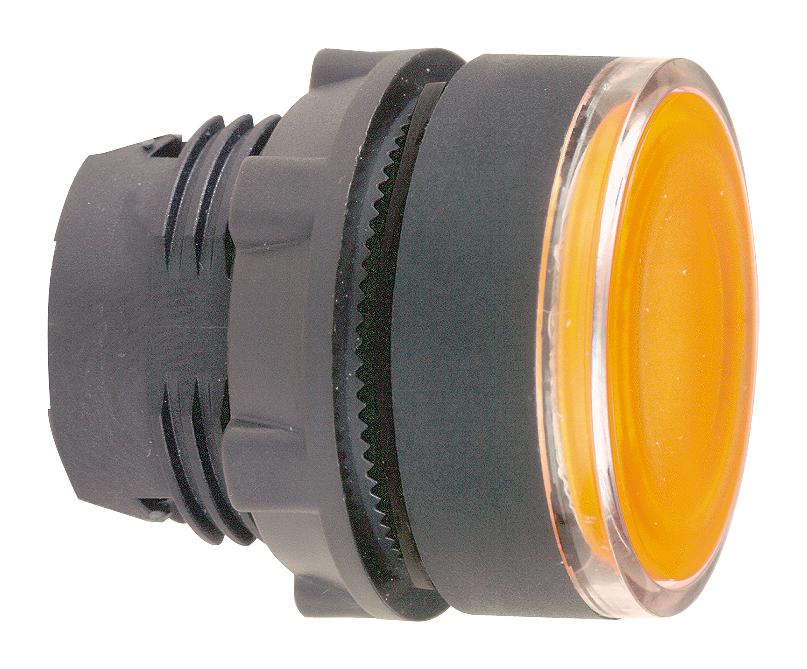

Schneider Electric ZB5AW353 Industrial Pushbutton
The ZB5AW353 is an orange flush illuminated pushbutton head featuring spring return for integral LED functionality. Designed for 22mm mounting, it has a round shape with a standard head type and plain lens operator profile. Built with durable plastic bezel, it offers high resistance to high-pressure washing up to 7,000,000 Pa at 55°C and withstands 10 million mechanical cycles. Suitable for environments with IP66/IP67/IP69 degrees of protection, it complies with multiple international standards, including UL, CSA, and IEC. This product is ideal for industrial control panels requiring reliable signaling with easy installation.
Schneider Electric ZB5AW353 Industrial Pushbutton Specifications:
- Shape: Round
- Head type: Standard
- Operator profile: Plain lens, spring return
- Bezel material: Plastic
- Mounting diameter: 22 mm
- Overall width: 29 mm
- Overall height: 29 mm
- Overall depth: 30 mm
- Product weight: 0.017 kg
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Mechanical durability: 10,000,000 cycles
- IP protection: IP66, IP67, IP69
- Vibration resistance: 5 gn
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Standards: UL, CSA, IEC 60947-5-4, JIS C 4520, EN/IEC 60947-5-1
- Certifications: UL listed, Lloyd's Register, BV, RINA, DNV
- Ambient temperature: -40°C to +70°C
- Overvoltage category: Class II
Buy the Schneider Series XB5 ZB5AW353: Orange Flush Illuminated Pushbutton Head
Order the Schneider ZB5AW353 industrial pushbutton online today for reliable and durable signaling solutions. Designed with a sturdy plastic bezel, this 22mm round pushbutton features high-pressure wash resistance up to 7,000,000 Pa and withstands extensive mechanical cycles, making it ideal for harsh environments. Its IP69 rated protection ensures safety against dust and water ingress. Easy to install and compatible with integral LED systems, this pushbutton provides clear visual indication with a plain lens, enhancing operational safety and efficiency for industrial control panels.
Get Schneider ZB5AW353 today—built for industrial control panel signaling and high durability.
