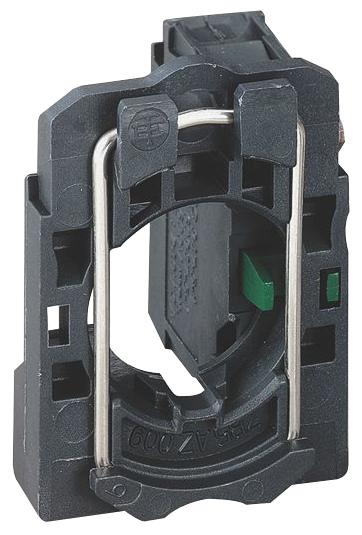

Schneider Electric ZB5AZ102 Industrial Contact Block
The ZB5AZ102 is a durable, single NC contact block designed for industrial automation. It features a robust plastic body, fixing collar, and silver alloy contacts for reliable switching. Equipped with screw clamp terminals, it ensures secure wiring connections and adheres to IP20 protection standards. Rated for 5 million mechanical cycles, it is suitable for demanding applications across industrial, aerospace, and automotive sectors. The contact operation is slow-break, with a total travel of 4.3 mm, offering excellent performance in control systems requiring high durability and precision.
Schneider Electric ZB5AZ102 Industrial Contact Block Specifications:
- Body Material: Plastic
- Contact Type: 1NC, normally closed
- Contact Material: Silver alloy (Ag/Ni)
- Connection Terminals: Screw clamp terminals, <= 2 x 1.5 mm² with cable, >= 1 x 0.22 mm² without cable end EN 60947-1
- Protection Rating: IP20
- Mechanical Durability: 5,000,000 cycles
- Operating Travel: 4.3 mm (total travel), 1.5 mm (operating travel)
- Operating Force: 2 N
- Rated Insulation Voltage: 600 V
- Impulse Withstand Voltage: 6 kV
- Rated Operational Current: 3 A at 240 V AC-15, 6 A at 120 V AC-15, 0.1 A at 600 V DC-13
- AC/DC Durability: 1,000,000 cycles for AC and DC applications
- Tightening Torque: 0.8 to 1.2 N·m
- Standard Compliance: UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1
- Vibration Resistance: 5 gn
- Shock Resistance: 30 to 50 gn
- Ambient Temperature: -40°C to +70°C
- Protection Degree: IP20
Buy the Schneider Series XB5 Switch Contact Block: ZB5AZ102
The Schneider Series XB5 contact block ZB5AZ102 offers reliable, long-lasting performance for industrial automation and control projects. Designed with a durable plastic body and silver alloy contacts, it ensures dependable switching operations in demanding environments. Features screw clamp terminals for secure wiring, an IP20 rating for protection, and rated for 5 million cycles, making it ideal for applications across manufacturing, aerospace, automotive, and control systems. Purchase online now to upgrade your automation solutions efficiently and confidently.
Order your Schneider Series XB5 ZB5AZ102 contact block today and enhance your industrial control systems with dependable, high-performance switching components.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AZ102?
You can click on the BUY or RFQ button to purchase ZB5AZ102 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AZ102?
You can download the ZB5AZ102 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AZ102?
Schneider Electric
