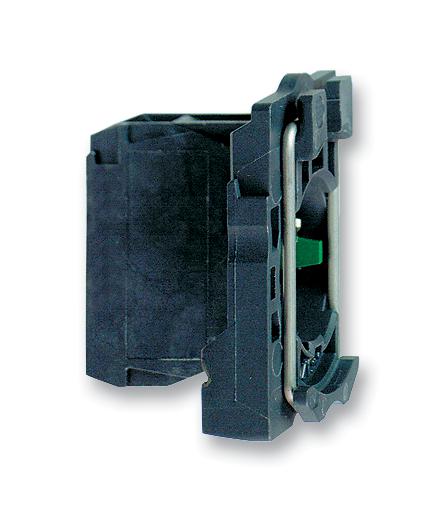

Schneider Electric ZB5AZ103 industrial contact block
The ZB5AZ103 is a single contact block featuring a body and fixing collar made of plastic, designed for industrial control and automation applications. It includes a 2NO contact configuration with slow-break operation and screw clamp terminals capable of handling wires from 0.22 mm² to 1.5 mm². The contact block has a durable silver alloy contact material, with 5 million mechanical cycles, and complies with standards such as EN/IEC 60947-1 and UL. Suitable for integration into control panels requiring reliable, high durability switching components.
Schneider Electric ZB5AZ103 industrial contact block Specifications:
- Material: Plastic body and fixing collar
- Contacts: 2NO, slow-break operation
- Connection Terminals: Screw clamp, 0.22-1.5 mm² wire range
- Mechanical Durability: 5,000,000 cycles
- Overall Dimensions: Width 30mm, Height 42mm, Depth 32mm
- Operating Travel: 2.6 mm (NO), total 4.3 mm
- Contact Material: Silver alloy (Ag/Ni)
- Tightening Torque: 0.8-1.2 N.m
- Rated Insulation Voltage: 600 V
- Rated Impulse Withstand Voltage: 6kV
- Short Circuit Protection: 10 A fuse
- Ambient Temperature Range: -40°C to +70°C for storage, -25°C to +70°C for operation
- Protection Level: IP20
- Standards: EN/IEC 60947-1, UL, CSA, IEC 60947-5-1, and more
Buy the Harmony XB5 ZB5AZ103 – Reliable Contact Block for Industrial Applications
Purchase the Harmony XB5 ZB5AZ103 contact block online today for your control and automation projects. Its robust design ensures long-lasting operation with a silver alloy contact system rated for millions of cycles. Easy to install with screw clamp terminals supporting wires from 0.22 mm² to 1.5 mm². Compliant with international standards including EN and UL, it provides reliable switching performance in varied industrial environments. Ensure your control panels are equipped with high-durability components—order now for fast, secure online delivery.
Order your Harmony XB5 ZB5AZ103 contact block today and enhance your control panels with a durable, high-performance switching component.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AZ103?
You can click on the BUY or RFQ button to purchase ZB5AZ103 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AZ103?
You can download the ZB5AZ103 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AZ103?
Schneider Electric
