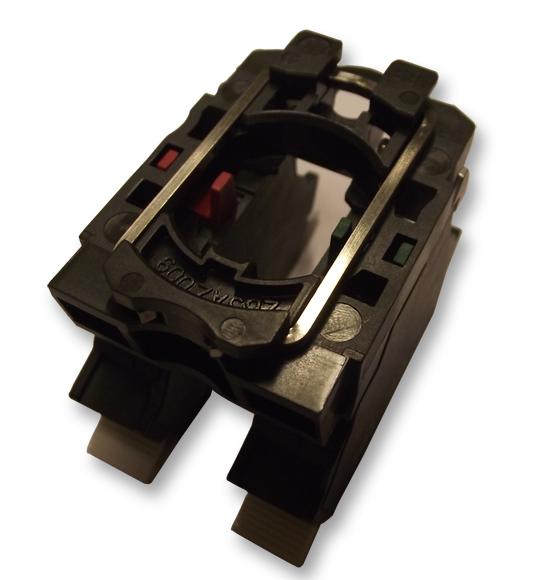

Schneider Electric ZB5AZ1055 Industrial Contact Block
The ZB5AZ1055 is a comprehensive contact block designed for industrial automation systems, featuring a sturdy body and fixing collar made from durable plastic. It includes a 1NO+1NC contact configuration with slow-break operation and silver alloy contacts, conforming to EN/IEC standards. With mechanical durability of 5 million cycles, it supports positive opening in accordance with IEC 60947-5-1. Suitable for panel mounting via screw clamp terminals or plug-in connectors, it benefits from environmental resistance, certified by UL, CSA, RINA, and others, ensuring reliable long-term performance.
Schneider Electric ZB5AZ1055 Industrial Contact Block Specifications:
- Dimensions: Width 30mm, Height 42mm, Depth 32mm
- Contact type: 1NO+1NC, slow-break operation
- Contact material: Silver alloy (Ag/Ni)
- Mechanical durability: 5,000,000 cycles
- Operating travel: 1.5 mm (NC), 2.6 mm (NO), total 4.3 mm
- Connection: Screw clamp terminals or plug-in connectors
- Mounting: Panel cut-out suitable for 22.5 mm diameter
- Environmental ratings: IP20, -40°C to +70°C storage, -25°C to +70°C operation
- Standards: EN/IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, UL 508
- Certifications: UL, CSA, RINA, DNV, GL, Lloyds register, BV
- Vibration resistance: 5 gn (2-500 Hz)
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
Buy the Schneider Series XB5 ZB5AZ1055: Single Contact Block
Enhance your automation setup by ordering the Schneider Series XB5 ZB5AZ1055 contact block online today. This reliable device features dual contacts, robust silver alloy material, and conforms to multiple international standards, ensuring safety and durability. With easy panel mounting options via screw clamp terminals or plug-in connectors, it's suitable for various industrial applications. Its high mechanical lifespan of 5 million cycles and certifications from UL, CSA, and other agencies make it an ideal choice for long-term, dependable operation. Buy now for seamless integration into your control systems.
Order your Schneider Series XB5 ZB5AZ1055 contact block today and enhance the reliability of your automation systems with durable and certified contacts.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5AZ1055?
You can click on the BUY or RFQ button to purchase ZB5AZ1055 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5AZ1055?
You can download the ZB5AZ1055 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5AZ1055?
Schneider Electric
