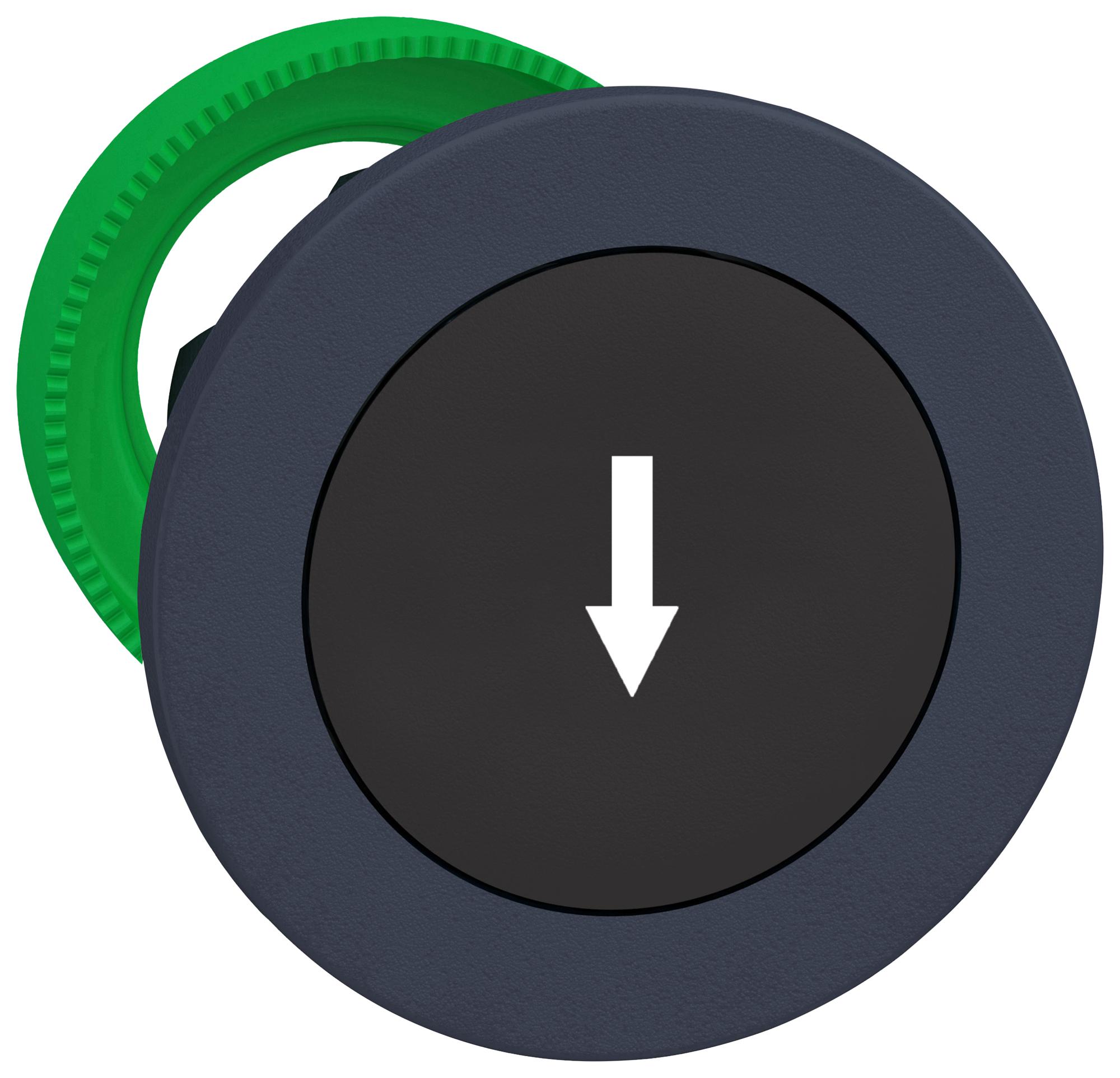

Schneider-Electric ZB5FA335 Pushbutton Head
The ZB5FA335 is a round, flush-mounted pushbutton head with a black finish and white arrow marking, designed for easy integration into control panels. It features durable construction with a mechanical lifespan of 10 million cycles, ensuring reliable operation over extended periods. Suitable for various industrial environments, it complies with IP66, IP67, IP69, and IP69K standards, offering high protection against dust, water, and high-pressure cleaning. The device operates within a temperature range of -40°C to +70°C and is certified UL, CSA, and CE, making it ideal for demanding automation and control applications.
Schneider-Electric ZB5FA335 Pushbutton Head Specifications:
- Mounting diameter: 30.5 mm
- Shape: Round
- Head type: Built-in-flush
- Color: Black with white arrow
- Overall width: 37 mm
- Overall height: 37 mm
- Overall depth: 30 mm
- Weight: 0.03 kg
- Mechanical durability: 10,000,000 cycles
- Operating temperature: -40°C to +70°C
- Storage temperature: -40°C to +70°C
- Ingress protection: IP66, IP67, IP69, IP69K
- Impact resistance: 30 gn (18 ms), 50 gn (11 ms), IEC 60068-2-27
- Vibration resistance: 5 gn (10-500 Hz), 2 mm peak-to-peak (2-10 Hz)
- Resistance to high pressure washer: 7,000,000 Pa at 55°C
- Certifications: UL, CSA, CE, China RoHS
- Standards: IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C 4520
- Environmental: REACH compliant, RoHS, toxic heavy metal free, mercury free
- Warranty: 18 months
Buy the Harmony XB5 Series Pushbutton: ZB5FA335
Order the Harmony XB5 ZB5FA335 pushbutton head online today to ensure your control panels are equipped with a durable, high-protection component. This round, flush-mounted device features IP66, IP67, IP69, and IP69K ratings, providing optimal protection against dust, water, and high-pressure cleaning. Designed for demanding industrial environments, it withstands over 10 million operational cycles and operates effectively within -40°C to +70°C. Certified with UL, CSA, and CE, this part guarantees safety, longevity, and performance in automation systems.
Buy Harmony XB5 ZB5FA335 now and experience unmatched reliability and performance in industrial control applications.
