Schneider Electric ZB5FA9 Pushbutton head

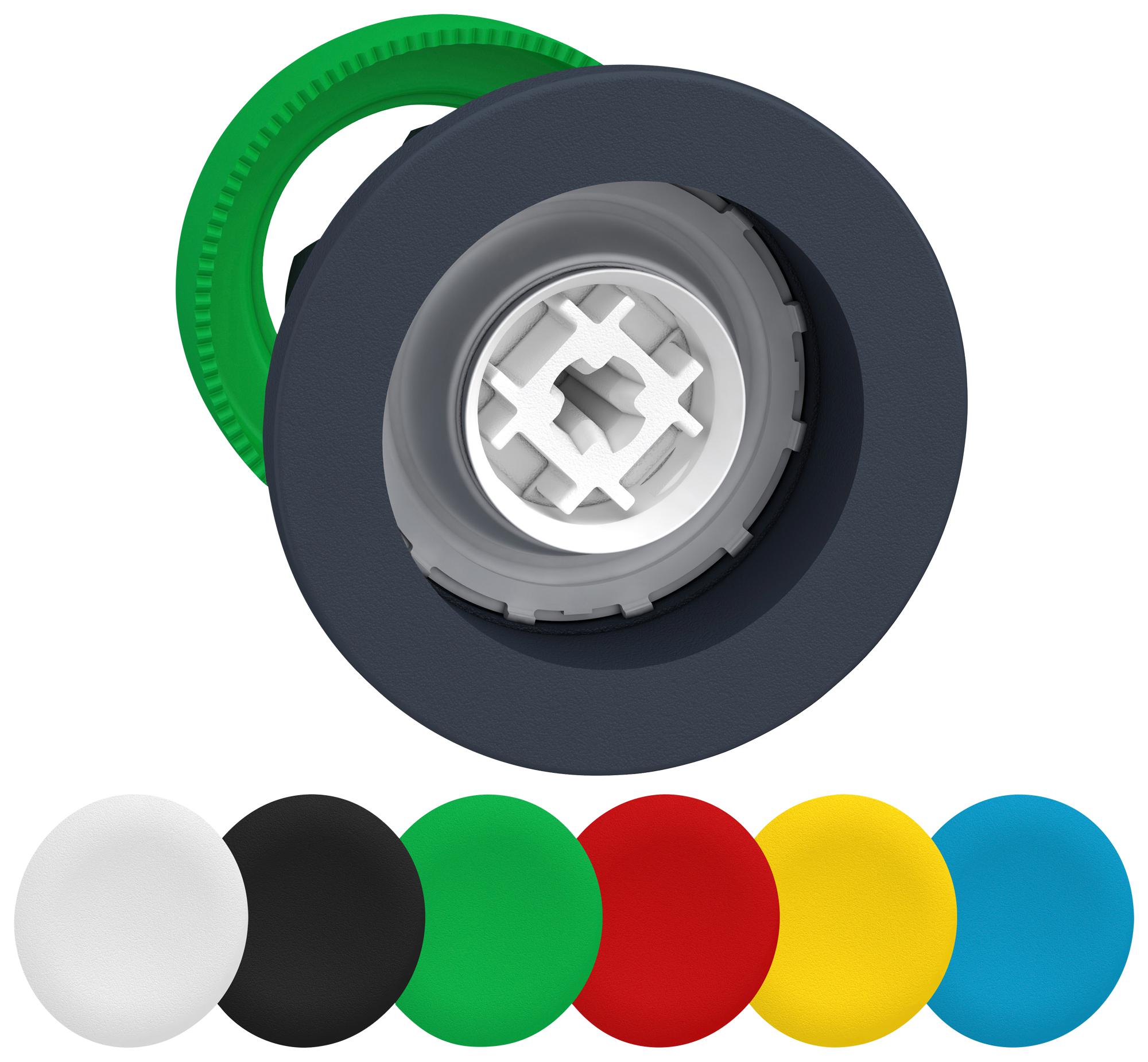

The ZB5FA9 is a flush mounted pushbutton head featuring a set of six color caps for versatile signaling in industrial automation. Designed for durability, it withstands 10 million cycles and is suitable for harsh environments with IP66/IP67/IP69 ratings and resistance to high-pressure washings. Its round shape and compact dimensions of 1.46 in height and width make it ideal for control panels. Compatible with various mounting options and environments, this non-illuminated pushbutton offers reliable operation with a spring return operator and a protective dark grey plastic bezel. Certified by UL, CSA, and other standards, it ensures safety and longevity.
Schneider Electric ZB5FA9 Pushbutton head Specifications:
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.46 in (37 mm)
- Overall height: 1.46 in (37 mm)
- Overall depth: 1.18 in (30 mm)
- Weight: 0.07 Ib (0.03 kg)
- Mechanical durability: 10,000,000 cycles
- Ingress protection: IP66, IP67, IP69K
- Enclosure material: Dark grey plastic
- Environmental ratings: -40°F to 158°F (-40°C to 70°C)
- Shock resistance: 30 gn and 50 gn IEC 60068-2-27
- Vibration resistance: 5 gn IEC 60068-2-6
- Overvoltage category: Class II IEC 60536
- Certifications: UL Listed, CSA, BV, RINA, DNV, GL
- Standards compliance: IEC 60947 series, UL 508, JIS C8201-5-1
- Protection class: Type 13, 12, 4, 4X UL E
- Ambient air temperature: -40°C to 70°C
Buy the Schneider Electric ZB5FA9 – Reliable Signal Pushbutton for Industrial Applications
Enhance your industrial control panels with the Schneider Electric ZB5FA9 pushbutton head, featuring six-color caps for signaling versatility. Its durable plastic construction withstands 10 million cycles, ensuring long-term reliability. Designed for harsh environments, it offers IP66/IP67/IP69 protection against dust, water, and high-pressure washings. Compact and easy to install with a 1.20-inch mounting diameter, this non-illuminated pushbutton is suitable for various automation applications. Certified by UL, CSA, and other international standards, it guarantees safety, durability, and performance for demanding industrial settings.
Order your Schneider Electric ZB5FA9 flush mounted pushbutton with six-color caps today and enhance your control panel reliability with this durable, industrial-grade component.
Frequently Asked Questions
Where can I buy Schneider Electric ZB5FA9?
You can click on the BUY or RFQ button to purchase ZB5FA9 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part ZB5FA9?
You can download the ZB5FA9 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of ZB5FA9?
Schneider Electric
