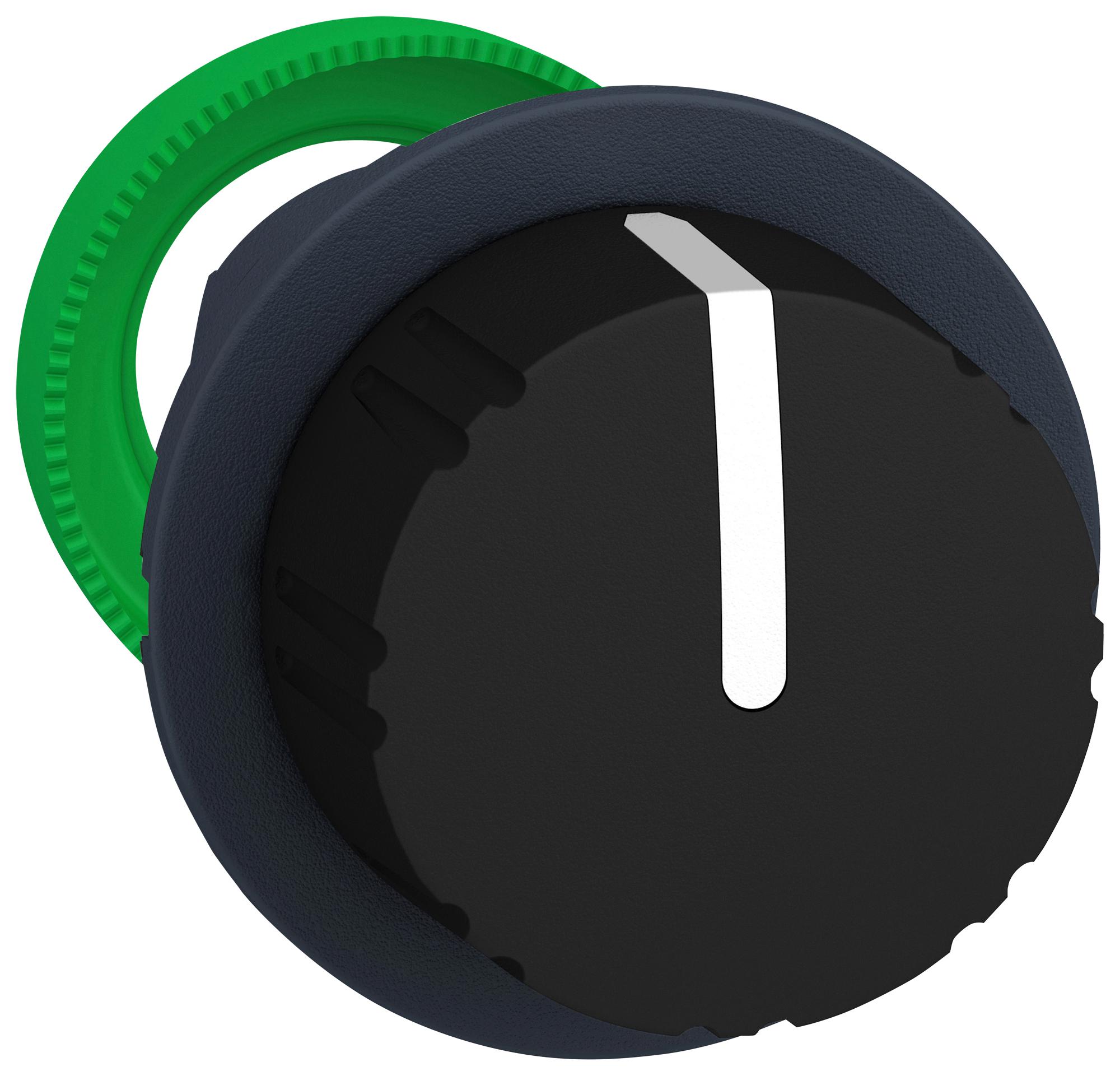

Schneider Electric ZB5FD39 Selector Switch Head
The ZB5FD39 is a flush-mounted black selector switch head featuring a knurled knob with three stay-put positions. Designed for use in control panels, it has a round shape with a 30 mm mounting diameter and a built-in-flush head type. It offers high durability with up to 1,000,000 mechanical cycles and is rated IP69 for optimal protection against dust and water. Its robust construction meets IEC and UL standards, making it suitable for demanding industrial environments where reliability and user safety are critical.
Schneider Electric ZB5FD39 Selector Switch Head Specifications:
- Mounting Diameter: 30 mm (1.18 in)
- Shape: Round
- Head Type: Built-in-flush
- Operator Profile: Black knurled knob
- Operator Positions: 3 positions ±45°
- Mechanical Durability: 1,000,000 cycles
- IP Degree of Protection: IP69K, IP66, IP67
- Ambient Temperature for Storage and Operation: -40°C to +70°C
- Certifications: UL Listed, CSA, RINA, BV, GL, Lloyds
- Resistance to High Pressure Washer: 7,000,000 Pa at 55°C
- Vibration Resistance: 5 gn (Hz 2-500)
- Shock Resistance: 30 gn (18ms), 50 gn (11ms)
Buy the Schneider Series ZB5 Selector Switch: ZB5FD39
Order the Schneider Series ZB5FD39 selector switch head online today and enhance your control panel with reliable, high protection, and durable switching solutions. This high-quality, flush-mounted black switch features a 3-position knurled knob, IP69K rating, and withstands over a million cycles. Perfect for safety-critical environments, it meets international standards like IEC and UL, ensuring compliance and safety while delivering consistent performance in demanding industrial settings. Purchase online now for quick delivery and top-tier control components.
Buy Schneider ZB5FD39 now and experience unmatched durability with high IP protection for industrial control applications.
